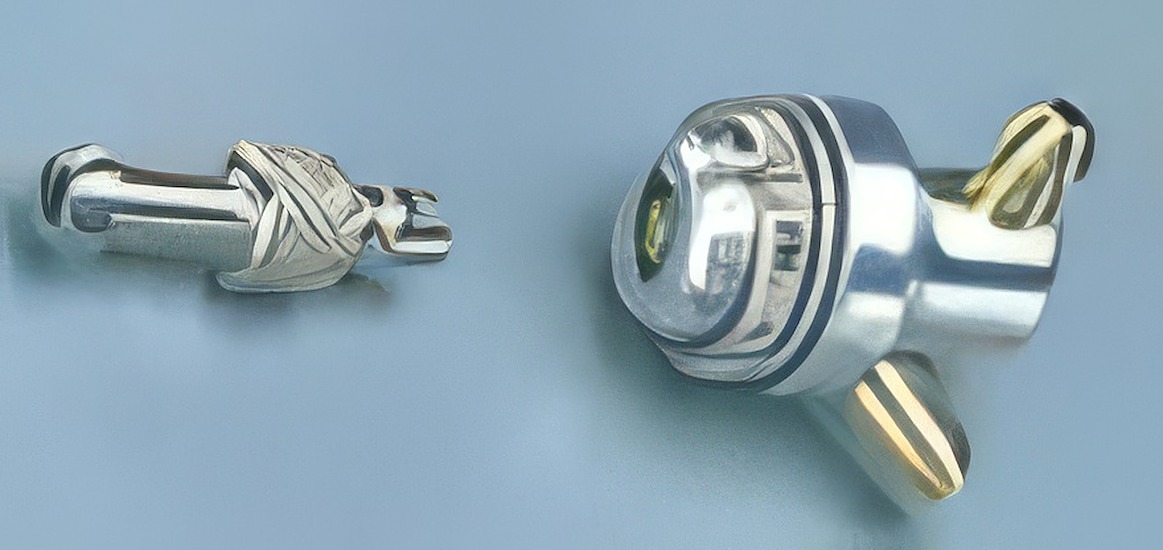

Du-Bro fuel valve and filler probe fitting. Glow fuel only. Requires 3/8" (6mm) hole in fuse or cowling for mounting. This unit is installed between the tank and the carburetor. When the fueling probe is inserted, the fuel flow to the carb is shut off preventing any flooding of the engine during refueling.
Constructed of two threaded aluminum parts which separate for ease in cleaning. Works for both gas and glo fuels. 130 micron mesh screen filter to filter out the smallest of particles and an o-ring for a positive, no-leak seal. #341 - The Large Scale In-Line Fuel Filter is made for bigger engines that require more fuel filtering capacity.
WORKS WITH GAS & GLO FUEL Use DU-BRO Medium (3/32" ID) or Large (1/8" ID) Silicone (glo) or Tygon (gasoline) tubing.
Dimensions: 1.25" (28.575 mm) L X 9/16" (14.29 mm) W

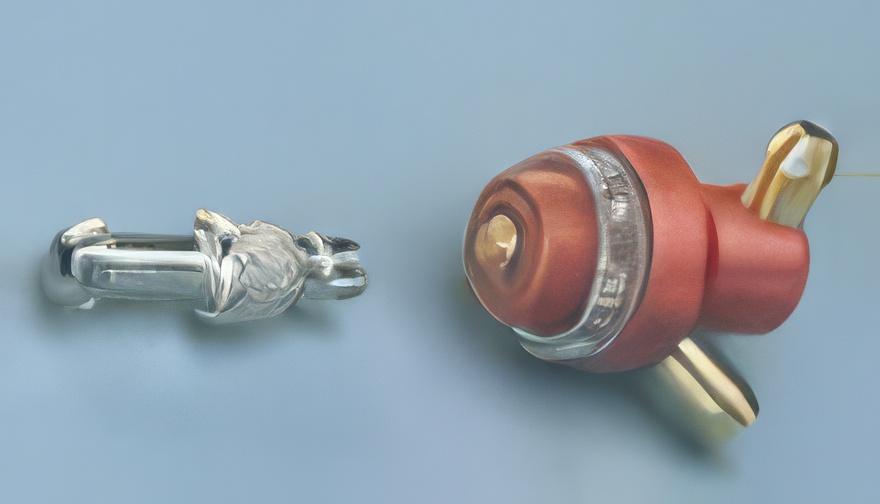

Du-Bro fuel valve and filler probe fitting. Gasoline/Smoke oil only. Requires 3/8" (6mm) hole in fuse or cowling for mounting. This unit is installed between the tank and the carburetor. When the fueling probe is inserted, the fuel flow to the carb is shut off preventing any flooding of the engine during refueling.

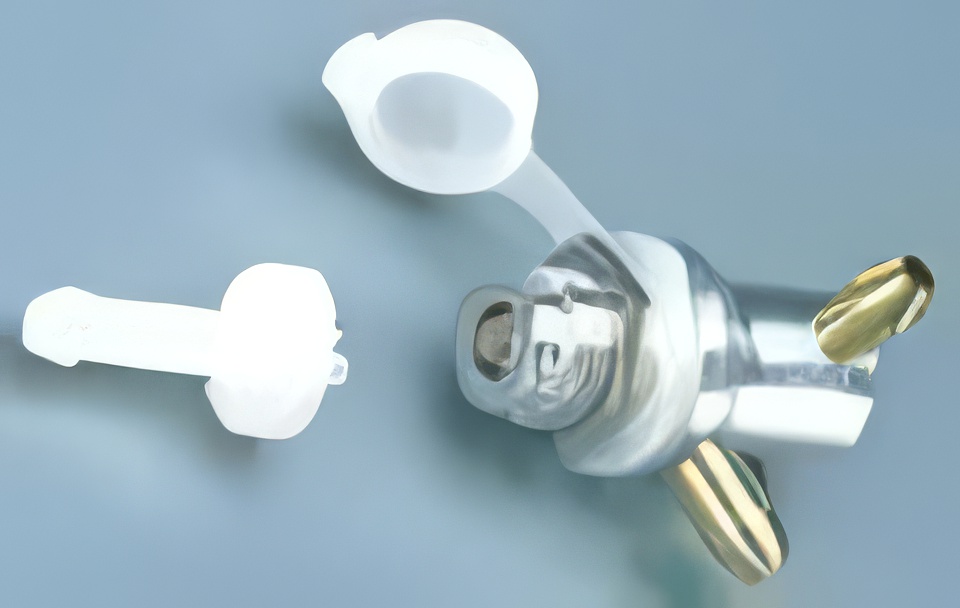

Du-Bro fuel valve and filler probe fitting. Glow fuel only. Requires 1/2" (13mm) hole in fuse or cowling for mounting. This unit is installed between the tank and the carburertor. When the fueling probe is inserted, the fuel flow to the carb is shut off preventing any flooding of the engine during refueling.

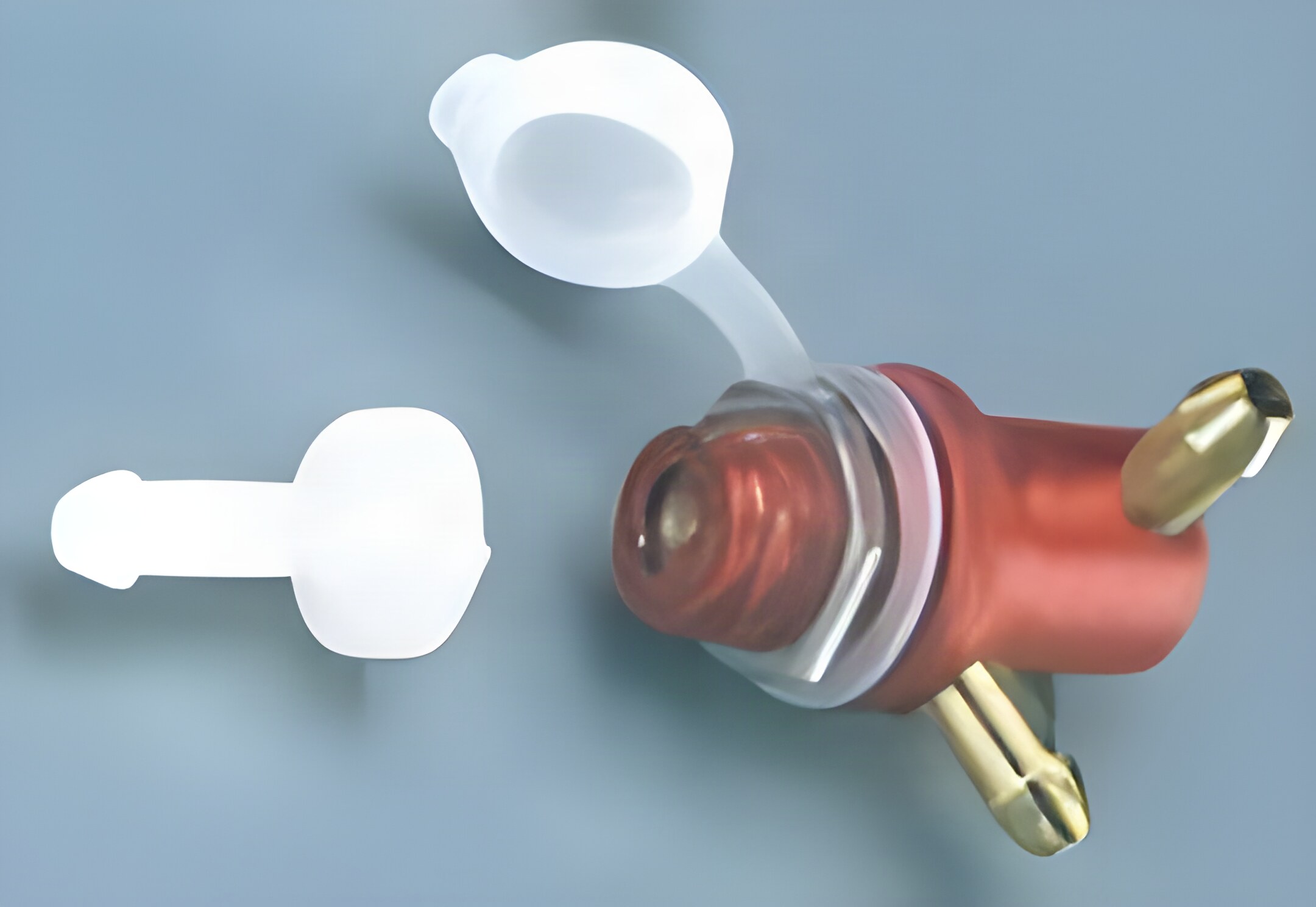

Du-Bro fuel valve and filler probe fitting. Gasoline/Smoke oil and Kerosene fuel only. Requires 1/2" (13mm) hole in fuse or cowling for mounting. This unit is installed between the tank and the carburetor. When the fueling probe is inserted, the fuel flow to the carb is shut off preventing any flooding of the engine during refueling. Large Scale Fueling Valve allows a higher volume of fuel to enter the carburetor and fill your fuel tank faster. Comes complete with fueling probe. All fittings on fuel valve and probe are designed to work with 1/8" (.125" or 3.17mm) ID thru 5/32 (.156" or 4mm) ID tubing.

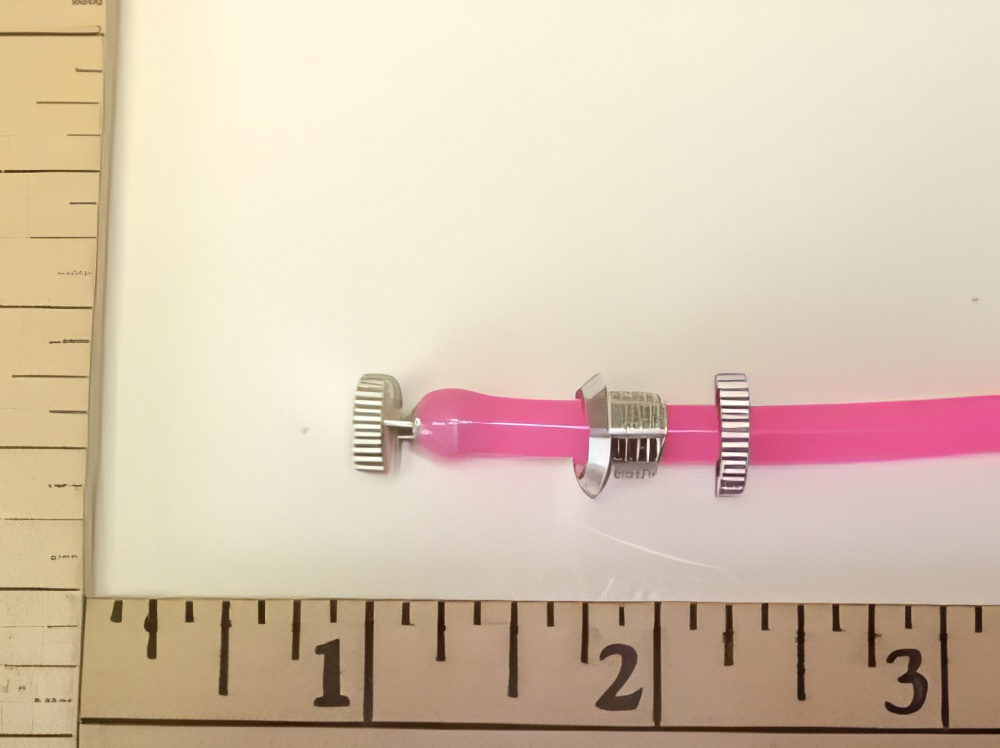

One pack, Radical RC Fuel Fill Dots. Mounts on fuselage side or firewall. Allows fuel line to be pulled from inside fuselage for filling. Plug & push back into dot when fill is complete. One Dot Assembly-three pieces, body, lock nut & line plug. Photo shows assembly configuration on a piece of fuel tubing. Tubing is not included at this price.

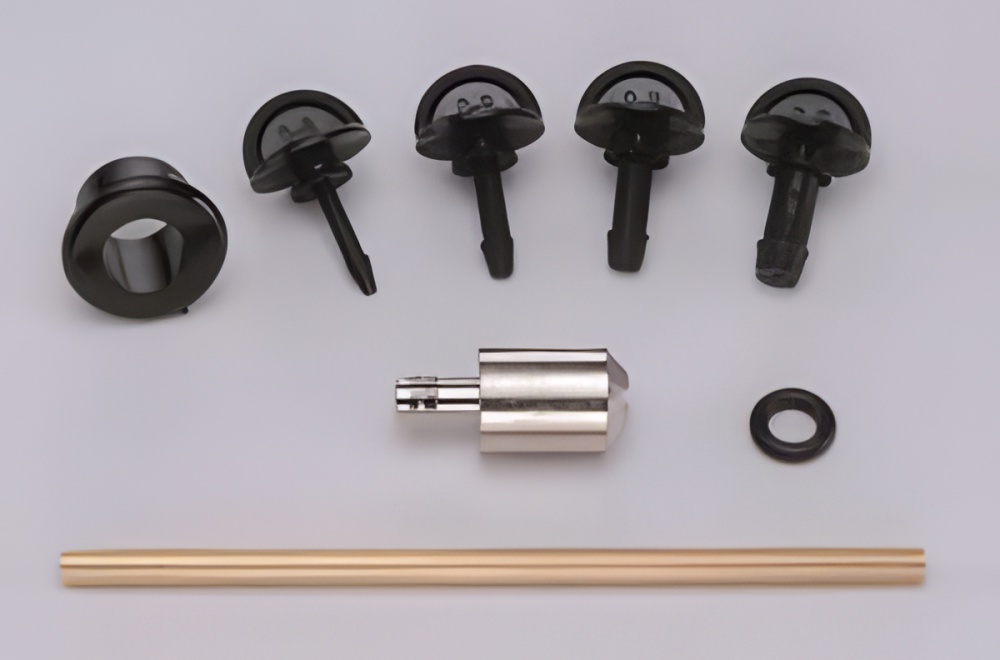

Fill It The Clean, Fast and Inexpensive Way! Now, one fueling system that can be used with 4 different tubing sizes: 1/16", 3/32", 1/8" and 5/32" I.D. Ideal for cowled engines, lightweight, no leaks, and can be used with glo-fuel and gasoline.
The Fill It Fueling System features The Fill It Plug with handy knob for easy removal of fuel line to fill or drain your fuel tank. Comes with housing, 4 Fill It Fuel Line Plugs for different fuel tubing sizes, clunk and fuel tube for third line pick-up.

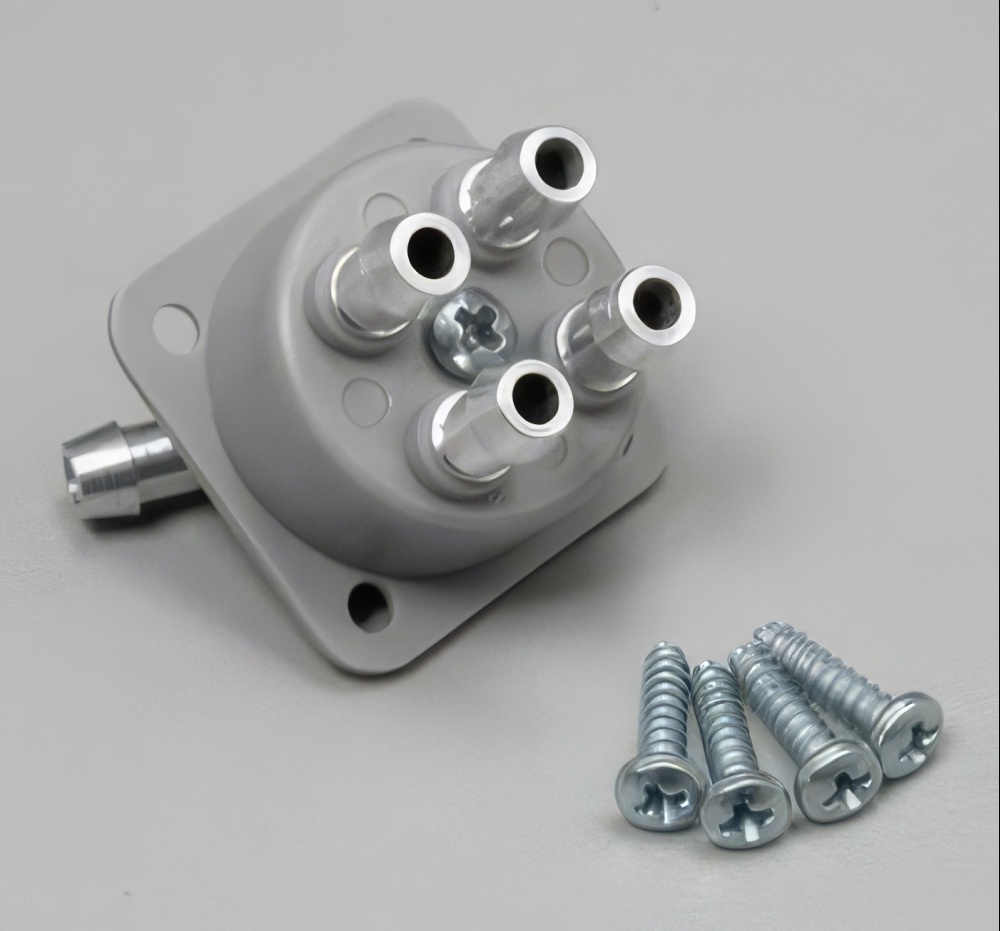

This four-valve fuel switch has replaceable o-rings and fills the same as the Super Fueler, but for use with pressurized tank systems. It's for sport, pattern, and pylon. Safe for use with glow, gas, and smoke fluids.
SKU Number: ROB205
RC Fueling Valves and Fuel Ports
A fueling valve mounted in the fuselage lets you fill and defuel a tank without pulling lines off the engine, which keeps the flight line tidy and the tank plumbing undisturbed. This category collects fueling valves, ports, and probes for glow and gas models.
Fill Valves
The Kwik-Fill Valve is offered in glow and gas versions, with large-scale options for bigger airframes and tanks. Mounted through the cowl or side, a fill valve gives a clean, one-point fueling connection.
Probes and Filters
Fueling probes mate with the valve to move fuel in and out, and Du-Bro replacement probes, including a large-scale version, keep an existing setup working. A Du-Bro Inline Fuel Filter for large-scale use helps keep debris out of the tank and carburetor. Keeping the valve, a matching probe, and a filter together as a set makes clean, repeatable fueling part of the pre-flight routine.
Select the valve, probe, or filter your fuel system needs below.
 "Kwik-Fill Valve Glow")
 "Du-Bro Inline Fuel Filter Large Scale")
 "Du-Bro Kwik-Fill Valve Gas")
 "Kwik-Fill Large Scale Fueling Valve Glow")
 "Du-Bro Replacement Fueling Probe")
 "Replacement Fueling Probe Large Scale")

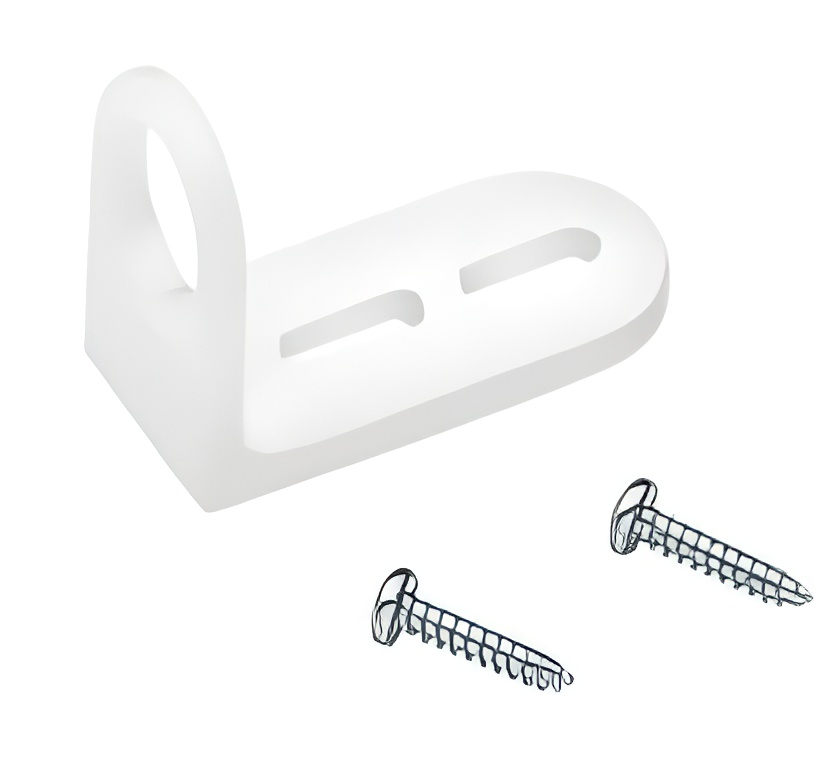

 "Du-Bro Fueling Valve Bracket Large")
 "Du-Bro Fueling Valve Bracket Standard")
 "Kwik-Fill Large Scale Fueling Valve GAS and Smoke Oil")
 "Radical RC Bulkhead Fuel Fill Dot")

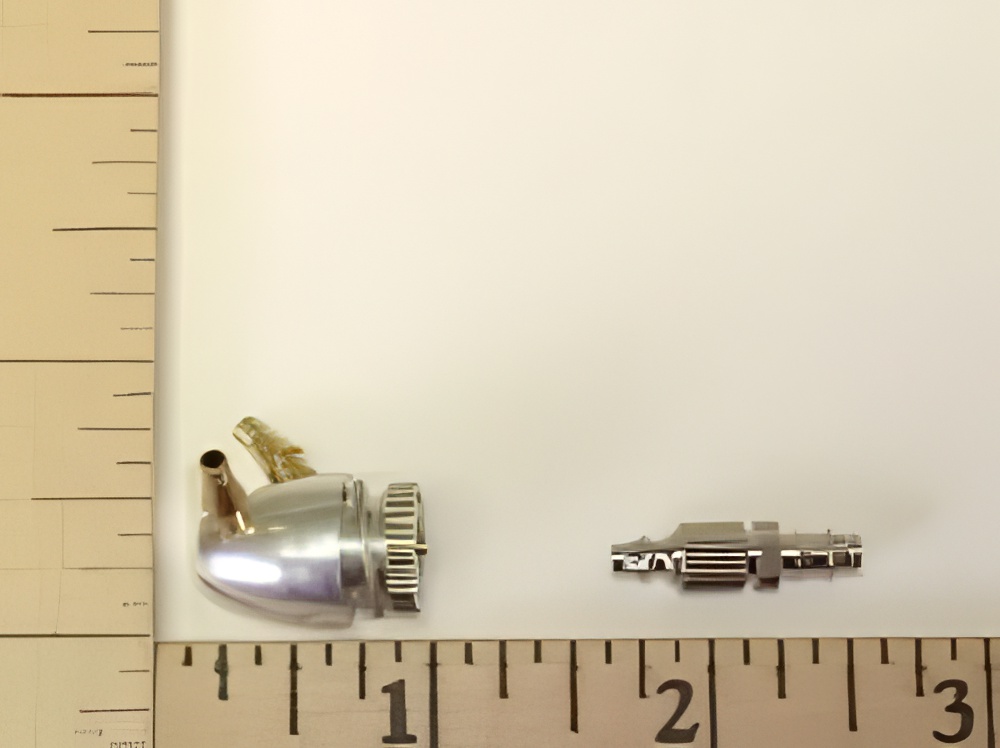

 "Radical RC Bulkhead Fuel Fill Quick Disconnect")
 "Fill It Fuel System by Du-Bro")

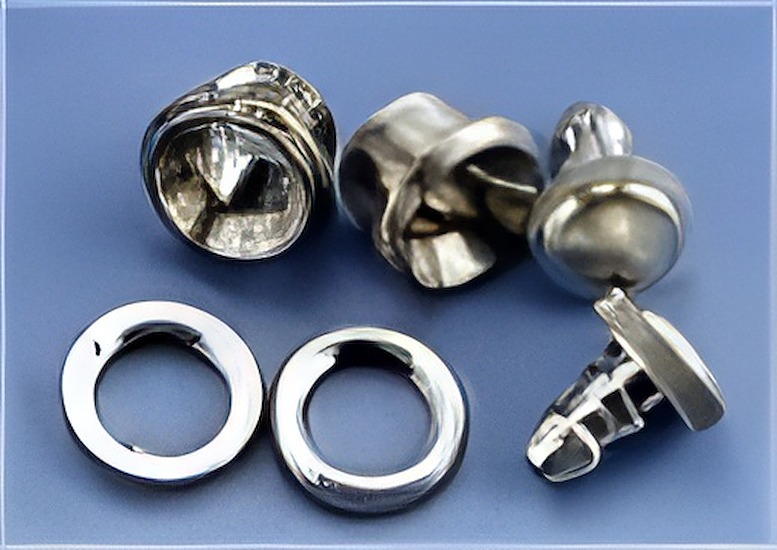

 "MPI Fuel Tubing Mount")

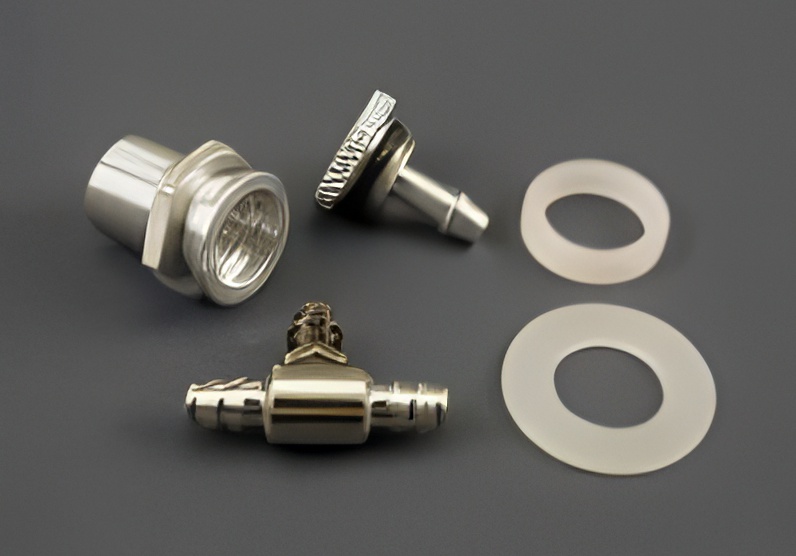

 "MPI Fueler Mount With Tee Fitting")
 "Robart Ultra Fueler")
