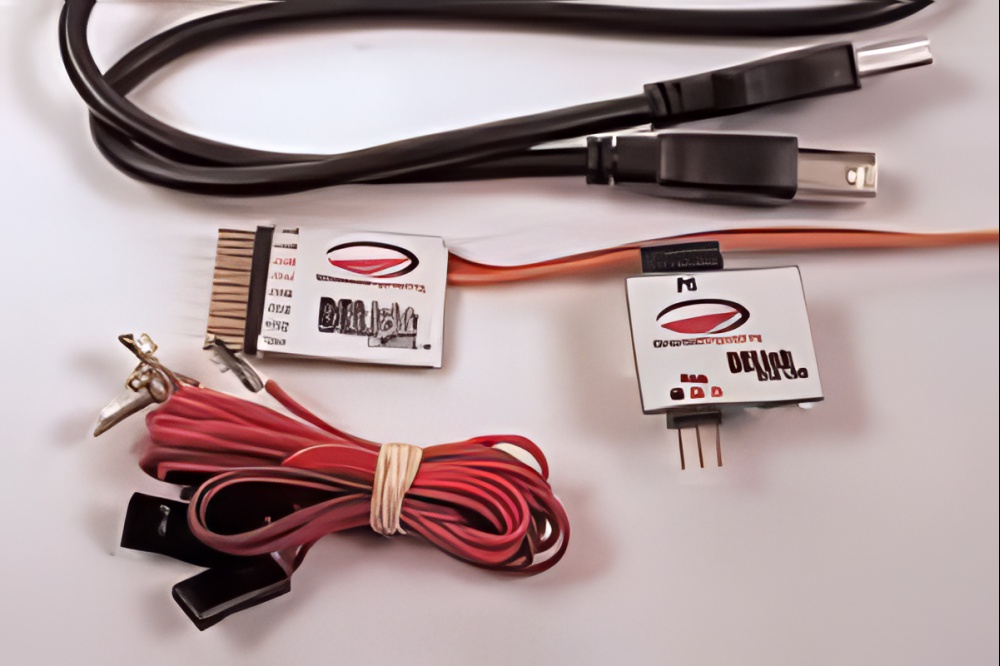

The DELight Starter Kit combines all the components of the DELight programmable lighting system into one package. It consists of a USB programmable lighting controller, software for creating customized lighting sequences, a USB link cable to load the programs and ultra-bright LED lights. Everything you need to create scale, sport or night flying effects for R/C airplanes, cars, robots or special effects is included. See extra lights listed below for images.
The DELink software is easy to use and completely graphical. A simulator allows you to preview and fine-tune your lighting sequences. The software is a free download, so you are welcome to download it before purchasing the system in order to verify that you can achieve the effects you want.
The DELight Ultra Bright LED's are the brightest LED's ever used in an R/C lighting system. They are up to 15 lumens each and can each draw up to 150mA. Not to worry, the DELight controller can handle this level of power, and if you're worried about blinding yourself, the controller has programmable brightness!
Note from Dave: This setup is just cool. If like me you want a night flyer piloted by decoding the lights, this is it. Can be used for all kinds of special effects also. Just about anything you can think of can be made to work with this unit.
The DELight Controller has eight output channels. It contains onboard non-volatile memory to store your programs, and the power electronics required to sequence and dim the LED's according to your command. It is connected to your receiver through any spare channel (or use a Y harness.) The point at which the sequences turn on or change is programmable, so effects such as landing lights are easily accomplished. Two of the programmable channels are even higher powered - up to two amps on/off, and can be used to power things such as glow-wire inverters or bomb drops, in addition to powering LEDs.
Contents: DeLink USB Programming Link USB Cable Controller USB Cable 2 each White LEDs with 24" leads 1 each Red LED 1 each Green LED Flying Weight: 11.6g/.41oz
Applications: Scale Lighting, Night Flying, Sport light for airplanes, R/C car lighting effects such as underbody glow, turn signals or headlights, theatrical and special effects Programmability: 106 brightness/sequence blocks, programmable input control, hysteresis and turn-on point.
TEMPORARILY OUT OF STOCK, MFR BACKORDER, ETA SEP-OCT 2025

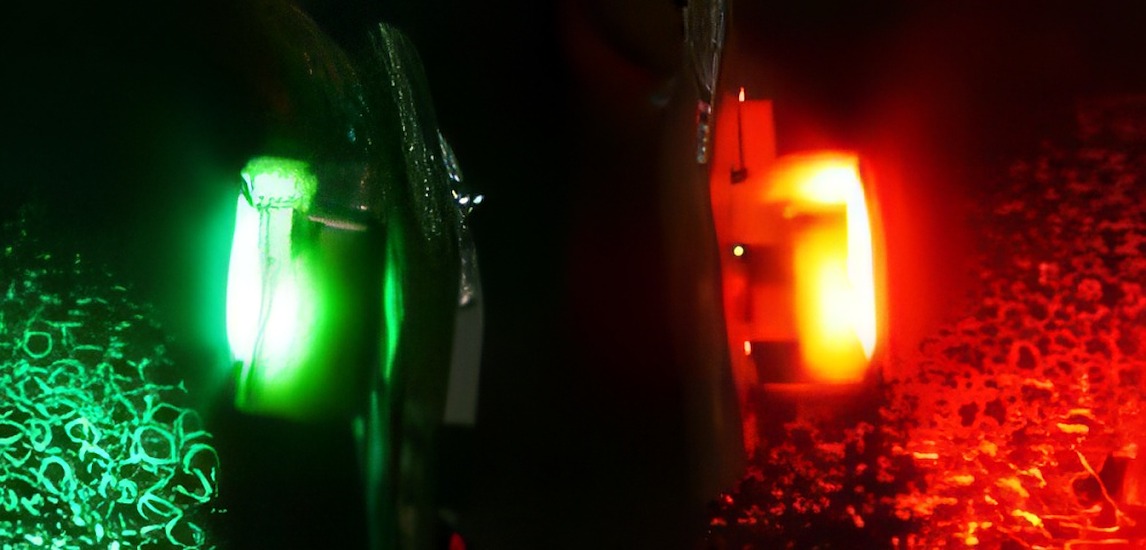

DELight Ultra Bright LEDs pair. Powerful, easy to use LED lights which are designed to be used with the DELight Controller. Fully self-contained, can be used by themselves if desired. Standard servo-type plug, so you can use off-the-shelf servo extensions and Y-harnesses. Each LED puts ot 15 lumens of light, which is more than a child's night-light. They have a wide 120 degree beam angle, so they can be seen from many positions and light up large surfaces. Each module consists of a half-watt surface mount LED, an appropriate current-limit resistor and a 24" lightweight wire pigtail terminating in a universal servo-type connector. Available colors are currently red, green and white. Product Specs: Operating voltage: 4V-6V Current: 150mA max Size: .2" x .375" x .125" + 24" Wire Pigtail Weight: 2.8 g Applications: Additional LEDs for the DELight Programmable Lighting System Model Lighting Theatrical Light Effects Night Flying
DELight Ultra Bright LEDs pair. Powerful, easy to use LED lights which are designed to be used with the DELight Controller. Fully self-contained, can be used by themselves if desired. Standard servo-type plug, so you can use off-the-shelf servo extensions and Y-harnesses. Each LED puts ot 15 lumens of light, which is more than a child's night-light. They have a wide 120 degree beam angle, so they can be seen from many positions and light up large surfaces. Each module consists of a half-watt surface mount LED, an appropriate current-limit resistor and a 24" lightweight wire pigtail terminating in a universal servo-type connector. Available colors are currently red, green and white. Product Specs: Operating voltage: 4V-6V Current: 150mA max Size: .2" x .375" x .125" + 24" Wire Pigtail Weight: 2.8 g Applications: Additional LEDs for the DELight Programmable Lighting System Model Lighting Theatrical Light Effects Night Flying

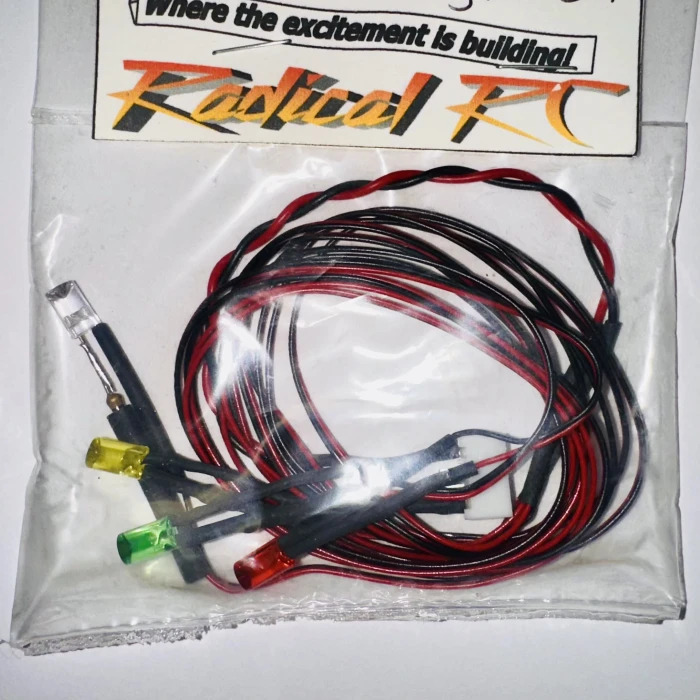

Light Kit made perfect to fit your Slow Stick or other similar sized models up to about 46" wingspan. Wires long enough to install with tape on bottom of wing surface allowing lights to hang couple inches off the wing tips, elevator and motor mount. As such they are easily seen from many different orientations in the sky. 4 LED Setup, 1 red for left wing, 1 green for right wing, 1 white for tail and 1 yellow for nose. Aproximate draw is only 85mah.
Our light kit simply plugs onto your XH balance connector on your 3S Lipo pack. XH is the most common plug as found on Radical RC, E-Flite, Align, Dualsky, Electrifly, Tenergy and many others. No soldering, just plug them in and head for the stars.

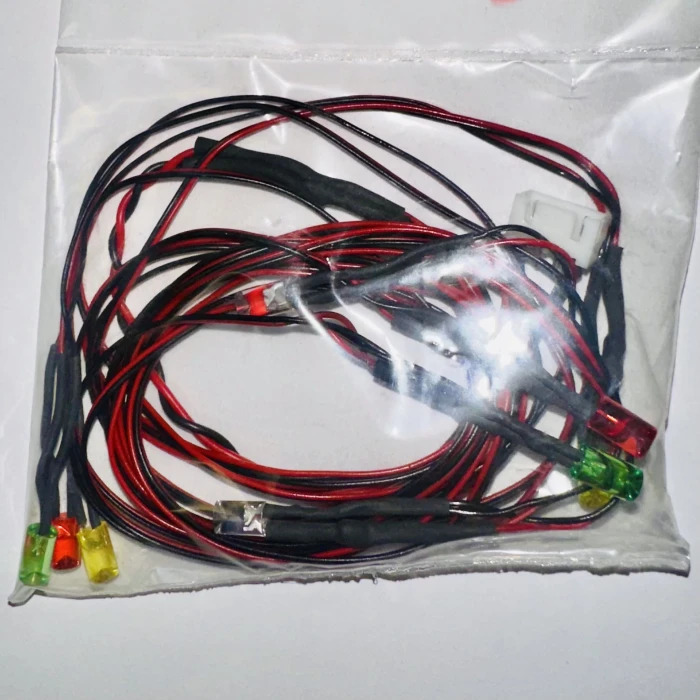

Light Kit made perfect to fit your Slow Stick or other similar sized models up to about 46" wingspan. Wires long enough to install with tape on bottom of wing surface allowing lights to hang couple inches off the wing tips, elevator and motor mount. As such they are easily seen from many different orientations in the sky. 8 LED Setup. 2 red for left wing, 2 green for right wing, 2 white for tail and 2 yellow for nose. Aproximate draw is only 85mah.
Our light kit simply plugs onto your XH balance connector on your 3S Lipo pack. XH is the most common plug as found on Radical RC, E-Flite, Align, Dualsky, Electrifly, Tenergy and many others. No soldering, just plug them in and head for the stars.

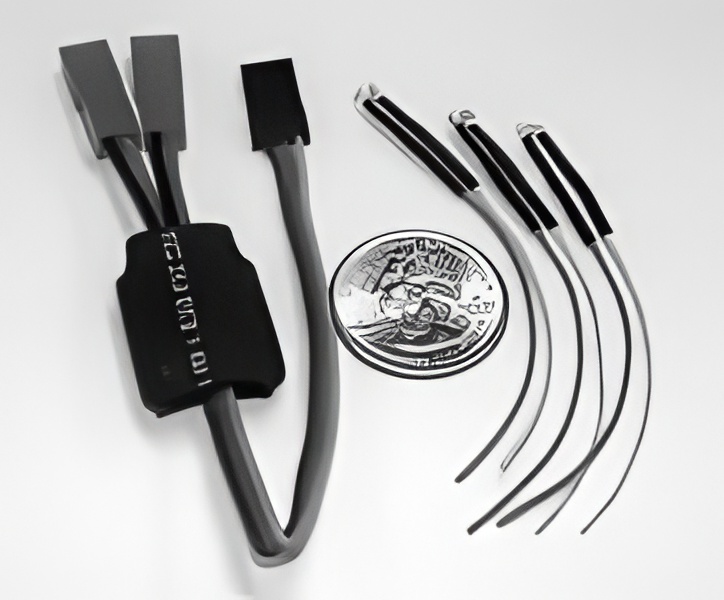

Improve visibility, Includes controler, 4 High Intensity pre-wired LEDs - 2 white, 1 red, 1 green. Weighs only 0.2 oz.. Dual operating modes, Continuous and/or flashing operation for scale effect. Rate and duration of flash is adjustable. Simply powered from a spare channel on the receiver. No extra battery required. Universal plug. Simply cut your LED pigtails to length and solder on BEC pigtails. BEC pigtails plug directly into unit. May be taped onto your park flier or built into your special project. Wire on each LED about 22" long. Designed for standard RX input voltages from 3.6 to 5v. Complete with instructions and drawing.
Notes from Dave: This is a great value considering it comes with blink control and extra micro led's are available for only $5 a pair. You can extend the already generous 22" long leads with simple Red BEC extensions or just cut wires and solder for a custom fit. Because connectors are used, easy removal of wing is made possible without removing lighting system.

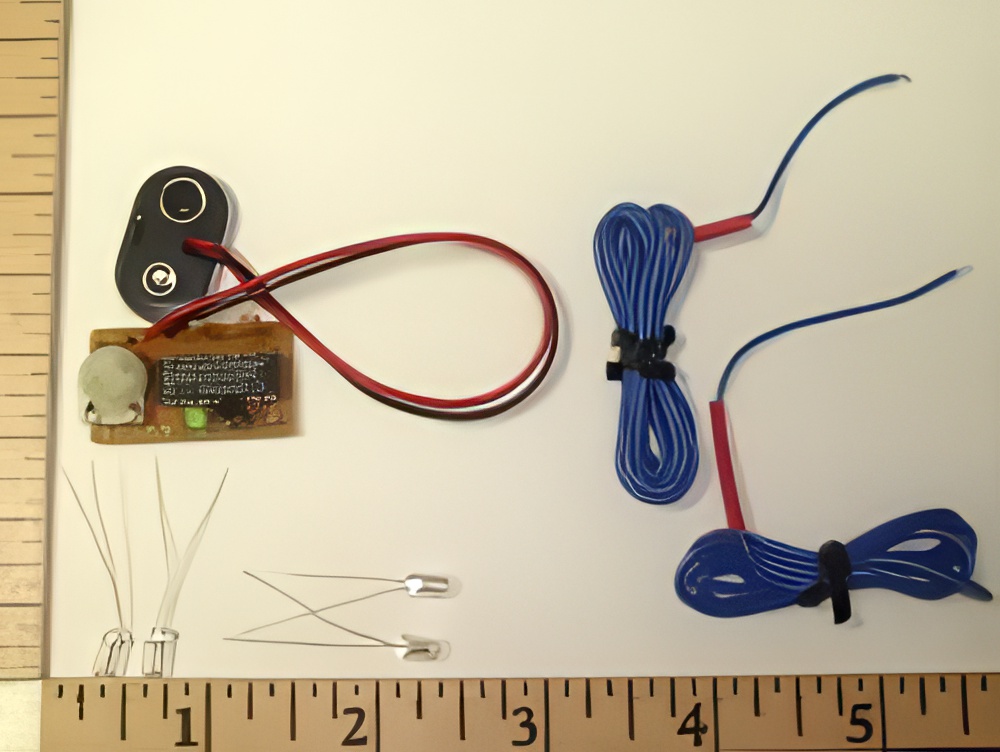

Micro processor controlled flasher to make your scale plane look real! Adjustable brightness. Comes with 4 mini incandesent lights and wiring harnesses. Will also drive LED'S(not included). Cool for that last twilight flight of the day or night flying! Runs off of 9V battery(not included). Mini Xmas lites can also be used-Red for left and Green right. Boats or aircraft! Will not interfere with RC equipment. Requires minor soldering of wiring. Instructions/diagrams included. Work great on all sizes RC models! SKU Number: HISKYSTROBES
The DELight Controller is the most advanced R/C Lighting Controller ever produced. It features high power output and unmatched programmability in a lightweight plug-and-play package.
The controller features six programmable channels. Each channel plays a programmed sequnce. You can select between sequences with your transmitter. For example, you could have a set of wing LEDs which are programmed as chaser lights above 60% input, solid on between 60% and 20%, and off below 20%. Or you cuold program brake lights which glow dimly when a car is driving forward, but light up brightly when brakes are applied. You could even program Morse code sequences to be flashed out of a signal lamp on a boat. Each channel's trip point is independent, so you can have different lights turn on at different points. A good example of this is exhaust lighting, where the engine glow could light at 30% but afterburner effects would not turn on until 80% throttle.
Four of the programmable channels are programmable for current as well as sequence. Strobe, glow and fade effects are easily accomplished. Because these channels are true feedback-controlled analog current sources, it is not necessary to use current-limit resistors when using channels 1-4.
Two of the channels are high powered on/off channels, which can supply up to two amps each. These are useful to turn large strings of lights off and on for night flying applications. These channels can also be used to control auxiliary systems such as smoke pumps, bomb drops or glow-wire inverters.
If no radio signal is present, the DELight Controller will default to a user-programmed sequence. In this manner, it can be used as a stand-alone lighting controller for effects, even without a radio.
The DELink software used to create lighting programs has a built-in simulator, so it is easy to preview and tweak programs without having to make endless trips between your workbench and PC. You can even download the software and get your programs ready before you have the hardware, or share your lighting creations with your friends.
The DELight Controller and LEDs run from BEC power, so we strongly advise the use of a switching BEC or RX pack if you are running many lights at full brightness.
Product Specs Model: DELight Controller
Specifications:
Size: 1.1" x .85" x .2" plus connectors
Weight: 6.0g
Voltage range: 3.6V-7.4V (3-6 cell NiMh, 1 or 2S lipo)
Current Draw:
Controller: 10mAh typical
Channels 1-4: Programmable, 250mAh max per channel
Channels 5-6: 2A max per channel
Channels 7-8: Always on, 2A max per channel
Maximum recommended current draw for all channels: 4A
The DELink software used to create lighting programs has a built-in simulator, so it is easy to preview and tweak programs without having to make endless trips between your workbench and PC. You can even download the software and get your programs ready before you have the hardware, or share your lighting creations with your friends.
The DELink 2 USB Link is the perfect complement to our DELight Controller. Coupled with the DELink Software, you can design, test, and preview your lighting sequences with ease. Utilizing the easy-to-use USB bus, programming your DELight Controller is one click away!
Product Specs
Model: DELink 2
Specifications: Computer -> Link: Micro USB Link -> Product: Standard Servo Pigtail
Applications: Programming supported products USB to TTL serial converter for DEScribe software
 "Dimension Engineering DELight Starter Kit")
 "Dimension Engineering DELight Ultra Bright LED White Pair")
 "Dimension Engineering DELight Ultra Bright LED Red & Green Pair")
 "Night Fly Lights 4 LED")
 "Night Fly Lights 8 LED")
 "MPI Micro LED Lighting System")

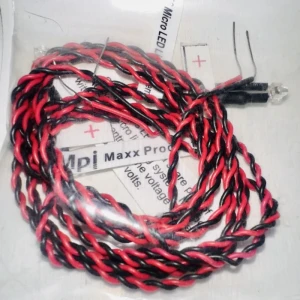

 "MPI Micro LED Pair Extra Red")

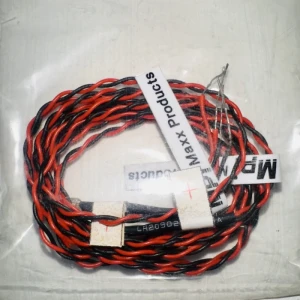

 "MPI Micro LED Pair Extra Blue")

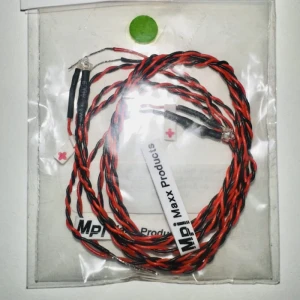

 "MPI Micro LED Pair Extra Green")

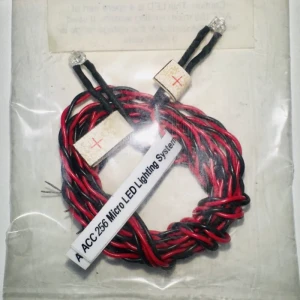

 "MPI Micro LED Pair Extra White")
