Servos Bluebird/Waypoint
|
Blue Bird Servos for RC Models |
| | |

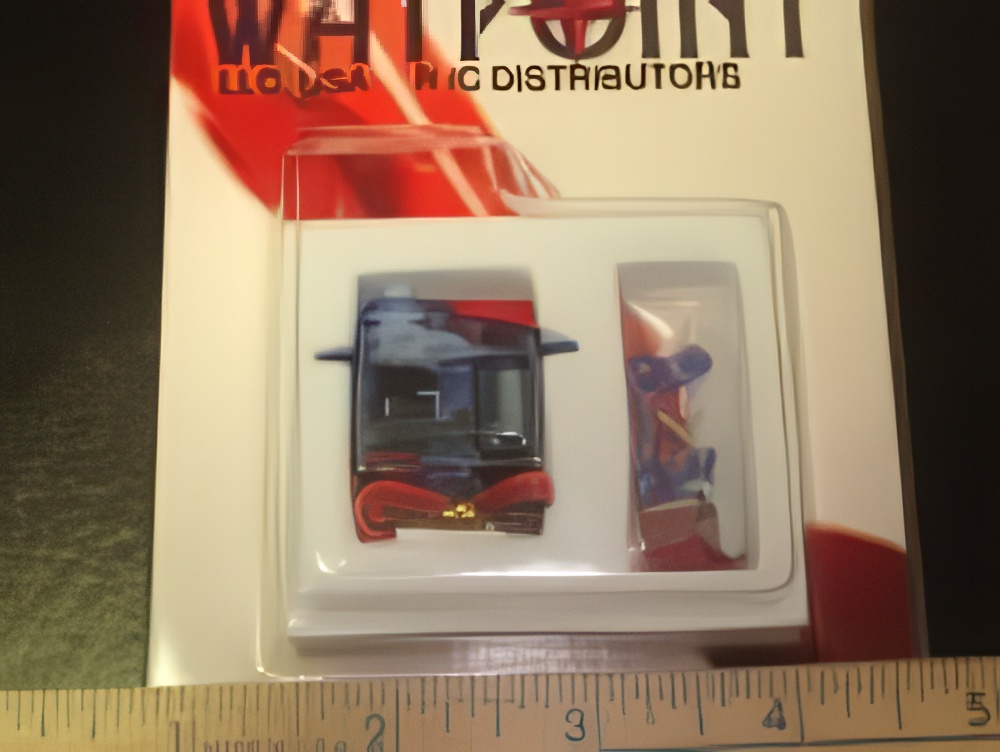

Blue Bird 8g Micro Servo Dimensions: 0.96 x 0.43 x 0.96 in. (24 x 11 x 24mm)
Weight w/Wire: 8.4grams/0.3 oz.
Torque (4.8V) 1.5kg-cm/21 oz.in.
Transit Time: (4.8V)0.12 sec./60?. Comes with universal connector, two control arms, & mounting screws.
SKU Number: BBTBMS371
|
|
|
|
| | |

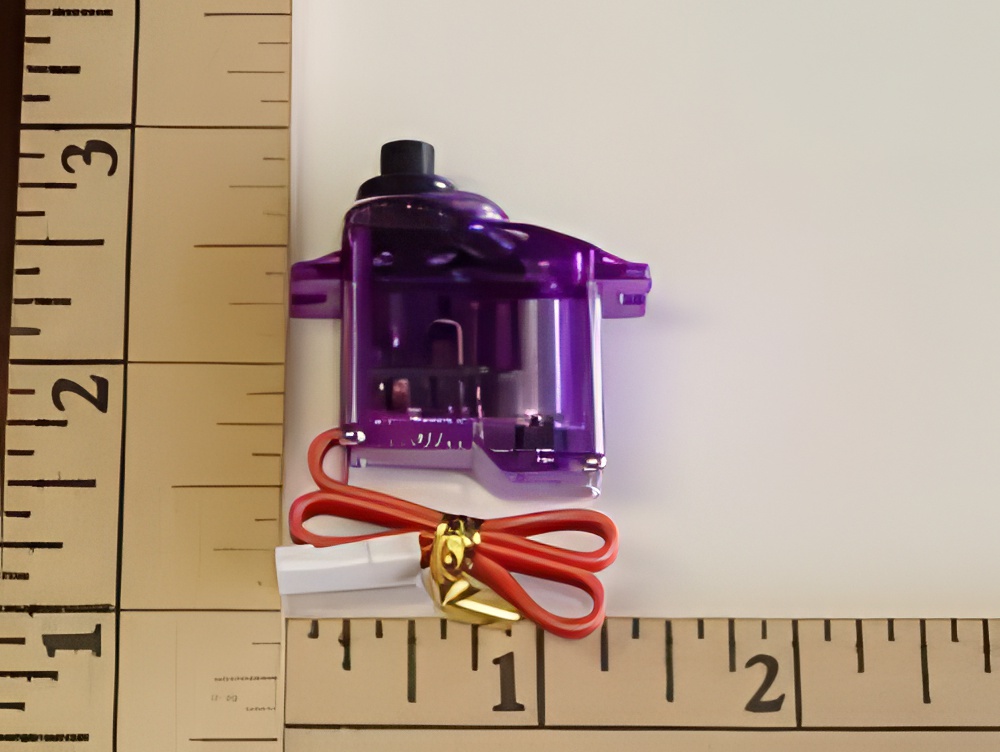

Blue Bird 13g Micro Servo
Weight: 13.4g/0.49oz
Torque: 4.8V 2.5kg-c / 35oz-in
Speed: 4.8V/0.13sec/60
Size(mm): 26x13x26
Size(inch): 1.16x0.51x1.02
Motor type: 3-Pole Ferrite
Gear type: Plastic
Comes with universal connector, two control arms, & mounting screws.
SKU Number: BBTBMS380
|
|
|
|
|
Blue Bird Servos for RC ModelsServos convert radio signals into the mechanical movement that steers a model, and this category focuses on Blue Bird servos sized for small and light aircraft. The selection centers on micro servos with one retract-specific option. Micro ServosBlue Bird micro servos are offered at 6g, 8g, and 13g, weights that suit park flyers, small sport models, and other builds where every gram counts. The gram rating gives a quick sense of a servo's size and the class of model it fits. Retract ServoFor retractable landing gear, the Blue Bird BMS 136BB retract servo uses dual ball bearings on its output, which supports the side loads that gear mechanisms place on a servo. Ball-bearing outputs generally hold up better than bushings under repeated stress, which is why a bearing-equipped servo is a common choice for the demanding job of raising and lowering gear. Choose a servo by weight and function from the options listed below. |
