Analog Servo HD-6001MG. Dual ball bearing high torque standard size metal gear servo. Speedy unit, faster than standard servos.
Torque (4.8v-6v)
Weight
Speed 60° (4.8v-6v)
Bearings
Size SAE Size Metric
Dead Band
Type
80.5/93in.oz. - 5.8/6.7g.cm
56g/1.96oz.
0.16-0.14sec
2
1.6" x .807" x 1.56" 40.7x20.5x39.5mm
4us or less
Analog
SKU Number: PHD6001MG
Power HD Servos
Power HD makes a line of compact and high torque servos used in park flyers, sport models, and other RC projects. This category collects the Power HD servos Radical RC carries, ranging from very light micro units to metal gear types built for heavier control loads.
Micro Servos
At the light end, the 3.7g and 6g high performance servos rated for 4.8 to 6 volts suit small electric airplanes where weight and space are tight.
High Torque Servos
For jobs that need more muscle, the Mini High Torque servo, the 6001MG with metal gears, and the 3001HB give stronger output for larger surfaces or retract and steering duties. Metal gear trains hold up better than nylon under repeated high loads, which is why builders often reach for them on ailerons and steering that see constant work. When choosing among these, it helps to weigh the torque a surface actually demands against the added weight and current a bigger servo draws, so the model stays balanced and the pack lasts a full flight.
Compare the weight, voltage, and torque of each servo below to pick one for your model.

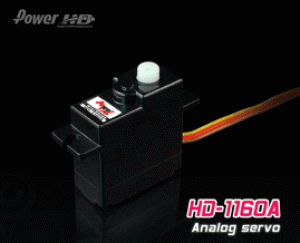

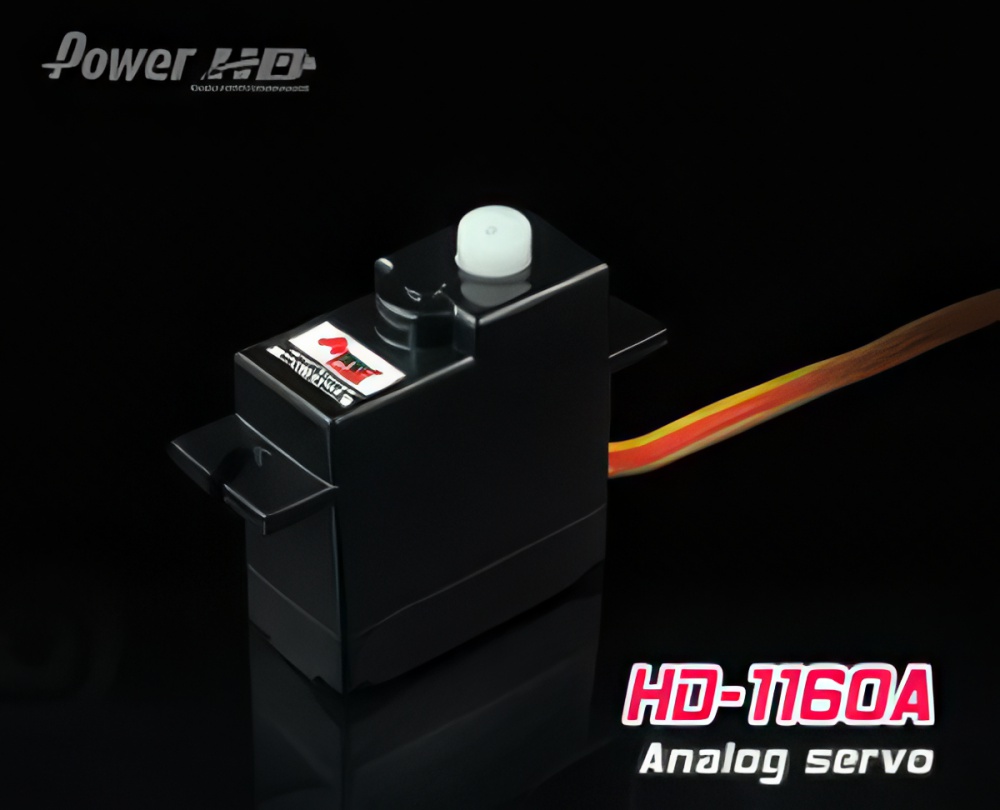

 "Power HD Mini High Torque Servo")

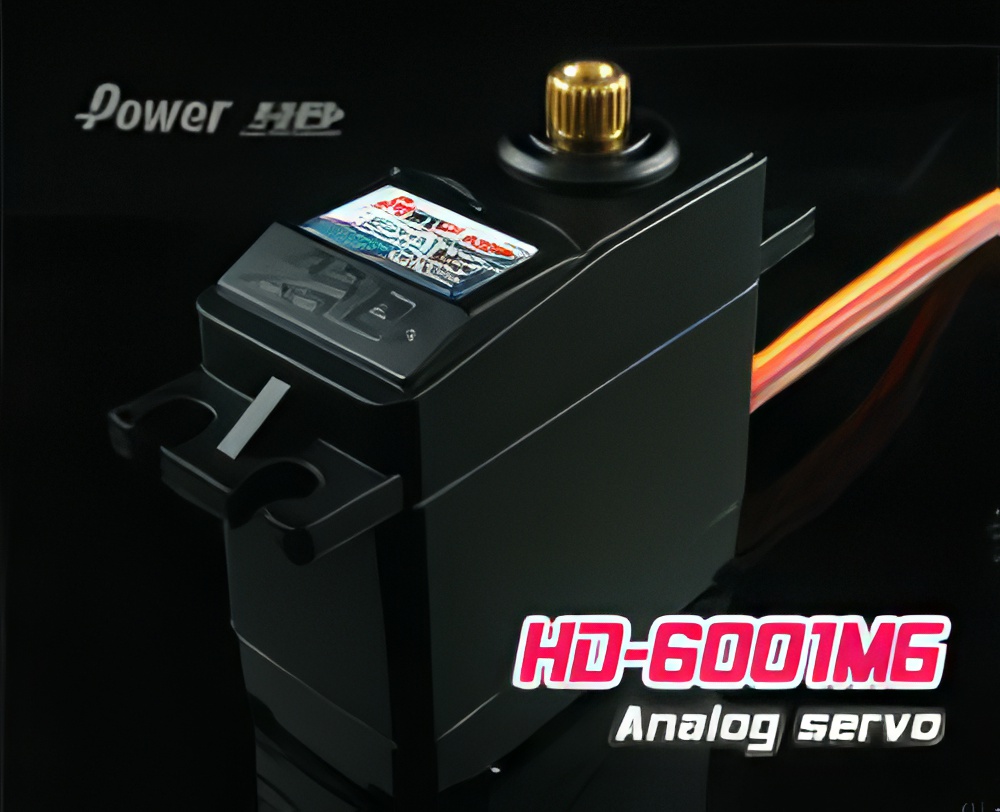

 "Power HD 6001MG High Torque Servo")
