  1. Shop >
  2. Glow & Fuel Power All >
  3. Fuel Fittings

Radical RC 2 Way Fuel in-Line Connector

Radical RC 2 Way Fuel in-Line Connector

Aluminum 2 Way Tube to Tube Fuel In-Line Connector.
Fits 2mm - .078" - 3/32 thru 3.2mm - .125" - 1/8" ID fuel line.

Color may vary (silver, blue, red or purple)


SKU Number: RRC2WAYFC
Price: $2.00
Quantity:

Radical RC 3 Way Y Fuel Line Connector

Radical RC 3 Way Y Fuel Line Connector

3 Way Y Fuel Line Connector.
Fits 2mm - .078" - 3/32 thru 3.2mm - .125" - 1/8" ID fuel line.

Measures 3/8" from center to end.

Also see RRCTFC3WAY




SKU Number: RRCYFC3WAY
Price: $2.50
Quantity:

Radical RC Large 3-Way T Fuel Line Connector

Radical RC Large 3-Way T Fuel Line Connector

Large 3-Way T Fuel Line Connector. Barbs measure .201" (5.12mm) Fits 3/16" (4mm) ID or larger.


SKU Number: RRCTFC3WAYLG
Price: $5.00
Quantity:

Radical RC 3-Way T Fuel Line Connector

Radical RC 3-Way T Fuel Line Connector

3-Way T Fuel Line Connector.
Fits 2mm - .078" - 3/32 thru 3.2mm - .125" - 1/8" ID fuel line.

TEMPORRILY OUT OF STOCK



Also see RRCYFC3WAYLG


SKU Number: RRCTFC3WAY
Price: $3.50
Quantity:

Radical RC Fuel Line Double Locking Squeeze Clamp, Size AA Large, 5-Pack

Radical RC Fuel Line Double Locking Squeeze Clamp, Size AA Large, 5-Pack

Radical RC Fuel Line Clamps.  Size "AA". Clamping range (min 3 teeth engaged) OD of 6.5 to 7.9 mm (.256" to .311").   Pro Tip! It's not the OD of the tubing but rather the OD of the tubing installed on the fitting you need to measure. Clamps can be reused and are double locking. May be installed without removing tubing if you like. Clamping width is 4.25 m (.177"). 5 Clamps per package.




Description
Min Diameter - A16.5mm - 0.256"
Max Diameter - A27.9mm - 0.311"
Band Width - B4.5mm - 0.177"
Band Thickness - C1.6mm - 0.063"
Head Height - D9.9mm - 0.390"
Material - Polyamide 6.6 (PA66)
Weight - 0.001kg/0.002lbs
Also Known As Snapper - Clamp, Ratchet Clamp, Skiffy Clamp
Country of Manufacture - United Kingdom
Color - Black
Hazardous Goods - No
Operating Temperature - 40?C to +105?C / -40?F to +221?F
Flammability Rating - UL 94
RoHS Compliant - Yes

Features
Double Row of Interlocking Teeth - Doubles Strength
Easy to Install with Pliers - also able to wrap around hose on spigot
Reusable & Releasable
Minimal Leak Path
Advanced Tooling for Production Lines
Non-Corrosive and Non-Conductive

Applications
Fluid, Medical, Agricultural Sprayers, Spreaders & Seeders, White Goods, Hydromassage, Automotive, Vending Machine




SKU Number: RRCHERBAA
Price: $3.25
Quantity:

Radical RC Fuel Line Double Locking Squeeze Clamp, Size A Standard, 5-Pack

Radical RC Fuel Line Double Locking Squeeze Clamp, Size A Standard, 5-Pack

Radical RC Fuel Line Clamps. Size "A" or "Standard". Clamping range (min 3 teeth engaged) OD of 5.6 to 6.5 mm (.220" to .256"). Pro Tip! It's not the OD of the tubing but rather measure the OD of the tubing installed on the barb. Clamps can be reused and are double locking. May be installed without removing tubing if you like. Clamping width is 4.2 mm (.165"). 5 Clamps per package.

Description

Min Diameter - A15.6mm - 0.220"
Max Diameter - A26.5mm - 0.256"
Band Width - B4.2mm - 0.165"
Band Thickness - C1.4mm - 0.055"
Head Height - D8.3mm - 0.327"
Material Polyamide 6.6 (PA66)
Weight 0.001kg/0.002lbs
Also Known AsSnapper Clamp, Ratchet Clamp, Skiffy Clamp BrandHerbie Clip
Country of Manufacture United Kingdom
Colour Black
Hazardous Goods No
Operating Temperature-40?C to +105?C / -40?F to +221?F
Flammability Rating UL 94
RoHS Compliant Yes

Features

Double Row of Interlocking Teeth - Doubles Strength
Easy to Install with Pliers - also able to wrap around hose on spigot
Reusable & Releasable
Minimal Leak Path
Advanced Tooling for Production Lines
Non-Corrosive and Non-Conductive

Applications

Fluid, Medical, Agricultural Sprayers, Spreaders & Seeders, White Goods, Hydromassage, Automotive, Vending Machine


SKU Number: RRCHERBA
Price: $3.25
Quantity:

Radical RC Fuel Line Stopper Plug 2-PK

Radical RC Fuel Line Stopper Plug 2-PK

2 each, Fuel Line Stopper or Plug.
Fits 3/16 to 1/8 od fuel line (2mm ID).




SKU Number: RRCFLS
Price: $2.00
Quantity:

Radical RC Fuel Line Clamp 4mm

Radical RC Fuel Line Clamp 4mm

Radical RC Fuel Line Clamps.
One pack of 10 clamps.
4mm.
Great for 1/2A, smaller sized lines.
Pinch open and slide over your installed fuel line.
Prevents fuel line from vibrating off in flight.
Photo shows assembly configuration on a piece of fuel tubing.
Tubing is not included at this price.

TEMPORARILY OUT OF STOCK




SKU Number: RRCFLC4
Price: $4.00
Quantity:

Radical RC Fuel Line Clamp 5mm

Radical RC Fuel Line Clamp 5mm

Radical RC Fuel Line Clamps.
One pack of 10 clamps.
5mm.
Pinch open and slide over your installed fuel line.
Prevents fuel line from vibrating off in flight.
Photo shows assembly configuration on a piece of fuel tubing.
Tubing is not included at this price.




SKU Number: RRCFLC5
Price: $4.00
Quantity:

Radical RC Fuel Line Clamp 6mm

Radical RC Fuel Line Clamp 6mm

Radical RC Fuel Line Clamps. One pack of 10 clamps.
6mm.
Pinch open and slide over your installed fuel line.
Prevents fuel line from vibrating off in flight.
Photo shows assembly configuration on a piece of fuel tubing.
Tubing is not included at this price.




SKU Number: RRCFLC6
Price: $4.00
Quantity:

Radical RC Fuel Line Hose Clamp 5mm V Clamp/Pinch 4 Pack

Radical RC Fuel Line Hose Clamp 5mm V Clamp/Pinch 4 Pack

Radical RC Fuel Line Plastic Clamps.
One pack of 4 clamps.
5mm. Fits standard and 1/2A fuel lines.
Slip over your fuel line and pinch line closed with the clamp.
Please note: Colors can/will vary from photo.
Priced 4 per pack.

SKU Number: RRCFLVC5
Price: $2.00
Quantity:

Radical RC Fuel Tube Coupler Straight

Radical RC Fuel Tube Coupler Straight

Radical RC Fuel Tube Coupler / Fitting Straight. Aluminum 2 Way Tube to Tube Fuel Line Connector
Fits 3/16 to 1/8 od fuel line (2mm ID).

SKU Number: RRCFTCS
Price: $2.00
Quantity:

Radical RC Fuel Tube Coupler Bent 120 Degrees

Radical RC Fuel Tube Coupler Bent 120 Degrees

Radical RC Fuel Tube Coupler / Fitting Bent 120 Degrees. Fits 3/16 to 1/8 od fuel line.




SKU Number: RRCFTCB
Price: $4.00
Color Preference
Quantity:

Fuel Line Plug Assortment

Fuel Line Plug Assortment

Assortment of different fuel line plug. Useful for 3rd lines in your model or for fueling rigs to cap off your fill line.
SKU Number: DUB617
Price: $1.87
Quantity:

Du-Bro Fuel Can Cap Fitting Set

Du-Bro Fuel Can Cap Fitting Set

Du-Bro Fitting set has all the parts you need to convert your plastic or steel fuel can cap for easy hook up to hand or electric fuel pump. Includes filter pickup and fill tip and all fasteners required.
SKU Number: DUB192
Price: $4.01
Quantity:

1/8 I.D. Fuel Line Barb, 4-Pack

1/8 I.D. Fuel Line Barb, 4-Pack

Solder on barb for 1/8 brass tubing. Excellent way to assure your lines will not slip off. 4 per package.
SKU Number: DUB813
Price: $2.59
Quantity:

5/32 I.D. Fuel Line Barb, 4-Pack

5/32 I.D. Fuel Line Barb, 4-Pack

Solder on barb for 5/32 brass tubing. Excellent way to assure your lines will not slip off. 4 per package.
SKU Number: DUB814
Price: $3.03
Quantity:

Sullivan Fuel Tubing Adapters 3/32"-5/32"

Sullivan Fuel Tubing Adapters 3/32"-5/32"

Aluminum Tubing Adapters. Handy for adapting large fittings to smaller fittings, such as muffler nipples or gasoline carb fittings. Kit contains two adapters, plus short lengths of gasoline and glow fuel tubing. Go from 3/32 (2.5mm) ID line to 5/32-3/16 (4-5mm) ID line. Suitable for all fuels.

TEMPORARILY OUT OF STOCK






SKU Number: SUL485
Price: $4.49
Quantity:

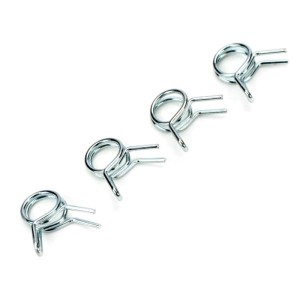

DU-BRO Fuel Line Clips 4-Pack

DU-BRO Fuel Line Clips 4-Pack

DU-BRO's Fuel Line Clips help prevent fuel tubing from coming off of fuel fittings for carbs, fuel filters, fuel tanks and more. Available in two sizes: 3/32" (2.3 mm) and 1/8" (3 mm). 4/pkg

Made in USA

SKU Number: DUB678
Price: $2.51
Quantity:

Robart 1/16" T Couplers 4-Pack

Robart 1/16" T Couplers 4-Pack

1/16" T Couplers (4 package)

1/16 inch- for air line & 1/2A fuel line

Made from high-density plastic resins, Robart Tubing Couplers are safe to use with air, glow- and gas-fuel systems. The couplers come four pieces per package of either Tees, Elbows, or straight couplers. The couplers are color-coded red and black.




SKU Number: ROB215
Price: $6.84
Quantity:

Robart 1/16" L Couplers 4-Pack

Robart 1/16" L Couplers 4-Pack

1/16" L Couplers (4 package)

1/16 inch- for air line & 1/2A fuel line

Made from high-density plastic resins, Robart Tubing Couplers are safe to use with air, glow- and gas-fuel systems. The couplers come four pieces per package of either Tees, Elbows, or straight couplers. The couplers are color-coded red and black.




SKU Number: ROB216
Price: $6.84
Quantity:

Robart 3/32" T Couplers 4-Pack

Robart 3/32" T Couplers 4-Pack

3/32" T Couplers (4 package)

3/32 inch- for .40/.60 size fuel line

Made from high-density plastic resins, Robart Tubing Couplers are safe to use with air, glow- and gas-fuel systems. The couplers come four pieces per package of either Tees, Elbows, or straight couplers. The couplers are color-coded red and black.




SKU Number: ROB218
Price: $6.84
Quantity:
