ULTRA-HIGH POWER CELL INR21700-P45B Molicel has dedicated their product development in the path of ultra-high power cells with focus. The launch of a new generation 21700 power cell, INR-21700-P45B, featuring 7% higher capacity however 22% lower DCR compared to P42A. Its consistent 45A discharging performance has now enhanced hugely with superior fast charge capability up to 3C charging rate. This is a starting point of low impedance version that shall be ideal for premium segment in EV, eVTOL, micro-mobility, home appliances and more applications. Molicel Battery - Ultra-high Power Cell INR21700-P45B Cell Voltage: Nominal: 3.6 V; Charge: 4.2 V; Discharge: 2.5 V Typical Capacity: 4.5Ah (16.2Wh) / 4500 mAh Charge Current: Recommended: 4.5 A (1C); Maximum: 13.5 A (3C) Discharge Current: Continuous (MAX): 45 A Dimensions: Diameter: 21.55mm X Length: 70.15mm X Weight: 70g Power Output: 184W (10s, SOC 90%); 168W (10s, SOC 50%) Energy Density: 643 Wh/l; 242 Wh/kgABOUT ADVANCED R&D PRODUCTS & APPLICATIONS bolt Up to 120W Higher retention for discharge energy up to 120W continuously loop 500+ Cycles High rate 80% retention electrical_services Fast Charge 13.5A continues charge south_west Lowest DCIR Max internal resistance 13.8 mOhm trending_down Low Impedance Growth Over long cycle thermostat Thermal Controlling In cell thermal distribution optimized (3-4 °C)
SKU Number: RRC1S4500
|
|
|
|
| | |
ULTRA-HIGH POWER CELL, 4500mAh, 2S 2-Cell Pack INR21700-P45B Molicel has dedicated our product development in the path of ultra-high power cells with focus. The launch of a new generation 21700 power cell, INR-21700-P45B, featuring 7% higher capacity however 22% lower DCR compared to P42A. Its consistent 45A discharging performance has now enhanced hugely with superior fast charge capability up to 3C charging rate. This is a starting point of low impedance version that shall be ideal for premium segment in EV, eVTOL, micro-mobility, home appliances and more applications. Molicel Battery - Ultra-high Power Cell INR21700-P45B Cell Voltage: Nominal: 3.6 V; Charge: 4.2 V; Discharge: 2.5 V Typical Capacity: 4.5Ah (16.2Wh) / 4500 mAh Charge Current: Recommended: 4.5 A (1C); Maximum: 13.5 A (3C) Discharge Current: Continuous (MAX): 45 A Dimensions: Diameter: 21.55mm X Length: 70.15mm X Weight: 70g Power Output: 184W (10s, SOC 90%); 168W (10s, SOC 50%) Energy Density: 643 Wh/l; 242 Wh/kgABOUT ADVANCED R&D PRODUCTS & APPLICATIONS bolt Up to 120W Higher retention for discharge energy up to 120W continuously loop 500+ Cycles High rate 80% retention electrical_services Fast Charge 13.5A continues charge south_west Lowest DCIR Max internal resistance 13.8 mOhm trending_down Low Impedance Growth Over long cycle thermostat Thermal Controlling In cell thermal distribution optimized (3-4 ?C) Choose your custom pack from the options below, if there's a plug and wire combination not listed, type in your request in the box provide below the options. Photos depict wire configuration options, want something different, type in your request in the box provided below the options.
SKU Number: RRC2S4500
|
|
|
|
| | |
ULTRA-HIGH POWER CELL, 4500mAh, Multi-Cell Pack (3S & Up) INR21700-P45B Photo shows a 2S 2-Cell Flat Pack and a single cell for reference. Molicel has dedicated our product development in the path of ultra-high power cells with focus. The launch of a new generation 21700 power cell, INR-21700-P45B, featuring 7% higher capacity however 22% lower DCR compared to P42A. Its consistent 45A discharging performance has now enhanced hugely with superior fast charge capability up to 3C charging rate. This is a starting point of low impedance version that shall be ideal for premium segment in EV, eVTOL, micro-mobility, home appliances and more applications. Molicel Battery - Ultra-high Power Cell INR21700-P45B Cell Voltage: Nominal: 3.6 V; Charge: 4.2 V; Discharge: 2.5 V Typical Capacity: 4.5Ah (16.2Wh) / 4500 mAh Charge Current: Recommended: 4.5 A (1C); Maximum: 13.5 A (3C) Discharge Current: Continuous (MAX): 45 A Dimensions: Diameter: 21.55mm X Length: 70.15mm X Weight: 70g Power Output: 184W (10s, SOC 90%); 168W (10s, SOC 50%) Energy Density: 643 Wh/l; 242 Wh/kgABOUT ADVANCED R&D PRODUCTS & APPLICATIONS bolt Up to 120W Higher retention for discharge energy up to 120W continuously loop 500+ Cycles High rate 80% retention electrical_services Fast Charge 13.5A continues charge south_west Lowest DCIR Max internal resistance 13.8 mOhm trending_down Low Impedance Growth Over long cycle thermostat Thermal Controlling In cell thermal distribution optimized (3-4 ?C) Choose your custom pack from the options below, if there's a plug and wire combination not listed, type in your request in the box provide below the options. Photos depict wire configuration options, want something different, type in your request in the box provided below the options. See Battery Configuration Chart for examples reference.
Please indicate # Cells x # Cells and other notes in the "Battery Pack Shape Notes" box below, then in the Comments section at checkout tell us you're sending us a drawing, diagram, or photo.
SKU Number: RRC#S4500
|
|
|
|
|

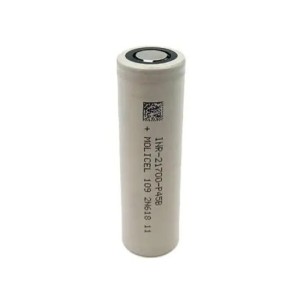

 "MOLICEL Ultra-High Power 4500mAh Single Cell, #INR21700-P45B Air")
 "MOLICEL Ultra-High Power 4500mAh 2S 2-Cell Pack, #INR21700-P45B Air")
 "MOLICEL Ultra-High Power 4500mAh Multi-Cell Pack, #INR21700-P45B Air")
