Smallest of the GWS Direct drive line. Includes motor and 2 each 2.5 x 1 props. At 7.2V draws just .37 amps with 10.59g thrust. 2.64 watts of power, 4.06 grams static thrust per watt. Expect slightly higher output and current on 2S lipo pack.
Smallest of the GWS Direct drive line. Includes motor and 2 each 2.5 x .8 props. At 7.2V draws just .33 amps with 8.04g thrust. 1.98 watts of power, 4.06 grams static thrust per watt. Expect slightly higher output and current on 2S lipo pack.
Second smallest of the GWS Direct drive line. Swings a 2.5x8 prop, at 7.2V draws just .24 amps at 10.96g thrust, 1.73 watts of power, 6.34 grams static thrust per watt.
Second smallest of the GWS Direct drive line. Swings a 2.5x10 prop, at 7.2V, draws just .54 amps at 13g thrust, 3.88 watts of power, 3.34 grams static thrust per watt.
'TIL IT'S GONE! Was $12 - GWS Direct drive 300 power system is a perfect match for your traditional direct s-300 application. Due to reduced battery and motor weight a S-300 is often an upgrade to a S-400 ship. Included is a direct drive prop and spinner press on system. The only difference in these motors is the prop they come with. You might order the other two props so you can try all the combo's on your ship.

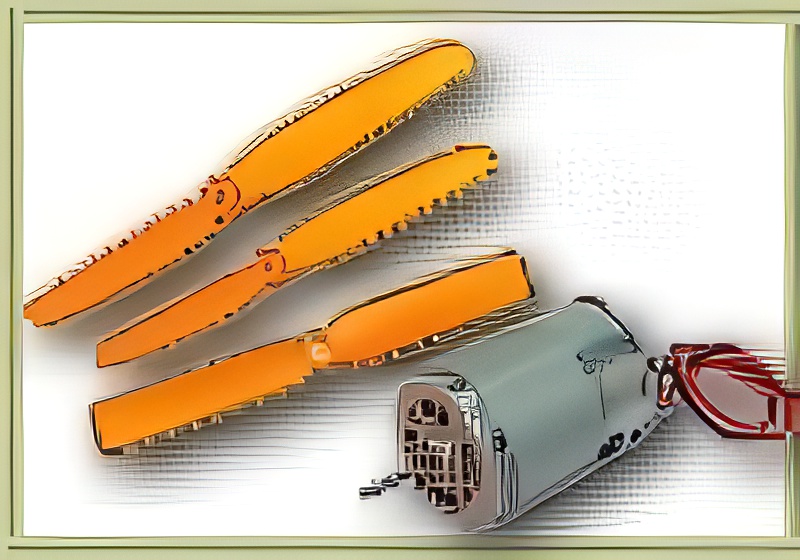

GWS Direct drive Speed 400 power system is a perfect match for your traditional direct s-400 application. Included is a direct drive prop and spinner press on system. The only difference in these motors is the prop they come with. You might order the other two props so you can try all the combo's on your ship. Chart below is with Nicads, be sure to add one cell for RRC-1000 NiMH which is suggested.

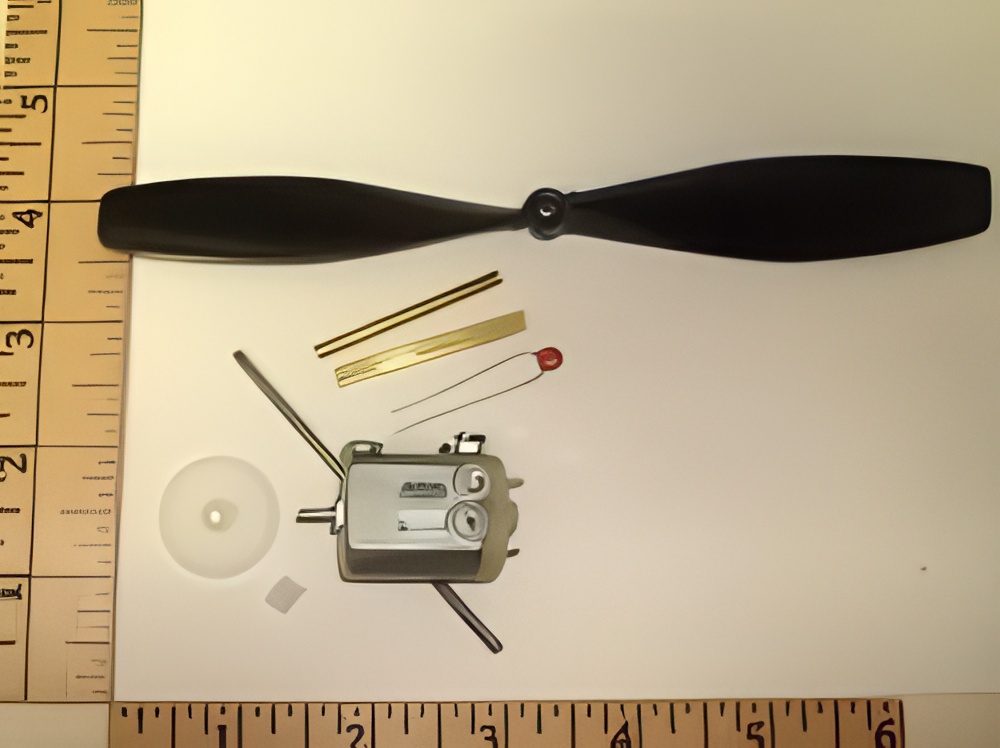

The MMG-1 geared motor system is designed for lightweight models. This motor system is limited to a maximum of 6-cell NiCad battery packs, or 7-cell NiMH battery packs. 2S Lipo packs are also reccomended. More voltage draw will damage the motor. Includes a 7 x 6 1/4 black molded plastic prop. 4.8:1 geared system for 9-10 oz. sized models. This motor system is useful for many small park fliers. It is the original motor for the MM Glider Tech Lil-Hornet, a small wing and stick fuse fun flying aerobatic model. The Lil-Hornet was the very first non-floater aerobatic type park flier model ever commercially produced. This motor system and the model it is associated with is of historic merit.

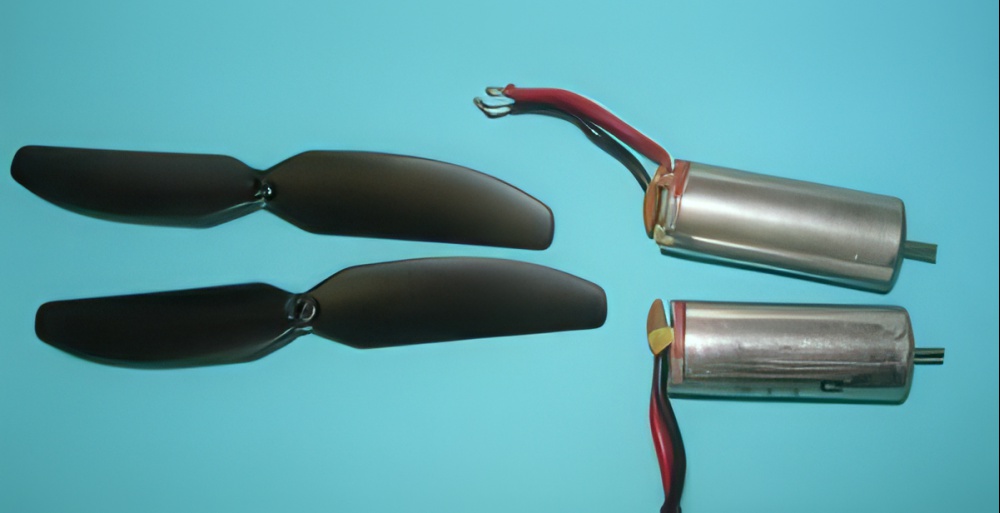

These little 50XC motors are fantastic for electrifying your foamy creations and many department store hand toss models just begging to be electrified. These are low voltage motors removed from geared systems. Dick in our shop runs these on 2 or 3S with the GWS 3-2, 3-3 or 4x2.5 prop for small high speed monsters. You must wire the motors in series and use them in pairs for the voltage to be correct. This would be an excellent choice for our Mini-Hunter and other similar sized models. Get a great twin setup here on the cheap! Each motor has wire and cap installed. Includes 2 each 12mm red dot GWS motors and a pair of press-on 3-3 props.
GWS Direct drive 280 power system is a perfect match for your traditional direct s-280 application. ~NOT INCLUDED: direct drive prop and spinner press on system~. Motor OD is 24mm (.944"), can length 30.5mm (1.2"), shaft length 10.66mm (.420").
NON-WARRANTY, CLOSEOUT, NO LONGER IN PRODUCTION, SALE IS FINAL
Limited quantities, while supplies last!
SKU Number: GWEDP100280C
GWS Direct Drive Brushed Motors
Direct drive setups turn a propeller straight off the motor shaft without a gearbox, keeping the drive simple and light for small electric models. This category collects the GWS direct drive brushed motor systems, most of which arrive paired with propellers so the package is ready to mount and wire.
Motor and Prop Systems
The GWS EDP series spans several output sizes, from the compact EDP-05A and EDP-05B up through the EDP-10A, EDP-10B, and larger EDP20 and EDP50 units. Each system is built around a brushed can motor matched to a suitable prop, which takes the guesswork out of pairing a motor to a first electric conversion.
Choosing an Output
Smaller EDP motors suit very light park flyers, while the larger units in the range provide more thrust for slightly bigger airframes. The EDP50-XC system, for example, ships with two 3-2 props.
Compare the GWS direct drive systems below to find one sized for your model.
 "GWS Direct Drive motor system & 2 Props EDP-05A")
 "GWS Direct Drive motor system with Props EDP-05B")
 "GWS Direct Drive motor system with Prop EDP-10A")
 "GWS Direct Drive motor system with Prop EDP-10B")
 "GWS Speed 300 Direct Drive motor system with Prop EDP-300(A,B,C) 'TIL IT'S GONE")
 "GWS Speed Speed 400 Direct Drive motor system with Prop EDP(A,B,C)")
 "MM Glider Tech Gear Drive Motor System Kit.")
 "Twin 12mm Mini Fun Pack")
 "GWS Speed 280 Direct Drive MOTOR ONLY, NO PROP")
