Onboard voltage monitor designed for 2-6 cells, Lipo with balancing port.
Weight: 10g
Dimensions: 53 x 29 x 5mm
Small, light and ultra portable, only 5mm thick including the LCD screen. Capability of cell count, individual cell voltage and total pack voltage, simultaneously for up to 6 cell lipo packs. Also shows voltage total. Precision with +/- 2% accuracy. See voltage and balance of each cell.
SKU Number: RRCCDM
|
|
|
|
|
| |
Portable digital voltage monitor designed for 2-3 cells. Handy, small size for use as stand alone monitor in shop or field box.
Always disconnect monitor when finished or very small voltage drain can discharge lipo cells too far.
OUT OF STOCK, SORRY! SEE ITEM BELOW
SKU Number: RCMHOT
|
|
|
|
|
| |
- 2.4-inch color screen, 65535 colors, curve display, data statistics.
- High-speed sampling, recording instant, 32-bit ARM processor, 12-bit ADC
- Easy to use: The knob controls the PWM output and supplies the governor throttle signal.
- Technological design, distinct edges and corners.
- Supports up to 50V input, 150A maximum current.
- Upgrading firmware is as easy as copying files.
WM150 SPECS
Input voltage: 1-50V@MAX150A
Input: 5.0V@1A Firmware upgrade@USB3.0
USB Signal port: 1000us-2000us @50Hz
LCD display: TFT 2.4 inch 320*240 resolution
Dimensions: 80mm*54mm*23mm
Weight: 82g
TEMPORARILY OUT OF STOCK, COMING SOON!
SKU Number: TRCWM150
|
|
|
|
|
| |

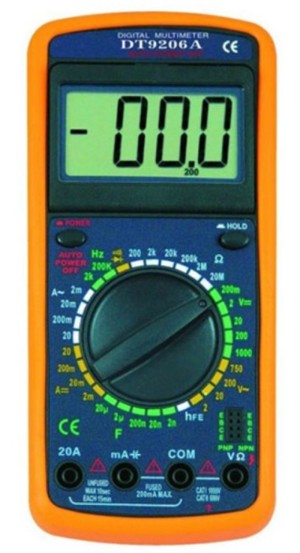

Digital MultiMeter: DT9206A Product Description - Function Range Accuracy
- DC Voltage 200mV-1000V +- (0.5%+1dgt)
- AC Voltage 2V-750V +- (0.8%+3dgt)
- DC Current 2mA-20A +- (0.5%+1dgt)
- AC Current 2mA-20A +- (1.0%+3dgt)
- Resistance 200Ω -20MΩ +- (0.8%+1dgt)
- Capacitance 2nF-20u F +- (2.5%+3dgt)
- Frequency 2KHz-20KHz +- (1.5%+5dgt)
- Diode Test -Yes
- Transistor Test -Yes
- Continuity Buzzer -Yes
- Auto Power Off -Yes
- Data Hold -Yes
- Power Supply 9V Battery 6F22 (battery not included)
- Maximum Display 1999
- Product Net Weight 300g
- Products Size 191x 89x 35mm
- Standard Accessories Test Lead, Battery, Manual.
- Case Color is Orange/Yellow
Features:- 3-1/2 digits LCD, Max. reading 1999
- 8 function, 32 Ranges
- Data hold
- Low battery indication
- Auto Power Off
- Overload protection
Accessories: Test lead; Users Manual;
SKU Number: DT9206A
|
|
|
|
