Special undersize cutter. Use to ream GWS 3x3 and 3x2 props for 1.5mm shaft brushless motors and the EDP50XC (Direct Drive IPS Motor) applications. If props aren't reamed before use, it is possible to push backplate off of motor. The factory holes in these props are inconsistent and often way too tight.
Use this handy tool to straighten out bent motor shafts. Works on 2.0mm and 1.5mm shafts. 2mm works for most 20mm OD motors, 280, 300, 350 + 370. 1.5mm works for 12mm OD motors, Medusa, Fiegao, AON, and GWS 50XC. Simple design allows you to see misalignment and gives you a locked on handle to adjust it all in one tool.
General use instrucitons: Tool is made on a precision lathe, hole is sized to fit shaft and is in exact center of shaft, set screw locks tool to shaft. Attach to shaft and spin tool. Tool lengthens shaft magnifying effect of bend so you can more easily see exactly how much bend it has and which direction it is bent in. Tool provides handle to give leverage to bend shaft back with. May also be chucked up in drill press, run drill press on low RPM and inspect motor wobble, push on motor to remove shaft bend.
Handy wire stripper, cutter and clamp. Cuts steel wire or copper. Wire sizes 20-30 AWG (0.8-0.25mm), stranded or single. Durable. This is same tool we use in the shop.

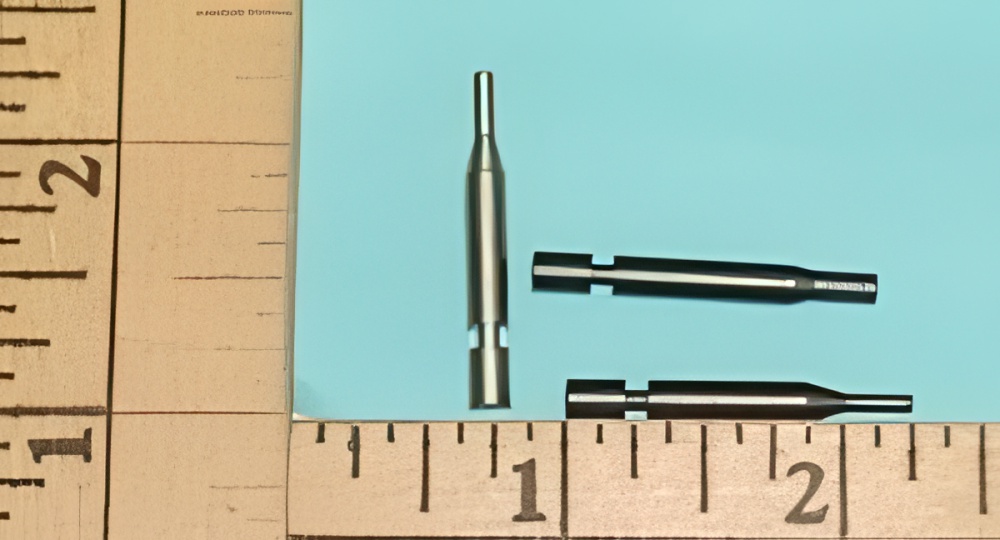

Replacement press pins for the Standard GWS Gear Puller. It's possible to bend a press pin with a particularly stubborn gear or missuse of tool. Here are the replacement parts to keep your puller set in good shape. Available because of direct request by Radical RC.
This is the crimp tool made just for our type of connector pins. This tool crimps the wire tighter than any other we've tested. Use this tool to make custom harnesses, do your own battery connectors or modify existing wiring.
High performance Powerpole crimp tool for a reasonable price. Crimps all three sizes of Powerpole contacts; 15, 30 and 45 amp. Ratcheted mechanism assures proper crimps every time. Contact positioner holds contacts correctly while crimping. Far faster and better than soldering. The highest strength and the lowest resistance connections possible. Long high leverage handle makes even 45 amp 10 gauge crimps easy. Dimensions H,W,D 7.75" X 3" X 1.5" Weight 20 ounces Contact retention force, 15, 25 amp contacts More than 25 pounds Contact retention force, 45 amp contacts More than 35 pounds.
SKU Number: RRCPWRCRIMP
Electric Motor Tools for RC
Electric power systems bring their own maintenance tasks, and this category gathers the specialty tools that address them, from truing a bent shaft to pulling a stubborn pinion. Each one targets a job a general tool set handles poorly.
Shaft and Prop Tools
A combo shaft straightener corrects a motor shaft bent in a nose-over or hard landing, with versions covering pairs of common shaft diameters. A prop reamer opens a propeller hub to the exact shaft size so a prop seats without slop, and a precise cutter and stripper tool prepares the fine motor and battery wiring found in electric setups.
Gear Service

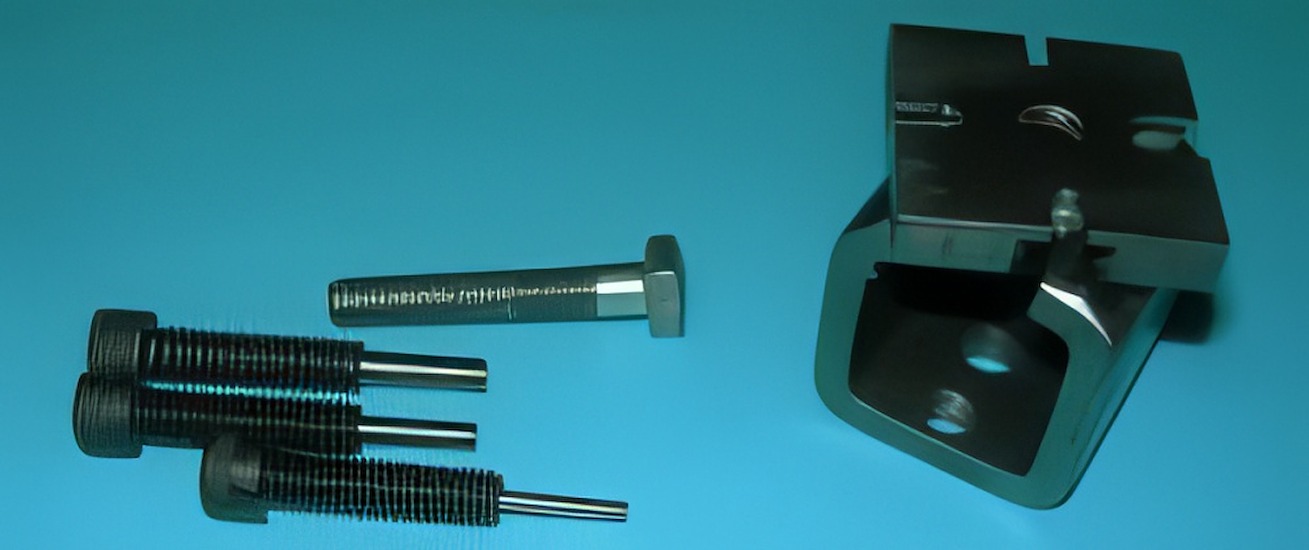

A gear puller removes a press-fit pinion or gear without damaging the shaft, offered in standard and micro sizes to suit larger and very small motors alike. Pulling a gear cleanly is far easier than fighting one off with pliers.
See the electric motor tools below to equip your workbench for power system work.
 "1.5mm Prop Reamer")
 "Combo Shaft Straightener 2mm & 1.5mm")
 "Precise Cutter & Stripper Tool")
 "Replacement Shaft Set for GWS Standard Gear Puller")
 "Gear Puller")
 "Hobby Pin Crimp Tool")
 "Powerpole Power Crimp Tool")
