Package of 24 Sig Easy Hinges. Merely slot with hobby knife, slide hinge in slit, wick thin CA in and your done. It's my own preference to cut these down into narrower strips and use a few more but smaller hinges. A pack of these goes a long way and is the worlds toughest hinging method.
Du-Bro's Electric Flyer Hinge Tape has great adhesion characteristics and is easy to remove. In addition, our hinge tape will not leave residue. 15' Roll/pkg Made in USA
Sticks well on most foams and any plastic covering. Perfect for small size park flyers, sticks, foamies.

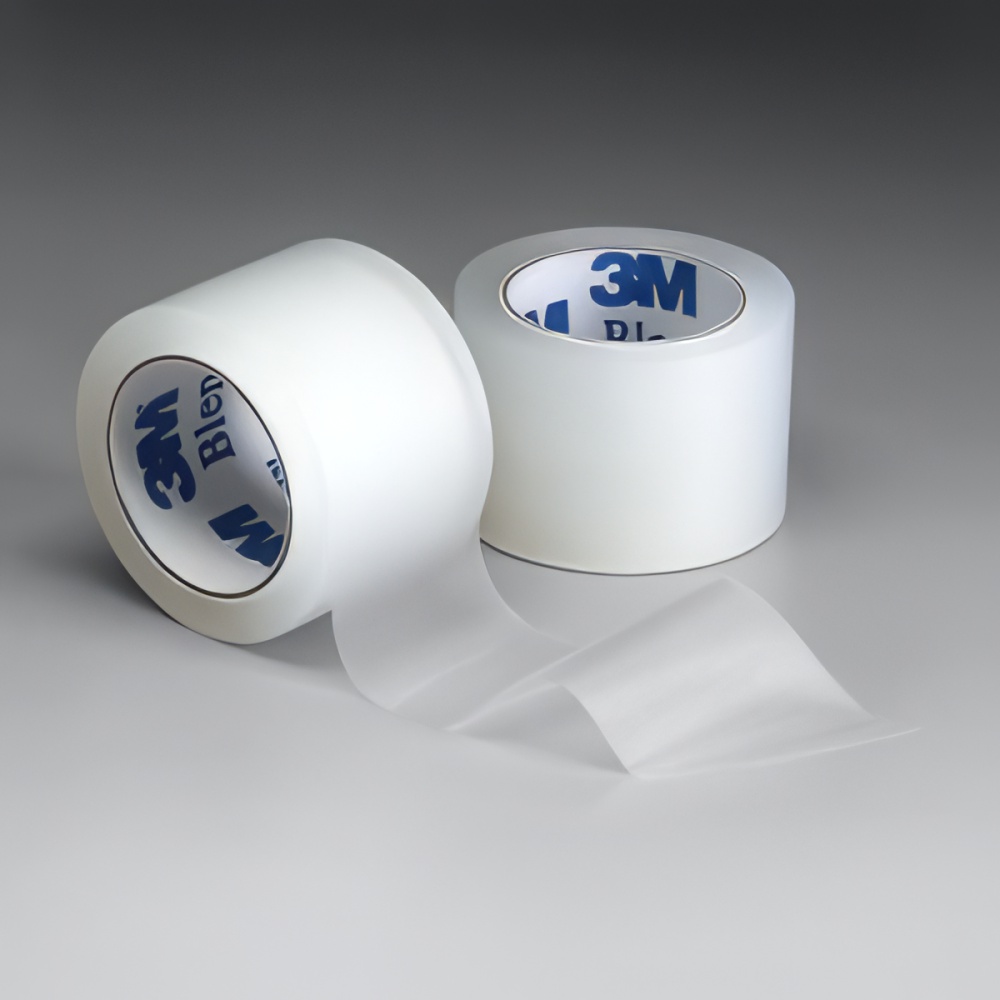

Sticks well on most foams and any plastic covering. Perfect for small size park flyers, sticks, foamies. One, 1/2" x 5 yard roll. Photo sample is 1" not 1/2".
Sticks well on most foams and any plastic covering. Perfect for small size park flyers, sticks, foamies. One each, 1.0" x 5 yard roll. Photo sample is 1".

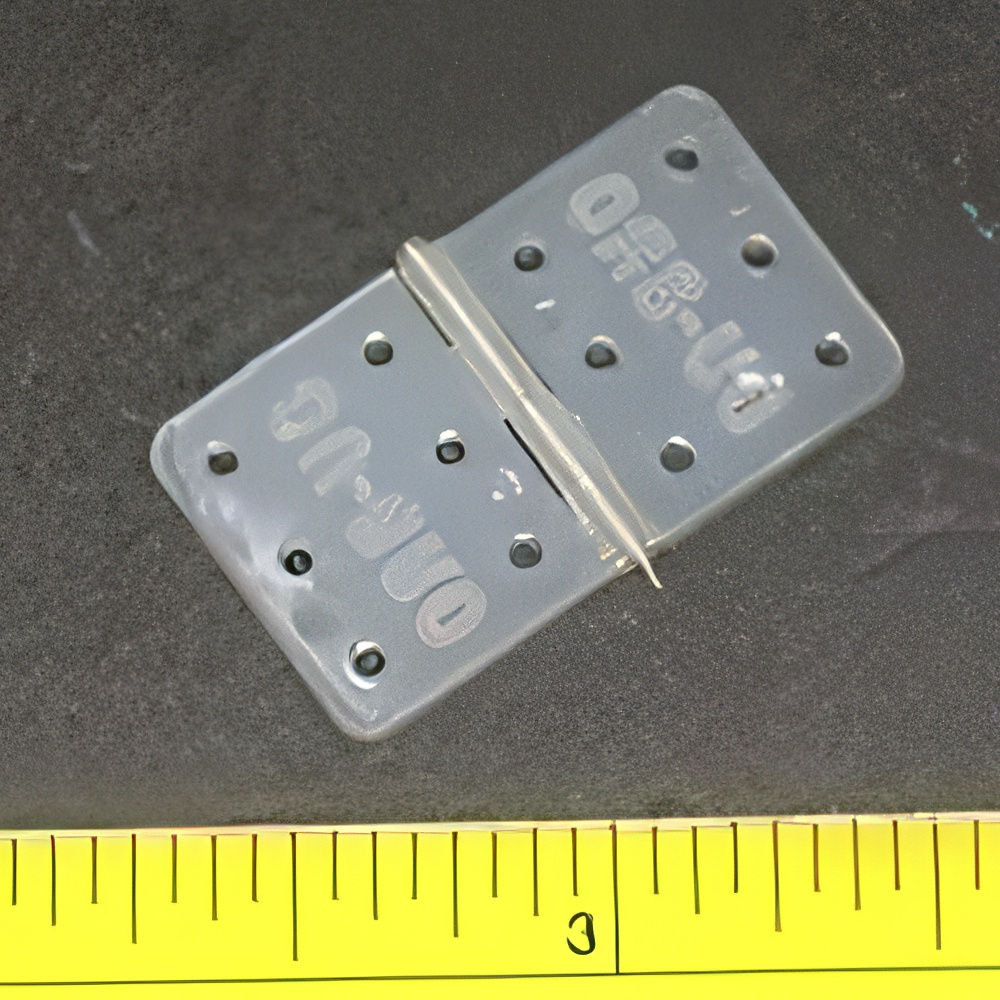

6 pack, Du-Bro Standard hinges. Slot your control surface edges, slide in hinge and CA in place. Hinge pin locked in place. One 6 pk package.
The DU-BRO Nylon Hinges are a reliable, lightweight, and easy-to-install hinge option for RC aircraft of all sizes. Designed for strength and smooth control-surface movement, these hinges are perfect for ailerons, elevators, rudders, flaps, and other movable surfaces. Whether youre building a new model or updating an older one, DU-BRO hinges give you the dependable performance your aircraft needs.
Each hinge is precision molded for consistency and quality. DU-BRO inspects every hinge and assembles it with a locked-in hinge pin, ensuring smooth movement without slipping or pulling out. The clean, flash-free molding means every hinge drops into place neatly, without needing extra trimming or cleanup.
To ensure a strong bond to the control surface and airframe, each hinge has six holes on each side. These holes allow glue to flow through and create a reinforced joint, giving your aircraft maximum holding power and long-lasting durability.
DU-BRO Nylon Hinges are available in two sizes:
Standard Nylon Hinges
Dimensions: 5/8" (16 mm) wide x 1 1/8" (28 mm) long
Weight: 0.5 grams each
Ideal for medium to large aircraft

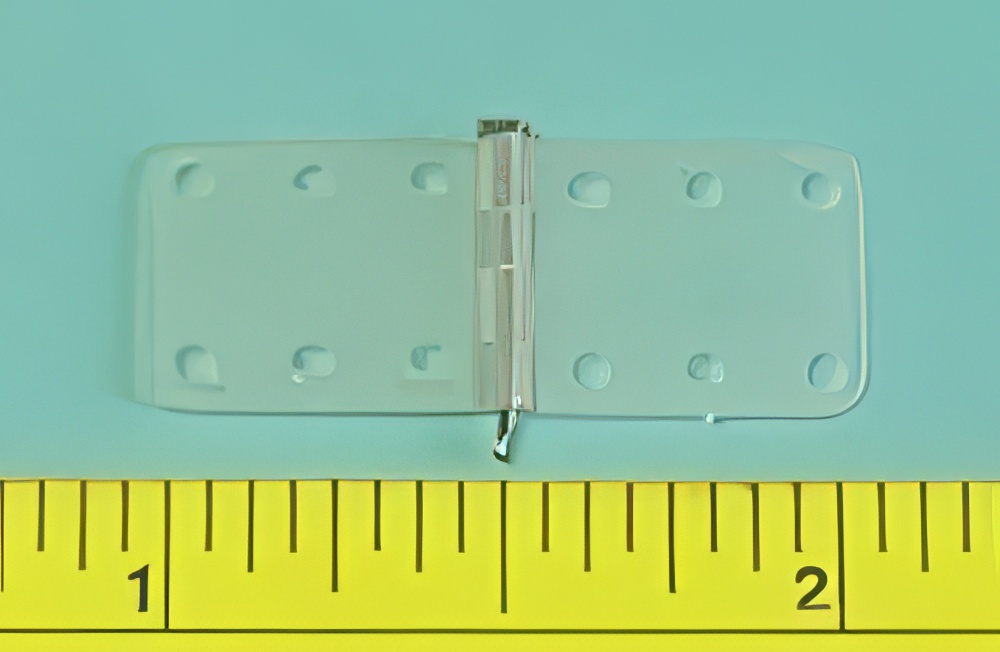

Mini Nylon Hinges
Dimensions: 7/16" (11 mm) wide x 1 1/8" (28 mm) long
Weight: 0.2 grams each
Perfect for smaller aircraft or lightweight models
These hinges install easily using CA, epoxy, or other common model adhesives. Their smooth pivot action provides precise, consistent control movement that improves your aircraft's performance and reliability.
Proudly Made in the USA, DU-BRO Nylon Hinges deliver strong construction, precise molding, and long-lasting quality trusted by RC builders everywhere.
Built to take heavy loads, 3/4 (19mm) Wide X 1 3/8 (35mm) Long X .040 (1mm) thick. Removable 3/64 (1.2) diameter cotter pin for maximum convenience and strength. Ideal for big airplanes.
Now you can hinge your control surfaces with these popular pin style hinges. Designed for micro indoor and park flyer models, these use metal pivot pins and multiple connecting arms for strength. Overall Length: 1.28125O (1 9/32O) 15/pkg. (0.18 grams/ea.)

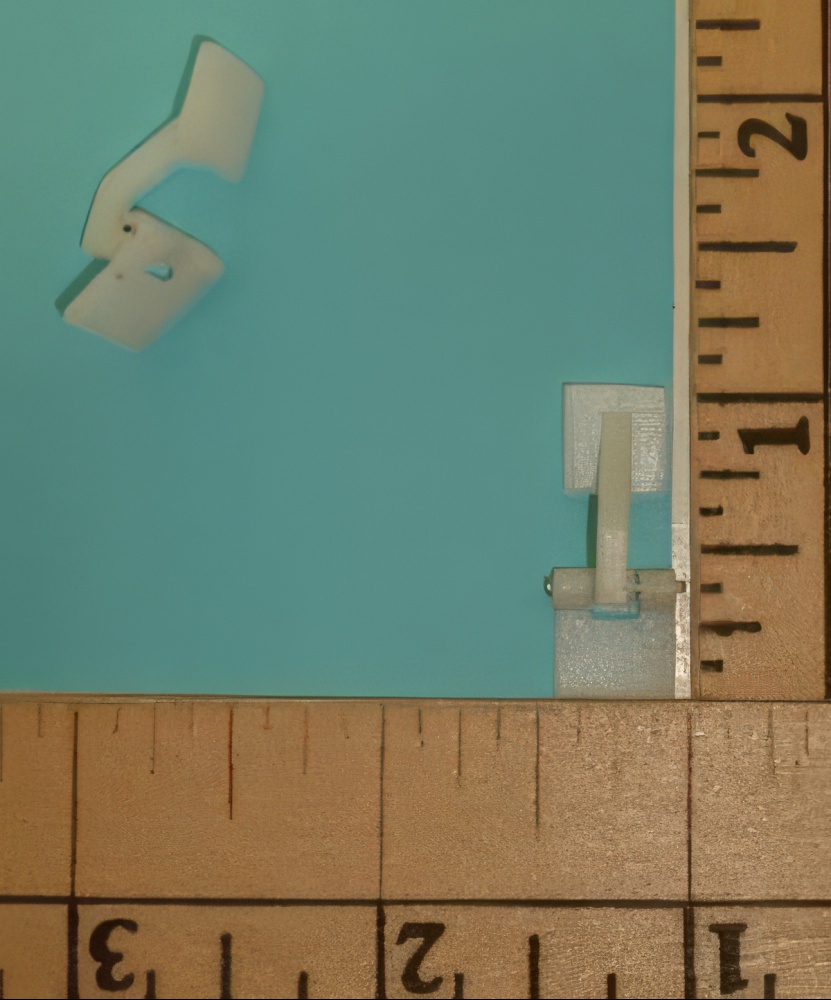

Package of 4 hinges. Offset pin allows more realistic door movement. With flaps allows gap for air to pass over the flap from underneath which in many applications is more scale and more efficient. Hinge pad with pin is aproximately 10.5x11mm, door or flap end pad size is 9x9mm. May be screwed or sewn (through your own drilled holes) in to position.

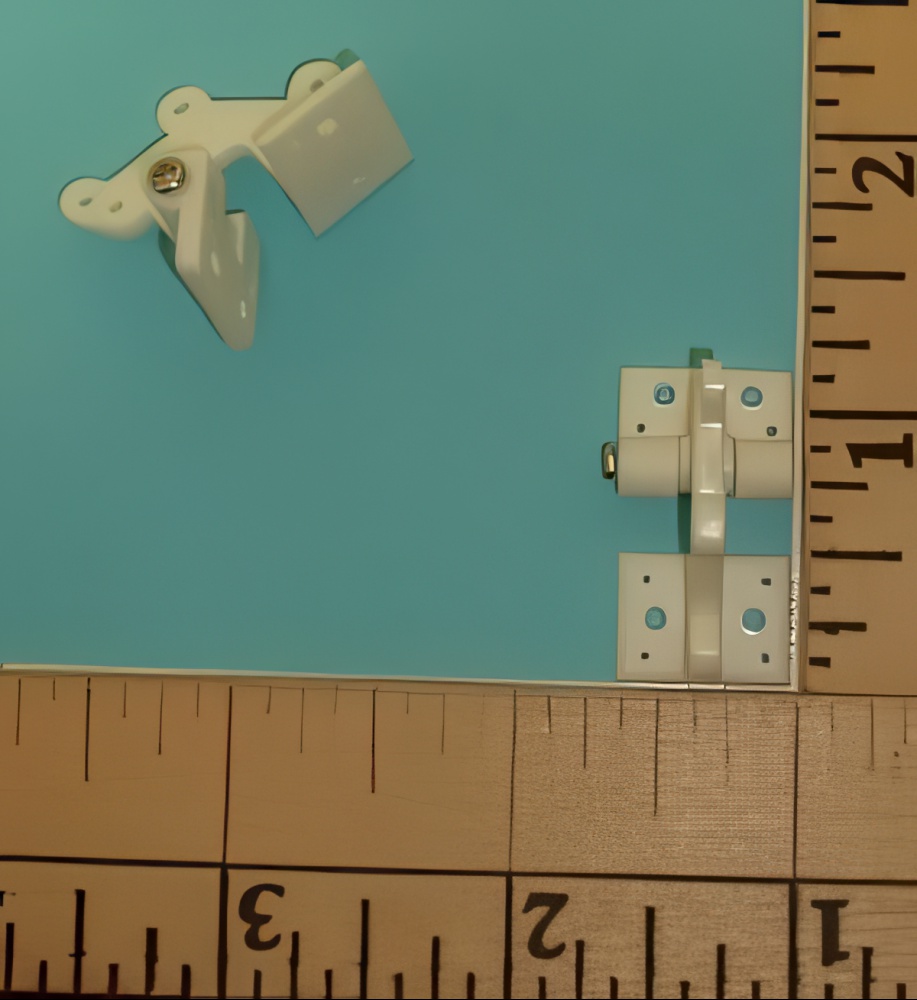

Package of 5 hinges. Offset pin allows more realistic door movement. With flaps allows gap for air to pass over the flap from underneath which in many applications is more scale and more efficient. Each hinge pad is approximately 12mm x 16mm. May be screwed or sewn (through factory pre-drilled holes) to surface. This hinge has several options for pushrod connections. Hole size is about .06" or 1.5mm, may be enlarged to suit.

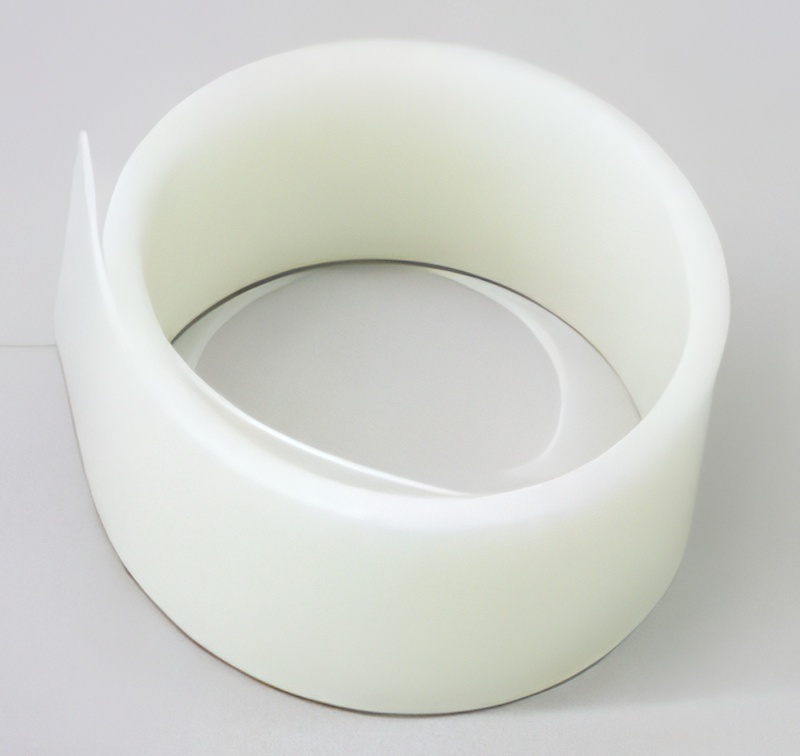

.010" x 3" x 4" sheet. Can be cut into 16 standard size hinges or a great many more smaller ones. Tranlucent flex type material. manufacturers stock photo is of same material in roll form. Your item will be a 3x4" sheet of same material.

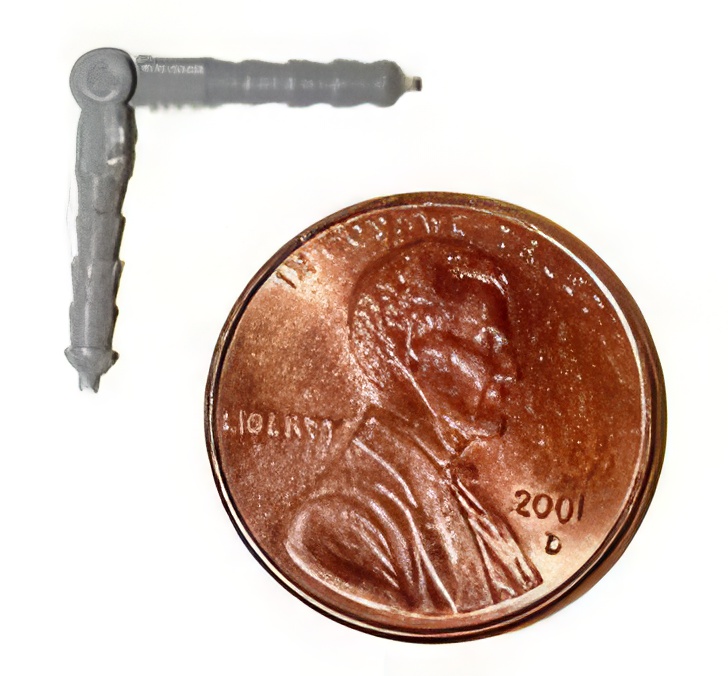

For .25 to .90 Size Models (up to about 2.5 pounds). Hinge Point Hinges are truly unique. Instead of trying to chisel a slot, as with ordinary hinges, simply drill a hole, add some glue and insert the hinge point. Simple, perfectly straight hinging can be done quickly. The hinges are available in three sizes 3/32", 1/8" & 3/16". 6 per package.

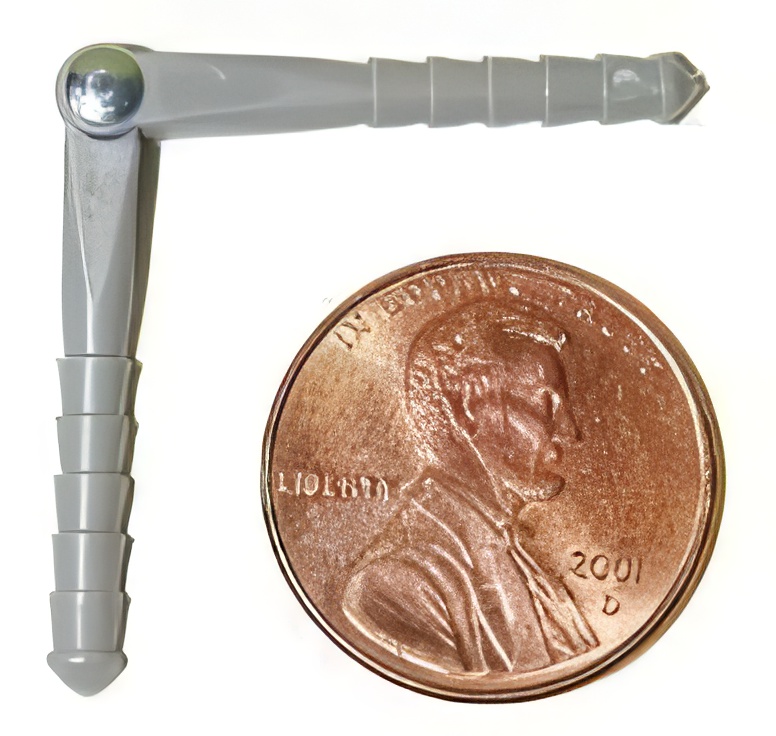

For .25 to .90 Size Models (about 2 to 12 pounds). Hinge Point Hinges are truly unique. Instead of trying to chisel a slot, as with ordinary hinges, simply drill a hole, add some glue and insert the hinge point. Simple, perfectly straight hinging can be done quickly. The hinges are available in three sizes 3/32", 1/8" & 3/16". 6 per package.

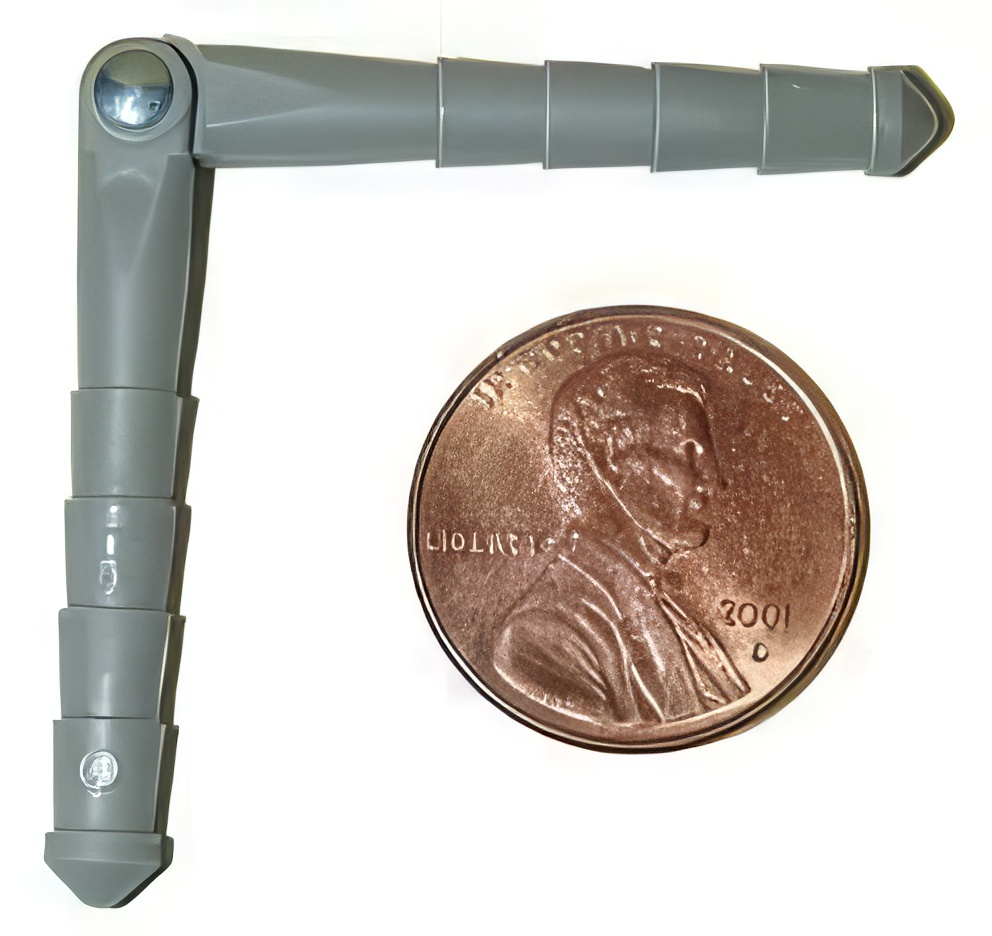

For 1.20 thru giant scale models (about 12lbs and up). Hinge Point Hinges are truly unique. Instead of trying to chisel a slot, as with ordinary hinges, simply drill a hole, add some glue and insert the hinge point. Simple, perfectly straight hinging can be done quickly. The hinges are available in three sizes 3/32", 1/8" & 3/16". 6 per package.
For 1.20 thru giant scale models (about 12lbs and up). Hinge Point Hinges are truly unique. Instead of trying to chisel a slot, as with ordinary hinges, simply drill a hole, add some glue and insert the hinge point. Simple, perfectly straight hinging can be done quickly. The hinges are available in three sizes 3/32", 1/8" & 3/16". 15 per package.

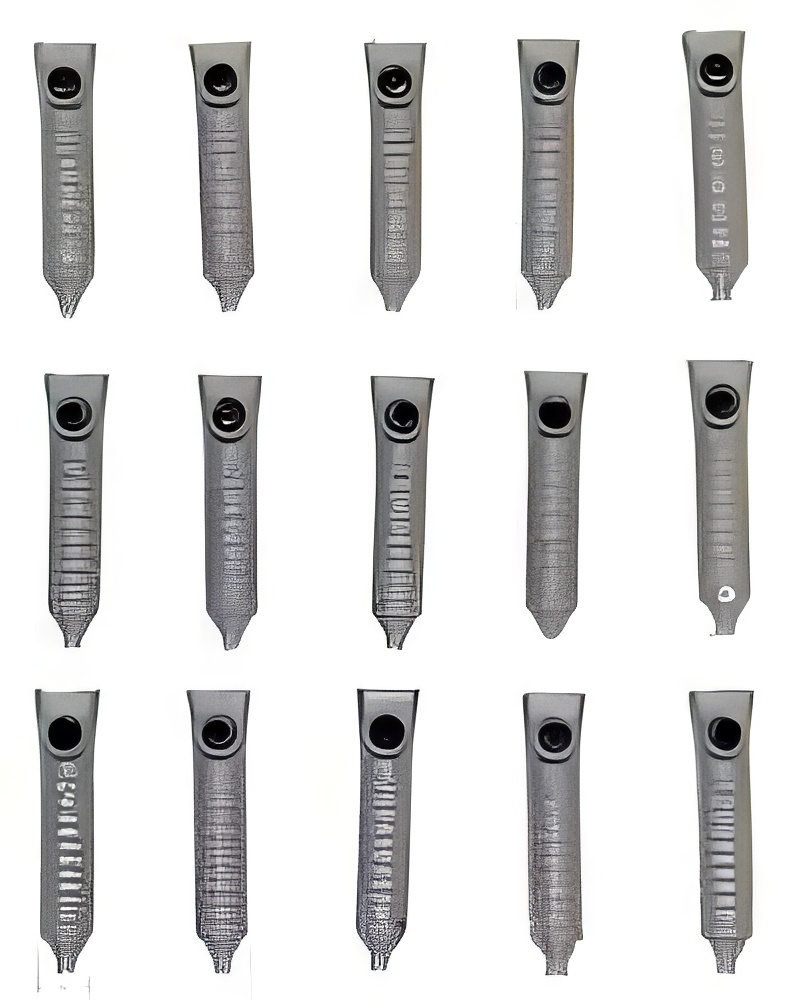

For #307, #308, #311, #311B & #321 Hinges. You can use with Hinge Points to easily take apart hinged surfaces during construction for painting or repairs. Strong, secure set screw fastening. Package contains 6 pockets (photo shows wrong quantity).
1/8" Steel Pin Hinge Points (15 package) Length = 2 inches For .25 to .90 Size Models Hinge Point Hinges are truly unique. Instead of trying to chisel a slot, as with ordinary hinges, simply drill a hole, add some glue and insert the hinge point. Simple, perfectly straight hinging can be done quickly. The hinges are available in three sizes 3/32", 1/8" & 3/16".
SKU Number: ROB308
RC Plane Hinges
Hinges tie a control surface to its fixed structure and must flex freely while holding up to years of movement and airflow. This category collects hinges and hinge tapes in the styles builders use across balsa, foam, and film-covered models.
Pinned and CA Hinges

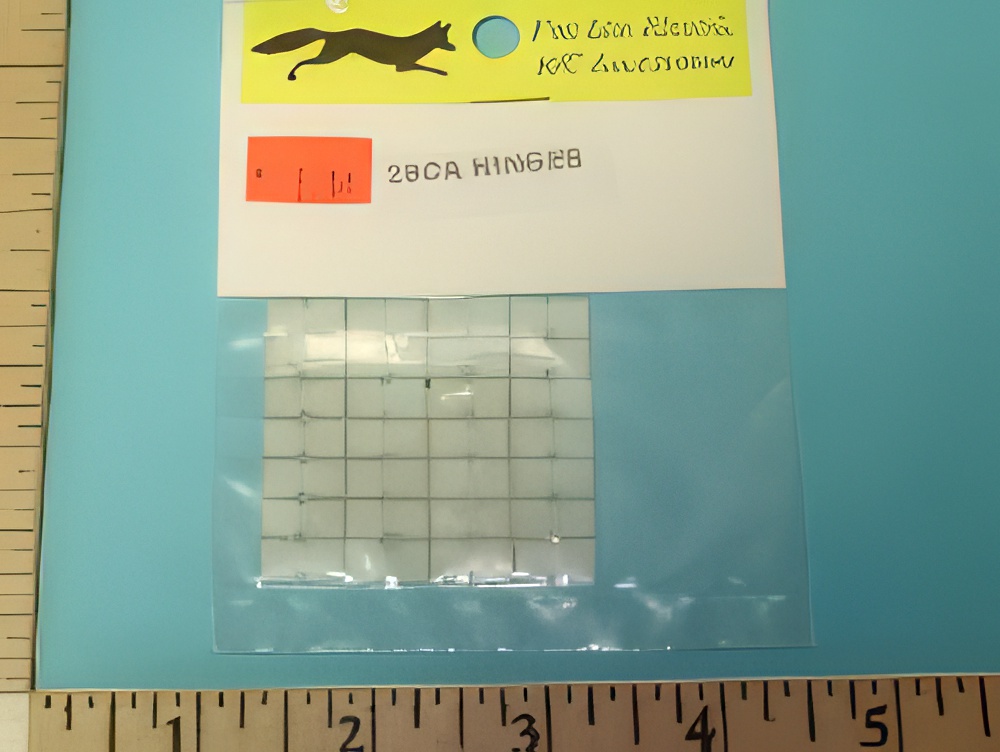

Traditional options include Sig Nylon Pinned Hinges in a 15-pack and Sig Easy Hinges, along with Fox Lite CA hinges that glue in place with thin cyanoacrylate. GWS Plastic Hinges add a simple choice for lighter models.
Hinge Tapes

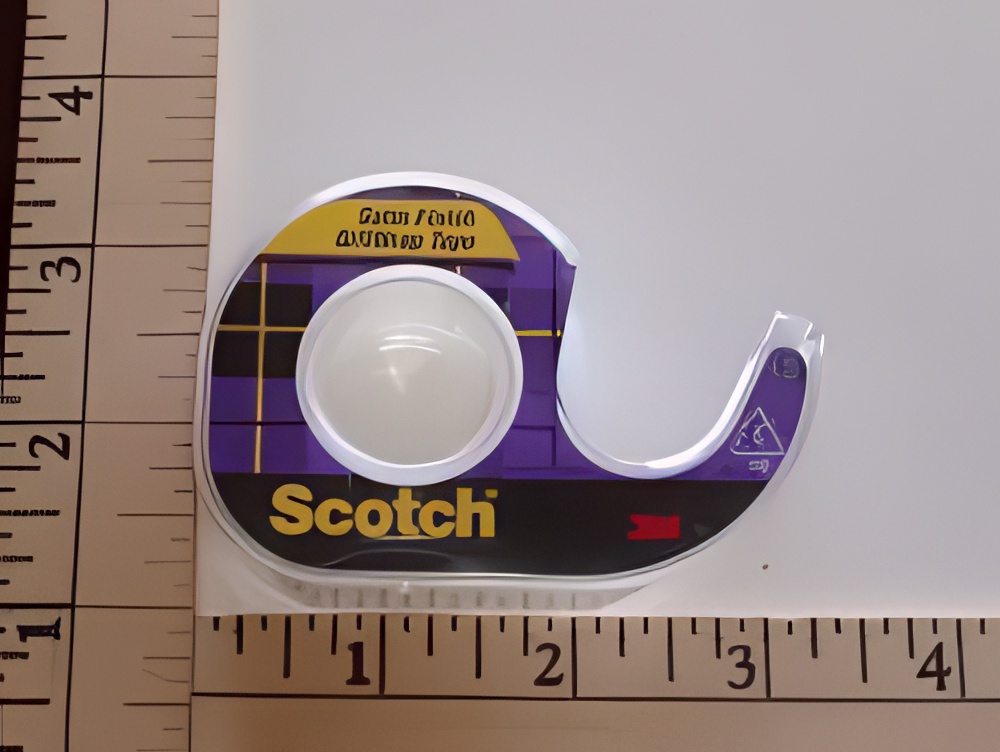

For foam and lightweight builds, Du-Bro Electric Flyer Hinge Tape and Dave's Favorite Low Cost Hinge Tape create a thin, flexible joint without slots or pins. Tape hinges go on quickly and add very little weight to a surface. With pinned, CA, and tape styles all represented, you can match the hinge to the covering and the size of the control surface you are hanging.
Pick the hinge style that suits your model and covering below.
