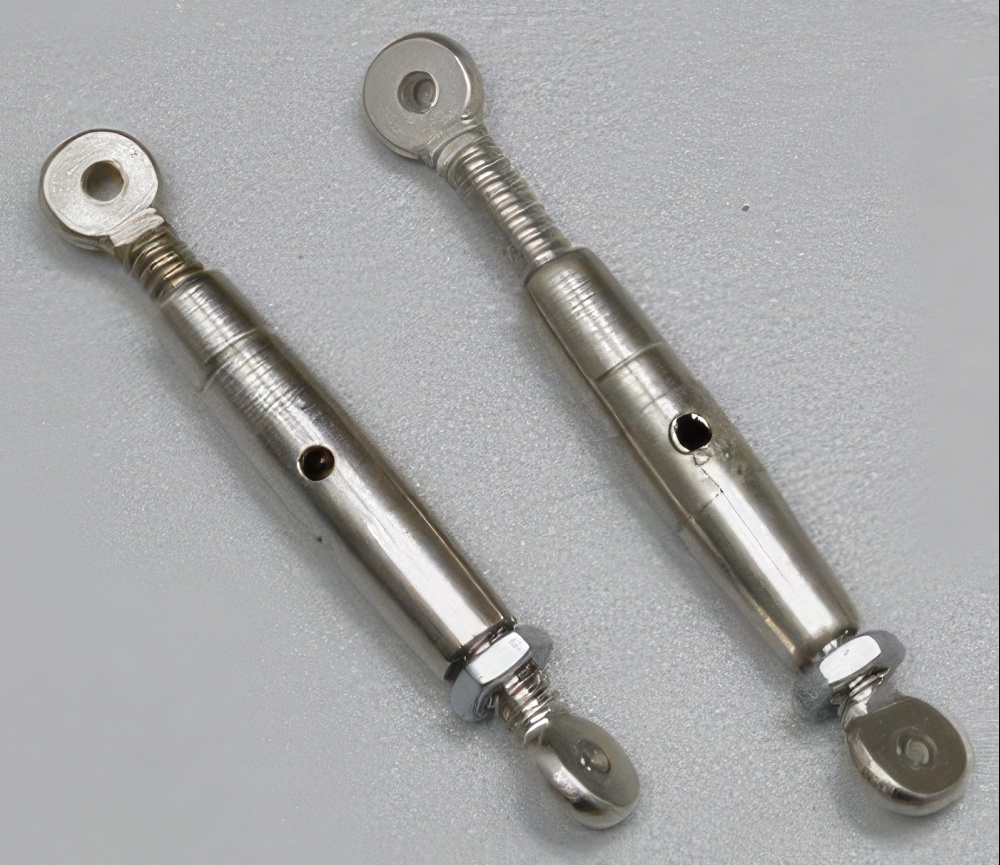

Du-Bro 1/4 SCALE TURNBUCKLES For discriminating builders, Du-Bro 1/4 Scale Turnbuckles are fully functional and look good, too. When attached to your guy wires (flying wires) they add a working touch of class to almost all larger models. Flying wire not included.
Perfect for many 1/4 scale applications, including strut attachments, flying wires, tailfin stab bracing, and bi-plane aileron connectors. Heavy duty steel and nickel plated. Includes 2 ea Threaded Rods Ends, 2 ea. solder rod ends, 4 ea #202 Steel Straps, 2 ea 12" long .093" diameter rod with 3/4" 4-40 Thread, 4 each 4-40 x 1/4" screws, and 4 each 4-40 nuts. (QTY/PKG: 2 assemblies ). Weight: 41 grams/assembly.

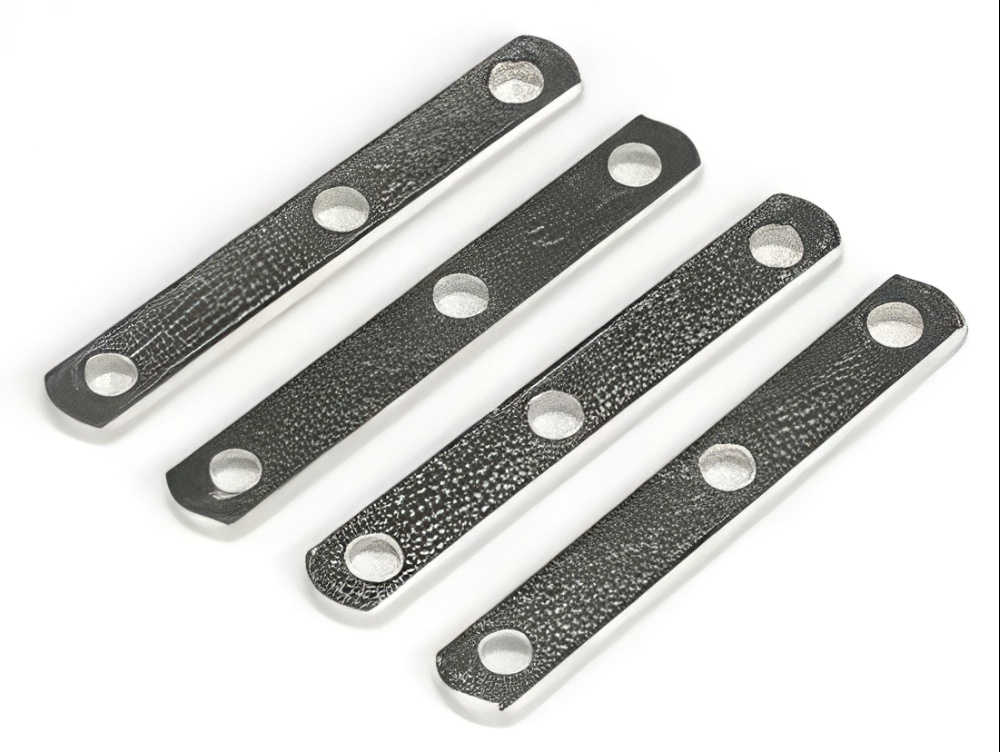

Pre-drilled for 4-40 screws or bolts. These 1/16" (1.5mm) thick straps fit perfectly into Du-Bro #302 and #303 Rod Ends. They can be bent or reworked to your applications. Straps are 1 5/8' in length. Use these straps for a variety of rigging. You may bend for various purposes such as tail surface rigging, flying wires or bipe wing rigging.
Perfect for many 1/4 scale applications, including strut attachments, flying wires, tail fin stab bracing, and bi-plane aileron connectors. Threaded internally 4-40. Heavy duty nickel plated steel. Includes 4-40 screws and hex nuts. For use with (4-40) threaded rods.
Perfect for many 1/4 scale applications, including strut attachments, flying wires, tail fin stab bracing, and bi-plane aileron connectors. Heavy duty steel and nickel plated. Includes screws and hex nuts. For use with .093 diameter (4-40) threaded rods.
SKU Number: DUB303
RC Aircraft Rigging and Struts
Biplanes, scale models, and vintage subjects often carry rigging wires and struts that brace the wings and add to the aircraft's authentic look. This category covers the couplers, turnbuckles, and brackets used to set up working or scale rigging on a model.
Couplers and Rod Ends
Steel rigging couplers with an eyelet hole are offered in 2-56 and 4-40 threads, and a Du-Bro 4-40 steel rod end assembly gives a clean threaded termination. These parts let you build up a rigging line to length and adjust it at the ends.
Turnbuckles and Brackets
A Du-Bro quarter-scale steel turnbuckle allows fine tensioning of a wire, while Du-Bro nickel-plated steel straps and a Flair five-hole bracket provide anchor points on the airframe. Together these handle both the function and the appearance of a rigged model, letting you set tension and hold it once the wires are in place.
Find the rigging parts for your project in the listings below.

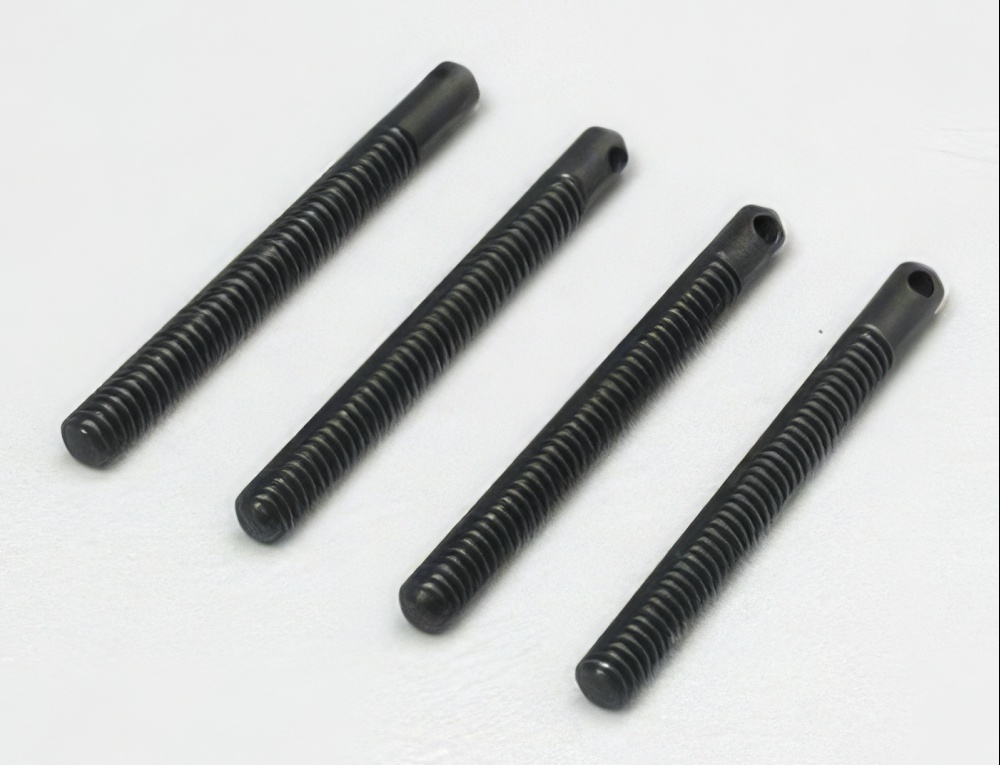

 "2-56 Steel 2-56 Rigging Coupler with Eyelet Hole")

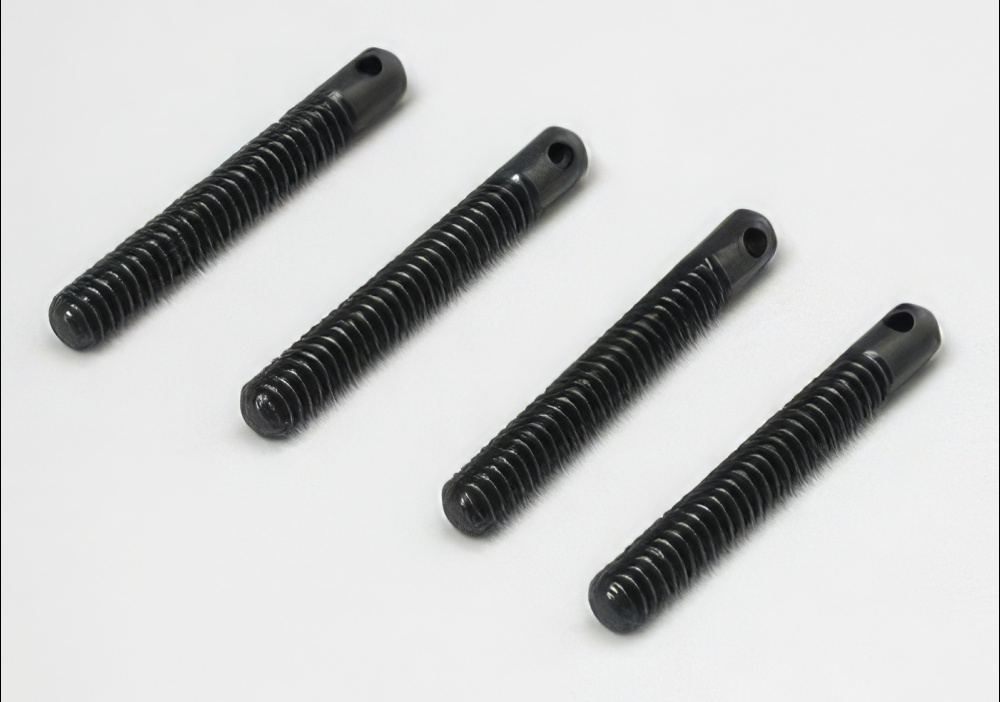

 "Steel 4-40 Rigging Coupler with Eyelet Hole")
 "Du-Bro Steel Turnbuckle 1/4 Scale (2)")
 "Du-Bro 4-40 Steel Rod End Assembly")
 "Du-Bro Steel Straps Nickle Plated for Rigging")
 "Du-Bro Body-Klips Small 8-Pack")
 "Du-Bro 4-40 Steel Thread-On Rod Ends")
 "Du-Bro 4-40 Steel Solder on Rod Ends")
