FDK (formerly Sanyo) Ultra high capacity AA Button End single cell.
Unlike Sanyo's other NiMH cells, these ultra high capacity AA cells should never be fast charged EVER. We recommend 70mah (or less) wall chargers (very slow overnight charging) only. Suggested maintenance charge rate 50-70mah. Manufacturer's listed internal resistance is 25mΩ.
FDK (formerly Sanyo). Most popular cell for S-280 and S-300 machines. Ultra long duration for GWS IPS powered ships like the Pico Stick and Tiger Moth. Perfect in 8 cell packs for Zero, Mustang and Beaver. Normally used in the 3 to 6 amp range but has applications up to 8 amps for short burst in fun-fly models. NOT for S-400, although I have used one with a lower current 7.2V S-400 setup previously. AAA size cell. Manufacturers listed internal resistance is 35mohm.

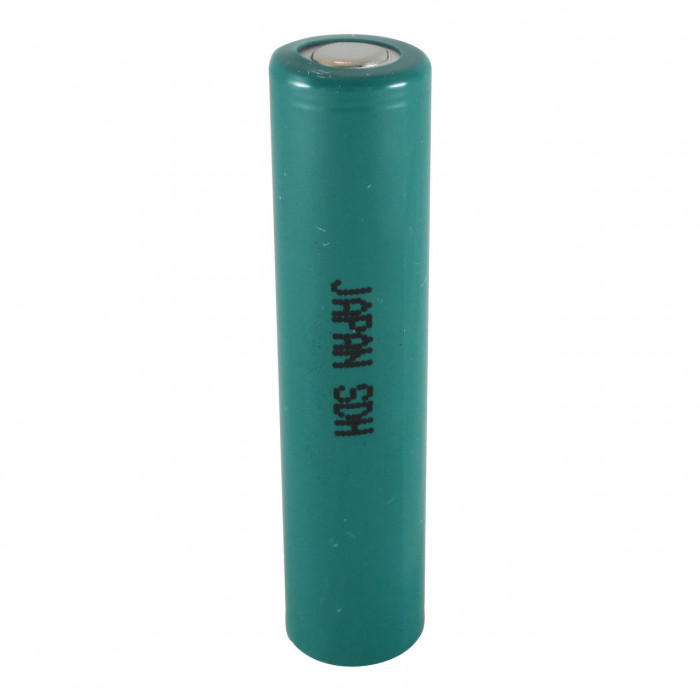

FDK/Sanyo Twicell NiMH HR-AAAUC 700mAh Flat top cell Twicell BatterySingle Cell 1.2 Volt
Capacity: 730 mAh Discharge Rate: 1 Amp Single Cell Length: 1.73" Single Cell Diameter: 0.41" Single Cell Weight: 0.43 ounces Termination: Flat Top (Tech Cell for Battery Packs)
Suggested charge rate non-peak detecting 70mAh or less, peak detecting 350-700mAh. Slow charging is always recommended.
FDK (formerly Sanyo) AA size cell. Perfect to build your RX and TX packs. Some uses for S-400, up to 14 amp range though not common. It is the same size as any "AA" cell, but with flat ends instead of button end. We carry these for those that desire to build their own custom soldered packs. The flat ends make it much easier to solder. These may function in some digital camera and similar devices but they may not due to missing "button". Manufacturers listed internal resistance is 25Ω.
Specifications:
Dimensions: 0.56" (L) x 0.56" (W) x 1.97" (H)
Dimensions (mm): 14.2 mm (L) x 14.2 mm (W) x 50 mm (H)
FDK (formerly Sanyo) single cell Ultra high capacity AA battery. Weight 30.3g, 1.07oz. FDK/Sanyo AA HR6 size cell. Button end cell.
Unlike Sanyo's other NiMH cells, these ultra high capacity AA cells should never be fast charged EVER. We recommend 70mah (or less) wall chargers (very slow overnight charging) only. Suggested maintenance charge rate 50-70mah. Manufacturer's listed internal resistance is 25m.
FDK(formerly Sanyo) single Twicell (formerly called Eneloop) NiMH AA Button End Cell.
Unlike FDK(Sanyo)'s other NiMH cells, these ultra high capacity AA cells should never be fast charged EVER. We recommend 70mah (or less) wall chargers (very slow overnight charging) only. Suggested maintenance charge rate 50-70mah. Manufacturers listed internal resistance is 25mΩ.
FDK HR-3UTG Twicell Battery - 1.2 Volt 1900mAh AA Ni-MH Button Top ( extending )
Chemistry: Nickel Metal Hydride - Ni-MH (Precharged)
Dimensions: Diameter 0.58"(14.35mm) x Height 1.99" (50.4mm)
May fit your screw-apart glow drivers (see notes below). Our most powerful Sub C size NiMH single cell.
Notes: Some glow drivers are smaller inside than others. These cells are double shrunk, removing outer layer of clear shrink takes off about .008" making od around .901 (22.88mm). Removing the inner printed layer of shrink gets the OD down to about .895" (22.733mm). The OD of the trusty CP2400 Nicad cell is about .877" (22.276mm). Measure the ID of your glow driver before ordering to be sure it will fit. Any cell may be run without shrink in aluminum glow drivers. Note date 01/04/12.
Suggested charge rate non-peak detecting 300mah or less, peak detecting .5 to 4 amps. (RX power wired packs are limited to 4 amps charge rate due to connector pins, the cell could sustain up to 10 amp peak charge rate with correct form charging, wiring and plugs.
FDK's original electrode manufacturing process, coupled with specialized current collectors minimize internal impedance, which in turn enables high-rate discharging and guarantees a stable discharge voltage.
Dimensions: 43.5mm High x 23.0mm Diameter
Weight: 0.14 oz (59 g)
Size: Sub C
Nominal Voltage: 1.2V
Typical Capacity: 3000mAh
Minimum Capacity: 2700mAh* *Minimum capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
Quick Charge Current: 3000mAh* *Typical capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
FDK (formerly Sanyo) cell Ultra high capacity AA battery. Weight 30.3g, 1.07oz. FDK/Sanyo AA HR6 size cell. Button end cell.
Unlike Sanyo's other NiMH cells, these ultra high capacity AA cells should never be fast charged EVER. We recommend 70mah (or less) wall chargers (very slow overnight charging) only. Suggested maintenance charge rate 50-70mah. Manufacturer's listed internal resistance is 25m.

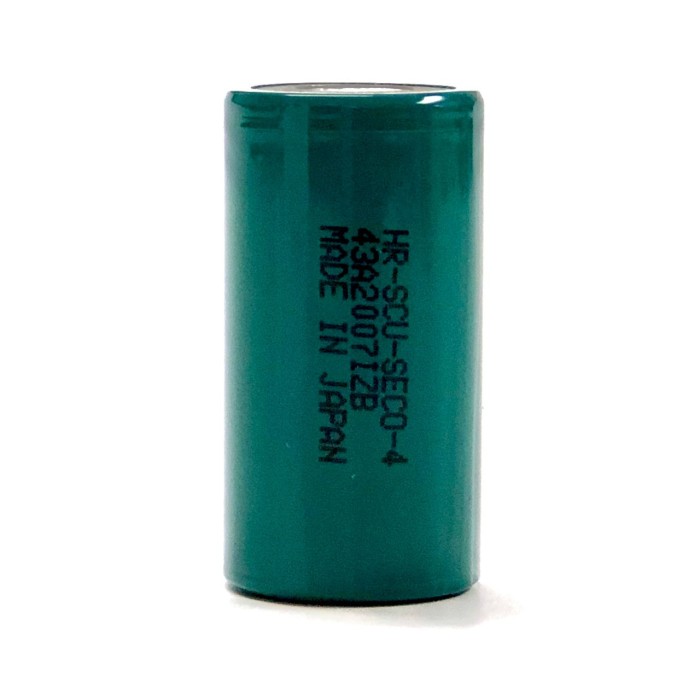

Made from Twicell 1.2V 3000mAh High Rate Sub C NiMH.
Our most powerful Sub C size NiMH cell.
Single Cell Notes: Some glow drivers are smaller inside than others. These cells are double shrunk, removing outer layer of clear shrink takes off about .008" making od around .901 (22.88mm). Removing the inner printed layer of shrink gets the OD down to about .895" (22.733mm). The OD of the trusty CP2400 Nicad cell is about .877" (22.276mm). Measure the ID of your glow driver before ordering to be sure it will fit. Any cell may be run without shrink in aluminum glow drivers. Note date 01/04/12.
Suggested charge rate non-peak detecting 300mah or less, peak detecting .5 to 4 amps. (RX power wired packs are limited to 4 amps charge rate due to connector pins, the cell could sustain up to 10 amp peak charge rate with correct form charging, wiring and plugs.
FDK's original electrode manufacturing process, coupled with specialized current collectors minimize internal impedance, which in turn enables high-rate discharging and guarantees a stable discharge voltage.
Single Cell Specifications:
Dimensions: 43.5mm High x 23.0mm Diameter
Weight: 0.14 oz (59 g)
Size: Sub C
Nominal Voltage: 1.2V
Typical Capacity: 3000mAh
Minimum Capacity: 2700mAh* *Minimum capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
Quick Charge Current: 3000mAh* *Typical capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
