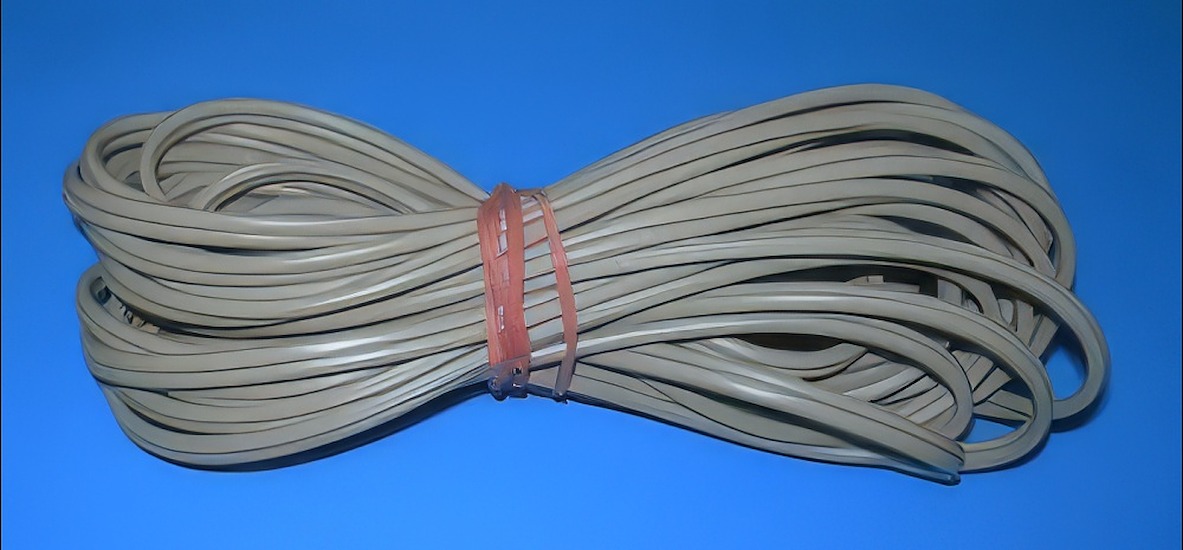

Surplus 2 wire zip cord. Vinyl insulation, 18 gauge. Useful for projects around the shop. Wire power panels, charge cords, light duty charger input extensions, repair a lamp or charge a battery on the other side of the garage. New old stock.
This size silicone wire is great for your high powered S-400 (14 amps)and smaller. High quality, supple with many fine strands. Wire consists of 3 bundles of 50 strands of 0.08mm wire(008x50x3). Thats 150 Strands. Gauge is approximately 18~19. OD of silicone jacket is approximately 2.4mm. Cross section area = 0.75mm sq.
This size silicone wire is great for typical Sub C battery type applications. Generally up to 35 amps and smaller. High quality, supple with many fine strands. Wire consists of 7 bundles of 57 strands of 0.008mm (008x57x7) wire = 399 strands, gauge is approximately 14. OD of silicone jacket is approximately 3-4mm (allow for manufacturing variances). Cross section area = 2.0mm sq.
Comes in package with 1 meter of each red and black.

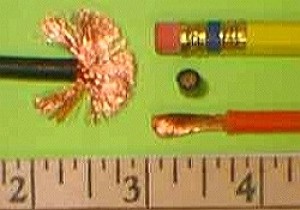

Wire for your high power applications. 50 amps is no problem here. High quality, supple with many fine strands. Wire consists of 7 bundles of 70 strands of .008mm wire = 490 strands, gauge is about 13. OD of silicone jacket is approximately 4-5mm (allow for manufacturer variances). Cross section area = 2.46mm sq.
Wire for your Extreme high power applications. 100 amps is no problem here. High quality, supple with many fine strands. Wire consits of 7 bundles of 113 strands of 0.08mm wire (008x113x7). That's 791 Strands. Gauge is approximately 11. OD of silicone jacket is approximately 5mm. Cross section area = 3.97mm sq.
Both Red & Black or Blue & Yellow, bulk length measured by feet. Note, new supply from factory came in as BLUE & YELLOW, understand your shipment may be in BLUE & YELLOW.
Heavy Duty 14.5 gauge (1.810mm^2) 360 strand wire. Insulation diameter 3.2mm. Great for power supply extensions, charge cords and other high amperage applications suiting a high strand count quality vinyl jacketed wire. Select desired length below, cut in bulk.
Notes: 15 guage is 1.65mm^2, 14 guage is 2.08mm^2. Thus, this wire @ 1.81mm^2 is approximately 14.5ga.
This size silicone wire is great for your high powered S-300 (up to 9 amps) and smaller. High quality, supple and many fine strands. Wire consists of 90 strands of 0.08mm wire (008x90). Gauge is 20. OD of silicone jacket is approximately 1.5mm. Cross section area = 0.33mm sq.
This size silicone wire is great for your high powered S-480, cobalt 400, Astro 020 or similar(20 amps)and smaller. High quality, supple with many fine strands. Wire consists of 7 bundles of 30 strands of .008mm wire. That is 210 Strands. Gauge is 17. OD of silicone jacket is approximately 3mm. Cross section area = 1.06mm sq.
Comes in package with 1 meter of each of both red and black.
Heavy Duty 22 gauge flat Ribbon Battery and Switch wire. 60wire/strand. 2 conductor, fine strand and supple. Select length desired below. Hint: Beware of wire size less than 22 gauge for any battery or switch wire. We've seen standard size switches with 24 and 26 gauge wire before and even battery packs with 24 gauge wire. This practice is substandard and low grade. Don't bottleneck your energy supply. 22 Gauge is the only acceptable size for your main power supply current path.
This size silicone wire is great for typical Sub C battery type applications. Generally, up to 35 amps and smaller. High quality, supple with many fine strands. Wire consists of 7 bundles of 57 strands of 0.08mm (008x57x7) wire = 399 strands, gauge is approximately 14. OD of silicone jacket is approximately 3-4mm (allow for manufacturing variances). Cross section area = 2.0mm sq.
Both red and black, bulk lengths measured by feet.
Wire for your high power applications. 50 amps is no problem here. High quality, supple with many fine strands. Wire consists of 7 bundles of 70 strands of .008mm wire = 490 strands, gauge is about 13. OD of silicone jacket is approximately 4-5mm (allow for manufacturer variances). Cross section area = 2.46mm sq.
Comes in package with 1 meter of each red and black.
Wire for your Extreme high power applications. 100 amps is no problem here. High quality, supple with many fine strands. Wire consits of 7 bundles of 113 strands of 0.08mm wire (008x113x7). That's 791 Strands. Gauge is approximately 11. OD of silicone jacket is approximately 5mm. Cross section area = 3.97mm sq.
Comes in package with 1 meter of each red and black. Note, new supply from factory came in as BLUE & YELLOW, understand your shipment may be in BLUE & YELLOW.
26 gauge 2-pole battery quality wire. 30 strand wire. 2 conductor, fine strand and supple. Light duty battery wire perfect for lighting systems and smaller craft with few small servos such as DLG and hand launch sailplanes. Select desired length below, cut in bulk.
30 gauge 2 pole battery quality wire. 20 strand wire. 2 conductor, fine strand and supple. Lightest duty battery wire perfect for lighting systems and smallest craft with few small servos such as DLG and hand launch sailplanes. Select desired length below, cut in bulk.
This size silicone wire is great for your high powered S-300 (up to 9 amps) and smaller. High quality, supple and many fine strands. Wire consists of 90 strands of 0.08mm wire (008x90). Gauge is 20. OD of silicone jacket is approximately 1.5mm. Cross section area = 0.33mm sq.
Comes in package with 1 meter of each of both red and black.
This size silicone wire is great for your high powered S-400 (14 amps)and smaller. High quality, supple with many fine strands. Wire consists of 3 bundles of 50 strands of 0.08mm wire(008x50x3). Thats 150 Strands. Gauge is approximately 18~19. OD of silicone jacket is approximately 2.4mm. Cross section area = 0.75mm sq.
Comes in package with 1 meter of each of both red and black.
This size silicone wire is great for your high powered S-480, cobalt 400, Astro 020 or similar(20 amps) and smaller. High quality, supple with many fine strands. Wire consists of 7 bundles of 30 strands of .008mm wire (008x30x7). That's 210 Strands. Gauge is 16. OD of silicone jacket is approximately 3mm. Cross section area = 1.06mm sq.
Both Red & Black, measured by feet.
SKU Number: RRCWS48016RBFT
2-Pole Silicone Battery Wire and Zip Cord
Two-conductor wire carries power in a single convenient run, and this category collects 2-pole silicone wire, zip cord, and battery ribbon wire in a range of gauges. Choosing gauge by the current a circuit carries keeps voltage drop and heat in check on power leads.
Silicone Wire by Gauge
The silicone wire here spans heavier gauges from 18 down to 11, including Sub C 14 gauge, Super Sub C 13 gauge, and Extreme Sub C 11 gauge, offered in red and black and other color pairs. Silicone insulation stays flexible, which makes routing and soldering easier.
Zip and Ribbon Cord
The 2-pole 18 gauge zip cord roll and heavy duty 20 gauge battery ribbon wire suit longer bulk runs and paired battery leads. Bulk lengths let you cut leads to size for a specific pack or install rather than working around a fixed cord.
Match the gauge and length below to the current your wiring needs to carry.
