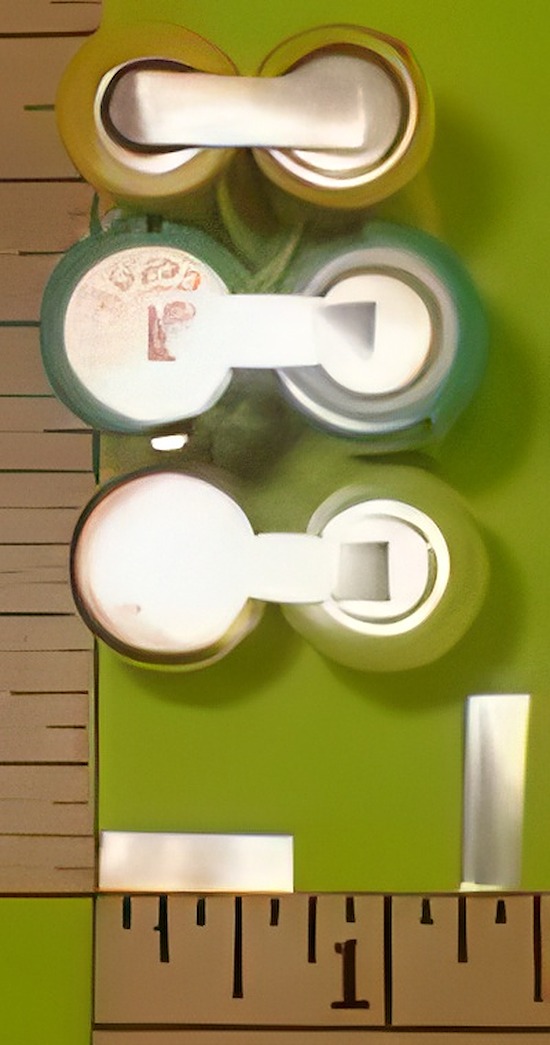

You'll be amazed how easily these tabs take solder. These fit "A" Diameter cells like 600AE, RRC1000, 1400AE, 1700AU, NiMH 2150-2700-4000 etc... Also fits any AA size cell and can be use for AAA size cells by cutting a bit shorter. Great for building or repairing your own electric flight packs (S-480 and smaller) or any RX or TX pack project. Examples shown, top of picture is AA cells, middle is 1700AUP and bottom is 600AE.
Specifications: Length: .750" Width: .187" Thickness .005" Approximate Maximum Current Capacity: 8-10Amps
Hint: Always use at least a 40 watt pencil iron (larger the tip the better) to solder cells. Never use a gun, even a 150 watt gun is too weak and slow due to low tip mass is easily cooled by the mass of a cell. 10 tabs each package.

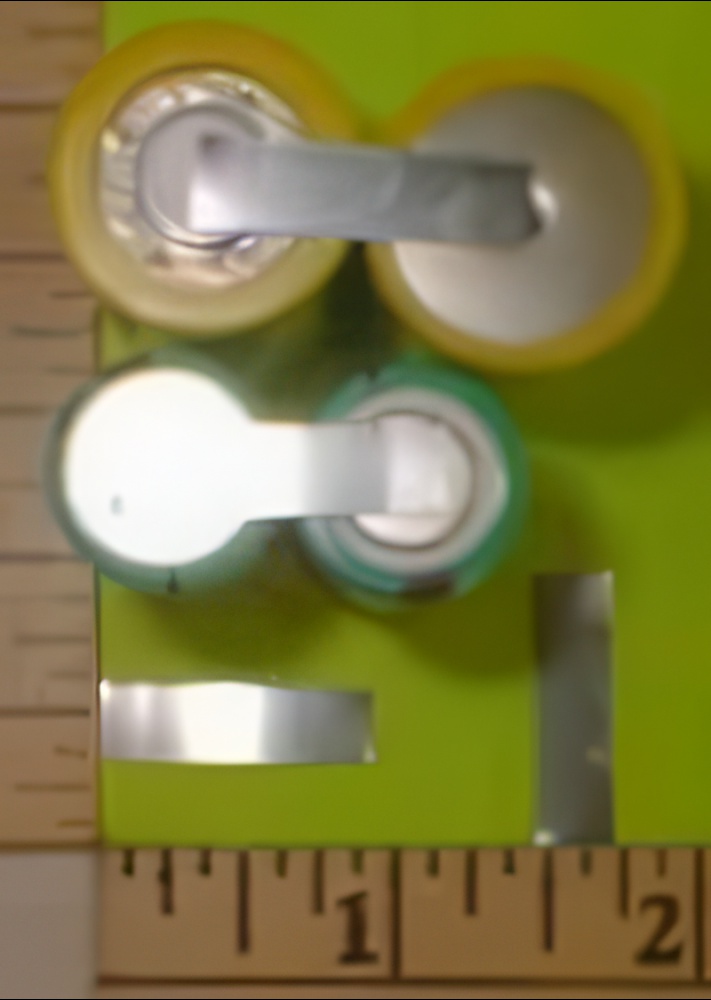

You'll be amazed how easily these tabs take solder. The large size fits Sub C Diameter cells like RC2000,CP-1300, CP-1700, CP-2400 (shown at top of picture), HR-3000 NiMH and many others. Bottom cells in picture are 1700AUP showing they can also be used on "A" size cells. Can be used on smaller cells if you trim with your cutters. Great for building or repairing your own electric flight packs or larger TX and RX packs. Great for anything 25 amps or less.
Specifications: Length: .920" Width: .250" Thickness: .005" Approximate Maximum Current Capacity: 15Amps
Hint: Always skuff a cell with sandpaper before soldering. Tin the cell, tin the tab, then seize the two together from the back of the tab. Hotter the iron, faster and better your work. 10 tabs per package.

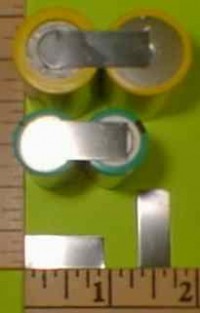

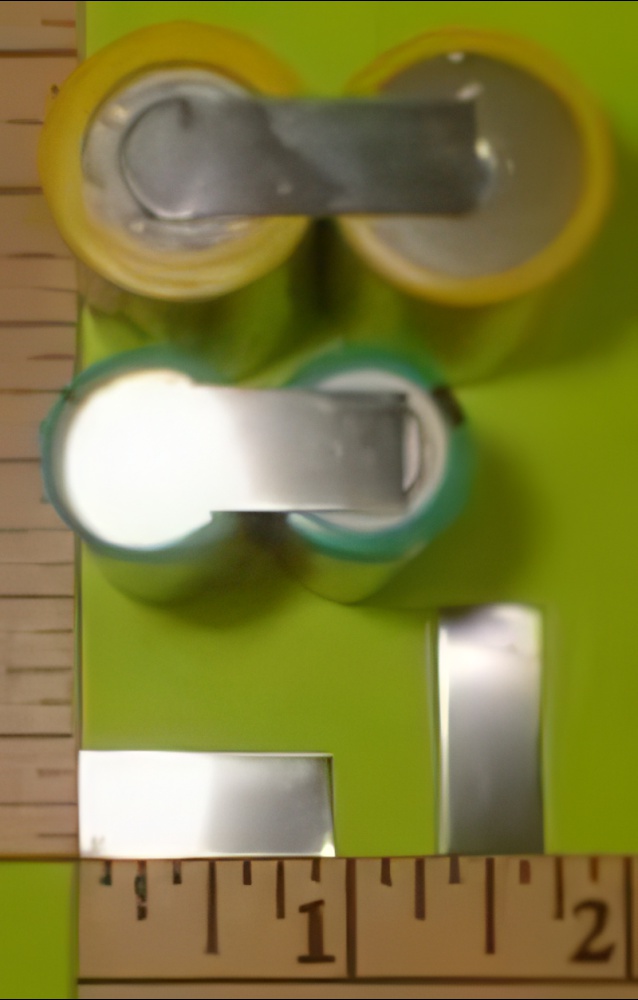

Heavy duty extra thick and wide for high current use. The large Heavy Duty size fits Sub C Diameter cells like RC2000,CP-1300, CP-1700, CP-2400(shown), HR-3000 NiMH and many others. Also shown on 1700AUP for "A" size example. Can be used on smaller cells if you trim with your cutters. Great for building or repairing your own electric flight packs or larger TX and RX packs. Great for anything 50 amps or less.
Specifications: Length: .925" Width: .375" Thickness: .010" Approximate Maximum Current Capacity: 40 Amps
Hint: Tabs want to stick to iron when you lift it leaving tab on the iron and not on cell, use a small hardwood stick or dowel as a finger to hold tab down while soldering to cells. 10 taps per package.
Braided solder wick is a popular tab material for building battery packs. It has the advantages of taking solder well and also being flexible. So, no loads from heating (expanding) or cooling (contracting) cells are put into the tabs and solder joints. As a solder wick, this material easily soaks up molten solder from PC boards allowing removal of components. 2mm wide, 5 feet long.
SKU Number: RRCSWK02
Battery Solder Tabs and Bars
Building or repairing a battery pack often means joining cells with conductive metal, and this category collects the solder tabs and bus bars used for that work. Tabs and bars carry current between cells and provide a surface to solder leads and balance wires onto.
Solder Tabs
Solder tabs are offered in small and large sizes, including a heavy duty large tab for higher-current packs. These thin plated strips are made to take solder readily so a joint can be formed quickly with less heat soaking into the cell.
Bus Bars
The Deans Pro Bars and the RRC Gold Bars, including the 33x8mm offset-tab version, act as bridging bars between cell terminals. An offset tab helps position the connection where it is needed when the cell layout is tight. Bars like these give a rigid, low-resistance link between terminals, which is useful when several cells are joined in a compact pack.
Pick the tabs or bars suited to your pack assembly in the listings below.
 "Small Solder Tabs")
 "Large Solder Tabs")
 "Large Solder Tabs Heavy Duty")
 "RRC Gold Bars 33x8mm, Offset Tab, 6-Pack")
 "RRC Gold Bars 33x8mm, 6PK")
 "Braided Solder Wick")
