Building on the success of the AGTT HS-45HB we now added the HS-5045HB to our lineup of micro digitals. Featuring our exclusive fully programmable digital circuit the HS-5045HB offers the economy and durability you've come to expect from a Hitec servo. Featuring Karbonite gears and a ball bearing supported output shaft, the HS-5045HB has our patented Advanced Gear Train Technology which was designed to allow the gears to slip instead of strip. | Torque (4.8) | Weight | Speed (4.8) | Bearings | Size SAE | Size Metric | Type |
|---|
| 13.88oz. | 0.29oz (8.5g) | 0.12s | 1BB | .944"x 0.392"x .880" | 24 x 9.96 x 22.35mm | Digital |
DISCONTIUED, WHILE SUPPLIES LAST
SKU Number: HRC35045S
|
|
|
|
| | |
The HS-5056MG Premium Digital Feather Servo is the perfect choice for larger indoor R/C, hand launch gliders, small electric Park flyers, and can handle the duties of smaller electric 3D aerobatic aircraft as well. Combined with a programmable digital amplifier, metal gears, and precision components that have been engineered to provide long lasting trouble free service, the HS-5056MG sets the standard for Digital, heavy duty, ultra micro servos. | Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
| 21 / 25 oz.in | 12.76g/0.45oz. | 0.11/0.09S | 1BB | 0.88 x 0.45 x 0.94 | 22.35 x 11.43 x 23.88 | Digital |
DISCONTINUED, WHILE SUPPLIES LAST
SKU Number: HRC35056
|
|
|
|
| | |
Hitec raised the bar by offering the ever popular HS-65 in a new digital version! The HS-5065MG High Performance Micro Servo features Hitec's digital, programmable circuit for incredible resolution, centering and holding torque. Featuring metal gears, a top-ball bearing, and at 31 oz./in. of torque with a quick transit time of 0.11 sec at 6 volts, it is no doubt THE choice for high performance micro helicopters, electric park flyers, and 1/18 scale cars. | Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
| 25 / 31 oz.in | 11.91g/0.42oz. | 0.20/0.17S | 1BB | 0.92 x 0.45 x 0.94 | 23.37 x 23.88 x 23.88 | Digital |
Choose Quantity Option below. Want 1, 2, or 3 servos? Select first option, then enter quantity 1, 2, or 3. Want a bulk discount? Select 4-Pack, then enter how many 4-Packs you want.
SKU Number: HRC35065S
|
|
|
|
| | |
The HS-5085MG Premium Digital Feather Servo is the perfect choice for larger indoor R/C, hand launch gliders, small electric Park flyers, and can handle the duties of smaller electric 3D aerobatic aircraft as well. Combined with a programmable digital amplifier, metal gears, and precision components that have been engineered to provide long lasting trouble free service, the HS-5085MG sets the standard for Digital, heavy duty, ultra micro servos. | Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
| 50 / 60 oz.in | 21.83g/0.77oz. | 0.17/0.13S | 1BB | 1.14 x 0.51 x 1.18 | 28.96 x 12.95 x 29.97 | Digital |
Choose Quantity Option below. Want 1, 2, or 3 servos? Select first option, then enter quantity 1, 2, or 3. Want a bulk discount? Select 4-Pack, then enter how many 4-Packs you want.
SKU Number: HRC35085S
|
|
|
|
| | |
The HS-5245MG is latest addition to Hitec's ever evolving digital servo line. With a custom designed programmable digital circuit and our unique Alumite gear train technology the the HS-5245MG is ideal for applications that call for a small lightweight, high speed, high torque servo. | Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
| 61/76oz. 4.4/5.5 kg.cm | 32g/1.12oz. | 0.15/0.12s | 2BB | 1.3"x 0.7"x 1.2" | 32 x 17 x 31mm | Digital |
Choose Quantity Option below. Want 1, 2, or 3 servos? Select first option, then enter quantity 1, 2, or 3. Want a bulk discount? Select 4-Pack, then enter how many 4-Packs you want. TEMPORARILY OUT OF STOCK
SKU Number: HRC35245S
|
|
|
|
| | |
Hitec's best servo just got better. Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333 oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case. | Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
| 250/333 - 18.0/24.0kg.cm. | 2.29oz./64.92g | 0.19/0.15s | 2BB | 1.57 x 0.78 x 1.45" | 39.88 x 19.81 x 36.83mm | Digital |
Choose Quantity Option below. Want 1, 2, or 3 servos? Select first option, then enter quantity 1, 2, or 3. Want a bulk discount? Select 4-Pack, then enter how many 4-Packs you want.
SKU Number: HRC37955S
|
|
|
|
| | |
The new HS-7985MG High Torque Digital Servo has the added benefit of our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection. The technology doesn't stop at the circuit board, with a high performance coreless motor, dual ball bearing supported output shaft, bushing supported gear shafts and our Heavy Duty Metal gear train the HS-7985MG was designed to withstand the stress of larger high performance aircraft and on/off road vehicles. Programmable Features Include: Dead Band Width, Direction of Rotation, Speed of Rotation (slower), End Points, Neutral Points, Fail Safe On/Off, Fail Safe Point, Resolution* (default is high resolution) and Overload Protection* (default is off). *These features are only programmable with the HFP-20 field programmer. Replacemts part numbers are: 55314 - Gear Set, 55423 - Case Set | Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
| 144/172oz.10.4/12.4 kg.cm | 61.80g /2.18 oz. | 0.16/0.13s | 2BB | 1.57 x 0.78 x 1.45" | 39.88 x 19.81 x 36.83mm | Digital |
Choose Quantity Option below. Want 1, 2, or 3 servos? Select first option, then enter quantity 1, 2, or 3. Want a bulk discount? Select 4-Pack, then how many 4-Packs you want.
SKU Number: HRC37985S
|
|
|
|
| | |
Hitec HS-605BB - Ball Bearing Servo Specifications Modulation: Analog Torque: 4.8V: 76.40 oz-in (5.50 kg-cm) 6.0V: 94.40 oz-in (6.80 kg-cm) Speed: 4.8V: 0.17 sec/60° 6.0V: 0.13 sec/60° Weight: 1.73 oz (49.0 g) Dimensions: Length:1.59 in (40.4 mm) Width:0.77 in (19.6 mm) Height:1.57 in (39.9 mm) Motor Type: 3-pole Gear Type: Plastic Rotation/Support: Dual Bearings Rotational Range: Pulse Cycle: 20 ms Pulse Width: 900-2100 us Connector Type: Hitec HS-605BB Product Number: 31605S DISCONTINUED BY HITEC, LAST ONE LEFT!
SKU Number: HRC31605S
|
|
|
|
| | |
Since its introduction, the HS-55 has set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service! Enter the new HS-5055MG digital, metal geared version... with this new servo Hitec takes ultra micro performance to the next level without breaking the bank. The new HS-5055MG is a perfect choice for " smaller" high performance electric helicopters, aircraft and sail planes. Features Digital Circuit for Increased Performance and Holding Power Smooth Coreless Motor Rugged Metal Gears Standard Programmable Digital Circuit Economical, Feather, Digital Servo Programmable Functions End Point Adjustments Direction Fail Safe Dead Band Speed (Slower) Data Save / Load Program Reset Accessories Metal Gear Set Plastic Case Set Applicable Horns HS-5055MG Servo Specifications Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60?) 0.20 ~ 0.17 Maximum Torque Range oz. / in. 18 ~ 22 Maximum Torque Range kg. / cm. 1.3 ~ 1.6 Current Draw at Idle 8 mA No Load Operating Current Draw 120 mA Stall Current Draw 700 mA Dead Band Width 6 us Physical Specifications Dimensions (Inches) 0.89 x 0.45 x 0.94 Dimensions (Metric) 22.8 x 11.6 x 24.0 Weight (Ounces) 0.33 Weight (Gram) 9.5 Circuit Type G1 Programable Digital Motor Type 3 Pole Metal Brush Ferrite Gear Material Metal Bearing Type None Output Shaft (type / Omm) Feather 15 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 28 / 20 Radio Control Applications Parkflyer < 36 oz. Sport Plane 20 - 35 oz. Sailplane <2 meter / DLG 3D Performance Foamie Scale N / A Electric Helicopter 200mm Gas Helicopter N / A On Road N / A Monster Truck N / A Buggies N / A Truggies N / A Short Course / Truck N / A Crawlers N / A Sail Boat N / A Power Boat 1/18th Choose Quantity Option below. Want 1, 2, or 3 servos? Select first option, then enter quantity 1, 2, or 3. Want a bulk discount? Select 4-Pack, then enter how many 4-Packs you want.
SKU Number: HRC35055S
|
|
|
|
| | |
Watch out, here it comes! Our high voltage, coreless HS-7245MH servo delivers exceptional speed and torque in a compact package. Built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance just like its brother, the HS-7235MH. Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the full-size muscle of this servo will make you the master of your RC domain. Features: - Our Best High Speed Mini Servo
- Efficient Coreless Motor
- Heavy Duty Metal Gear Train
- Dual Ball Bearing
- 7.4v 2-Cell LiPo Capability
- G2.5 Fully Programmable Digital Circuitry
Programmable Functions: - End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Overload Protection
- Resolution
- Data Save / Load
- Program Reset
HS-7245MH Servo Specifications Performance Specifications: - Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
- Speed (Second @ 60?) 0.13 ~ 0.11
- Maximum Torque Range oz. / in. 72 ~ 89
- Maximum Torque Range kg. / cm. 5.2 ~ 6.4
- Current Draw at Idle 12 mA
- No Load Operating Current Draw 190 mA
- Stall Current Draw 1,600 mA
- Dead Band Width 2 us
Physical Specifications: - Dimensions (Inches) 1.28 x 0.66 x 1.29
- Dimensions (Metric) 32.4 x 16.8 x 32.8
- Weight (Ounces) 1.20
- Weight (Gram) 34.0
- Circuit Type G2.5 Programable Digital
- Motor Type Coreless Metal Brush
- Gear Material Metal
- Bearing Type Dual Ball Bearing
- Output Shaft (type / Omm) Standard 24
- Case Material Plastic
- Dust / Water Resistance N / A
- Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications: - Parkflyer N / A
- Sport Plane 4 - 12 lbs.
- Sailplane 2 meters
- 3D Performance 4 - 12 lbs.
- Scale 4 - 12 lbs.
- Electric Helicopter 500mm
- Gas Helicopter 50-59 Class
- On Road 1/12th
- Monster Truck N / A
- Buggies 1/12th
- Truggies N / A
- Short Course / Truck N / A
- Crawlers N / A
- Sail Boat <1 meter
- Power Boat N / A
SKU Number: HRC37245S
|
|
|
|
| | |

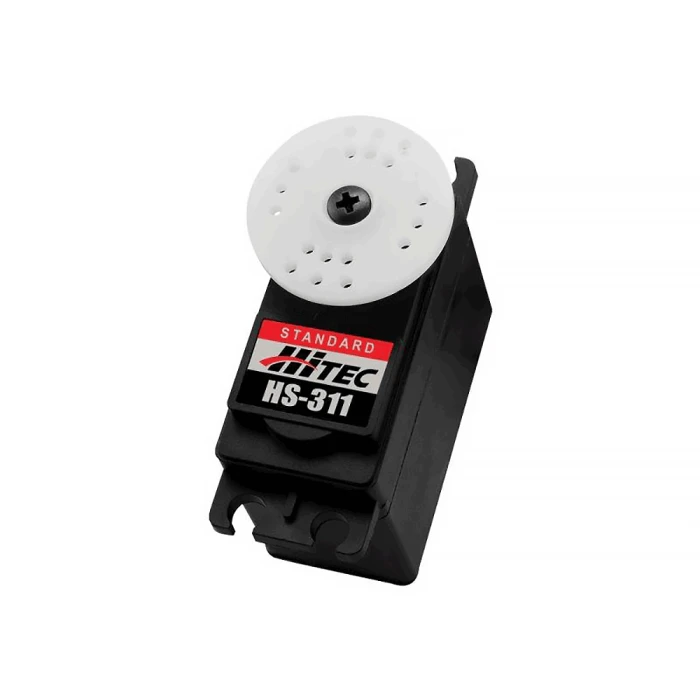

The HS-311 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today's R/C market. Features: - Our Low Cost Standard Size Servo
- Reliable Three-Pole Ferrite Motor
- Durable Resin Gears
- Popular Selling Servo
| Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
| 41.66/51.38 oz.in. - 3~3.7kg.cm | 1.51oz./43g | 0.19~0.15s | | 1.57" x 0.78" x 1.43" | 40.0 x 20.0 x 36.50mm | Analog |
HS-311 Servo Specifications Performance Specifications Operating Voltage Range (Volts DC): 4.8V ~ 6.0V Speed (Second @ 60°): 0.19 ~ 0.15 Maximum Torque Range: oz. / in. 41.66 ~ 51.38 Maximum Torque Range: kg. / cm. 3.0 ~ 3.7 Current Draw at Idle: 7.7 mA No Load Operating Current Draw: 180 mA Stall Current Draw: 800 mA Dead Band Width: 5 us Physical Specifications Dimensions (Inches): 1.57 x 0.78 x 1.43 Dimensions (Metric): 40.0 x 20.0 x 36.5 Weight (Ounces): 1.51 Weight (Gram): 43.0 Circuit Type: HT7003 Analog SMT Motor Type: 3 Pole Metal Brush Ferrite Gear Material: Nylon Bearing Type: None Output Shaft (type / Omm): Standard 24 Case Material Plastic: Dust / Water Resistance: N / A Connector Gauge (AWG) / Strand Count: 25 / 40
SKU Number: HRC31311S
|
|
|
|
| | |
Hitec's HS-5625MG is a high-performance digital servo engineered for enthusiasts who demand accuracy, speed, and rugged reliability. Featuring a high-torque output combined with swift response time, this servo is an excellent choice for applications such as RC vehicles, aircraft, helicopters, boats, and robotics that require strong and responsive control. Its digital circuitry ensures precise centering and smooth movement, while the metal gear train provides long-lasting durability under heavy loads. Built to endure tough conditions, the HS-5625MG delivers outstanding performance in both high-stress and high-speed environments. Its cored motor and dual ball bearings work together to produce powerful, efficient movement with minimal backlash, making it ideal for demanding tasks that require tight control. NOTE: The HS-5625MG is the digital version of the HS-625MG. | Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
109.7/130.5 oz
7.9/9.4 kg cm | 60g /1.95oz | 0.17/0.14s | 2BB | 1.6"x 0.78"x 1.49" | 41 x 20 x 38mm | Digital |
Key Features: - High Speed Response: With a swift transit time of just 0.14 sec/60° @ 6.0V, the HS-5625MG is engineered for applications that demand quick, accurate control.
- Metal Gear Train: Built with 1 MP (Metal + Plastic) & 3 Metal Gears, it provides long-lasting performance and increased crash resistance over plastic gear counterparts. Cored Metal Brush Motor: Designed with Hitec's cored motor, the HS-5625MG provides dependable speed, torque, and long service life.
- Ball Bearing Support: Even during heavy-duty use, the dual ball bearings on the output shaft ensure smooth operation and reduced wear.
- Standard Fit: Its standard size makes it compatible with many popular RC platforms. Fully Programmable: Via the Hitec DPC-20 and/or HFP-30 digital servo programmers, the performance of the HS-5625MG can be fined tuned for customized response curves, fail-safe settings, and more.
Specifications: - Operating Voltage Range: 3.5V ~ 6.8V (2S LiFe)
- Speed:4.8V: 0.17 sec/60°; 6.0V: 0.14 sec/60°
- Torque: 4.8V: 109.7 oz-in (7.9 kgf-cm); 6.0V: 130.5 oz-in (9.4 kgf-cm)
- Dimensions: 1.60 x 0.78 x 1.49 in (40.8 x 20.0 x 37.8mm)
- Weight: 1.95 oz (60.0g)
- Position Sensor Type: Digital
- Output Spline: 24T
Ideal Applications: - Large-scale and competition-grade models
- RC monster trucks and crawlers
- Gas and glow-powered aircraft
- High-performance RC boats
- Robotics and automation projects
SKU Number: HRC35625
|
|
|
|
| | |

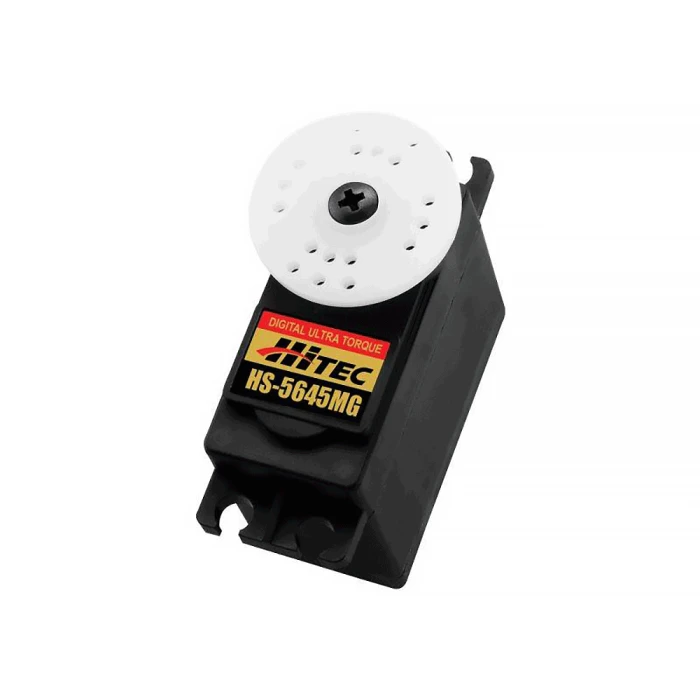

Upgrade your RC setup with Hitec's HS-5645MG Digital Servo, engineered for hobbyists who demand power, precision, and proven reliability. Featuring high-torque output, digital accuracy, and a robust metal gear train, the HS-5645MG is a top choice for demanding applications like RC vehicles, airplanes, crawlers, boats, and robotics. This servo's advanced digital circuitry delivers enhanced centering and holding power while providing ultra-smooth, consistent motion across the entire range. Built to handle the stress of high-load scenarios, the HS-5645MG includes a powerful cored motor and dual ball bearings for smooth operation and extended life. The durable metal gear train ensures you get consistent performance under load, making it ideal for 1/8 scale vehicles, aerobatic planes, and large-scale models. NOTE: The HS-5645MG is the digital version of the HS-645MG. | Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
143.0/168.0oz
10.3/12.1 kg cm | 60g/2.12oz | 0.23/0.18s | 2BB | 1.61"x 0.79"x 1.49" | 40 x 20 x 38mm | Digital |
Key Features: High Torque Output: With a torque rating of up to 168 oz-in @ 6.0V, the HS-5645MG delivers exceptional strength for steering, throttle, and control surface applications. Metal Gear Train: Built with 1 MP (Metal + Plastic) & 3 Metal Gears, it provides long-lasting performance and increased crash resistance over plastic gear counterparts. Cored Metal Brush Motor: Designed with Hitec's cored motor, the HS-5645MG provides dependable speed, torque, and long service life. Ball Bearing Support: Even during heavy-duty use, the dual ball bearings on the output shaft ensure smooth operation and reduced wear. Standard Fit: Its standard size makes it compatible with many popular RC platforms. Fully Programmable: Via the Hitec DPC-20 and/or HFP-30 digital servo programmers, the performance of the HS-5645MG can be fined tuned for customized response curves, fail-safe settings, and more. Specifications: - Operating Voltage Range: 3.5V ~ 6.8V (2S LiFe)
- Torque: 4.8V: 143.0 oz-in (10.3 kgf-cm); 6.0V: 168.0 oz-in (12.1 kgf-cm)
- Speed: 4.8V: 0.23 sec/60°; 6.0V: 0.18 sec/60°
- Dimensions: 1.61 x 0.79 x 1.49 in (40.0 x 20.0 x 37.8mm)
- Weight: 2.12 oz (60.0g)
- Position Sensor Type: Digital
- Output Spline: 24T
Ideal Applications: - Large-scale and competition-grade models
- RC monster trucks and crawlers
- Gas and glow-powered aircraft
- High-performance RC boats
- Robotics and automation projects
SKU Number: HRC35645
|
|
|
|
|
