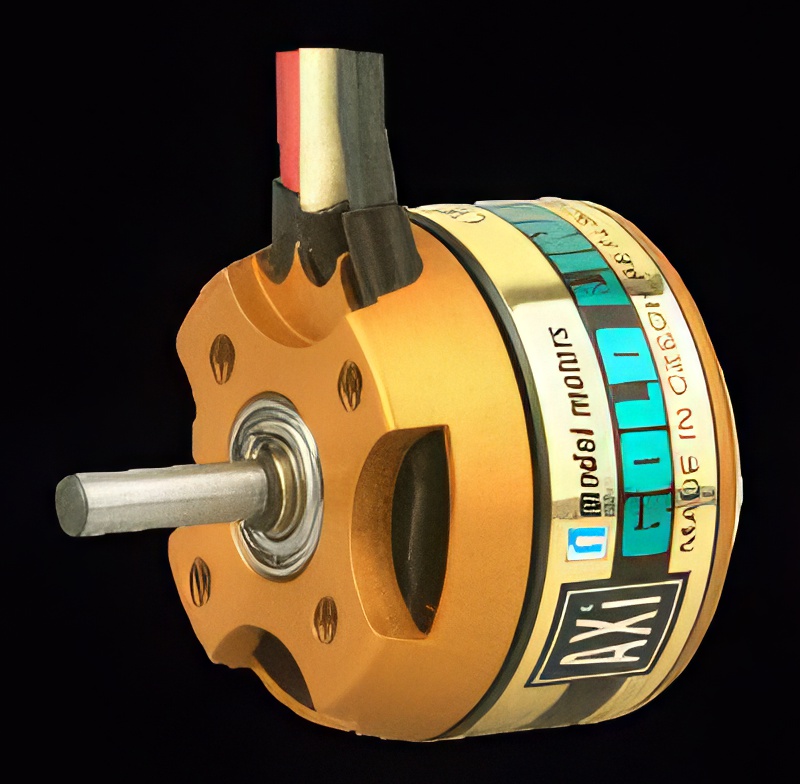

Two ball bearings, hardened shaft, great replacement in many S-300 and S-400 applications.
Specification : Voltage range 6-8 (10)cells RPM per Volt 1420 RPM/V Max. Efficiency with ESC 82% Max. Efficiency Current 5-9 A (>74%) Max. loading 20 A / 30 s No load Current / 10V .6 A Internal resistance 155 mohm Dimensions 24,1x47,5 mm Shaft Diameter 3.17 mm Weight 45 g
Normaly flown on 2-3 Lipo's. Motor capable of 66 watts or more. Normally propped max 11A. Great motor to wake up Any S-300 brushed models. Great conversion for any .049 to .15 size model. Typical Props are 7-4 to 8.5-5. Once you've had an external rotater, it's hard to go back to a gear whine setup.
Specification Voltage range 6-8 cells or 2-3 Lipo RPM per Volt 1,420 RPM/V Max efficiency ? Max. Efficiency Current ?? Max. loading 11 A / 30 sec No load Current ? Internal resistance ? Dimensions 28x26 mm Shaft Diameter 3.2 mm Weight 1.6oz. Recomended model weight 17oz. max.
Normaly flown on 6-10 cells or 2-3 Lipo's. Motor capable of 66 watts or more. Normally propped max 8A. Great motor to wake up Any S-300 brushed models. Great conversion for any .049 to .15 size model. Typical Props are 8.5x5 to 10x5. Once you've had an external rotater, it's hard to go back to a gear whine setup.
Specification Voltage range 6-10 cells or 2-3 Lipos. RPM per Volt 1180 RPM/V Max efficiency ? Max. Efficiency Current ?? Max. loading 8 A / 30 sec No load Current ? Internal resistance ? Dimensions 28x26 mm Shaft Diameter 3.2 mm Weight 1.6oz. Recomended model weight 17oz. max.
Normaly flown on 4-8 cells or 2-3 Lipo's. Motor capable of 66 watts or more. Normally propped max 16A. Great motor to wake up Any S-300, S-400 brushed models. Great conversion for any .049 to .25 size model. Typical Props are 7.5-4 to 9-6. Once you've had an external rotater, it's hard to go back to a gear whine setup.
Specification Voltage range 6-8 cells or 2-3 Lipo RPM per Volt 1190 RPM/V Max efficiency ? Max. Efficiency Current ?? Max. loading 16 A / 30 sec No load Current ? Internal resistance ? Dimensions 28x26 mm Shaft Diameter 3.2 mm Weight 2oz. Recommended model weight 28oz. max.
Normaly flown on 6-8 cells or 2-3 Lipo's. Motor capable of 66 watts or more. Normally propped max 12A. Great motor to wake up Any S-300 brushed models. Great conversion for any .049 to .15 size model. Typical Props are 7-4 to 8.5-5. Once you've had an external rotater, it's hard to go back to a gear whine setup.
Suggested Packs Lipoly - 2-3 cells 360-1500.
Specification Voltage range 6-8 cells or 2-3 Lipo RPM per Volt 840 RPM/V Max efficiency ? Max. Efficiency Current ?? Max. loading 12 A / 30 sec No load Current ? Internal resistance ? Dimensions 28x26 mm Shaft Diameter 3.2 mm Weight 2oz. Recomended model weight 28oz. max.
This is a 'TIL IT'S GONE Special. Was $149.00, Now $89. Note, new in package merchandise, we no longer do business with Model Motors in the CZ Republic. Any warranty issue (I'm not expecting any) must be handled through them, no returns directly to Radical RC on this product for any reason.
Brushless motor, 20mm size with added diameter from cooling fins, uses neodymium magnets, carbon case and unique solder posts are manufactured using advanced technologies from finest materials - our standard. Twin ballraced hardened steel shaft and overall robust but very lightweight construction ensure very long lifetime. This small beauties are suitable for use with gearbox or in ducted fans. Tapped hols in front of case match S-400/480 motors making it compatible with many S-400/480 type gearbox's.
I use one of these on a delta and it's sick fast. Enjoy!
Specifications: Voltage range 6-8 cells RPM per Volt 6,370 RPM/V Max. Efficiency with ESC 77% Max. Efficiency Current 14-22 A (>70%) Max. loading 28 A / 30 s No load Current / 8V w gear 3,9 A Internal resistance 49 mohm Dimensions with gearbox 24,8x65 mm Shaft Diameter Gearbox 4 mm Weight with gearbox 77 g Recomended model weight 600 - 1200 g Propeller range VMGM 6,00:1 6 cells prop 12"x8" VMGM 6,00:1 7 cells prop 11"x7" VMGM 6,00:1 8 cells prop 10"x6"
Normaly flown on 8-10 cells or 2-3 Lipo's. Motor capable of 66 watts or more. Normally propped max 40A. Great motor to wake up Any S-300 brushed models. Great conversion for any 60 size model. Typical Props are 10x6 to 12x8. Once you've had an external rotater, it's hard to go back to a gear whine setup.
Specification Voltage range 6-8 cells or 2-3 Lipo RPM per Volt 1100 RPM/V Max efficiency ? Max. Efficiency Current ?? Max. loading 2.8 A / 30 sec No load Current ? Internal resistance 42ohm Dimensions 1 3/8 x 2 1/4 Shaft Diameter 5 mm Weight 5.8oz. Recomended model weight 5lb +.
Normaly flown on 10-18 cells or 4S Lipo's. Motor capable of 66 watts or more. Normally propped max 40A. Great conversion for any .40-.60 size modelsl. Typical Props are 11x6 to 14x7. Once you've had an external rotater, it's hard to go back to a gear whine setup.
Suggested Packs Lipoly - 4S 2P 4000mah or greater. Specification Voltage range 6-8 cells or 4S Lipo RPM per Volt 1,420 RPM/V Max efficiency ? Max. Efficiency Current ?? Max. loading 1.2 A / 30 sec No load Current ? Internal resistance 62ohm Dimensions 38mm (1-3/8") diameter, 54mm (2-1/4") long. Shaft Diameter 5 mm Weight 6.3oz. Recomended model weight 4 1/2 to 6 1/2# max.
Normaly flown on 2-3 Lipo's. Motor capable of 66 watts or more. Normally propped max 11A. Great motor to wake up Any S-300 brushed models. Great conversion for any .049 to .15 size model. Typical Props are 7-4 to 8.5-5. Once you've had an external rotater, it's hard to go back to a gear whine setup.
Specification Voltage range 6-8 cells or 2-3 Lipo RPM per Volt 1,420 RPM/V Max efficiency ? Max. Efficiency Current ?? Max. loading 11 A / 30 sec No load Current ? Internal resistance ? Dimensions 28x26 mm Shaft Diameter 3.2 mm Weight 1.6oz. Recomended model weight 17oz. max.
New motor in original package. Excellent quality. Tired of your overheating chineese motor? Try and AXI and see why a little more for an efficient setup is a worthwhile investment. Generally, I'd use the motor on models 7-15 pounds, Sailplanes into the 20's.
Specifications: No. of cells max 32 max. 10s Li-Poly RPM/V 249 RMP/V Max. efficiency 92% Max. efficiency current 10 - 36 A (>85%) No load current / 10 V 1,4 A Current capacity 50 A/60 s Internal Resistance 57 mohm Dimensions (diameter. x lenght) 63x54 mm Shaft diameter 8 mm Weight with cables 495 g
Other Major Vendor Price $249.99 Setup and Performance Chart
# Cells
Prop
Amps
Watts In
RPM
Thrust oz.
Pitch Speed MPH
7
18x14
39.6
1040
4,660
136
61
7
20x14
49.0
1286
4,210
161
55
8
18x12
43.8
1314
5,310
167
59
8
20x12
54.2
1626
4,800
195
54
10
16x12
46
1725
1234
189
77
10
18x10
53.8
2018
6,480
226
60
12
14x10
38.6
1737
10,180
188
84
12
16x10
53.4
2403
8,117
247
76
Estimates based on manufacturers provided constants using E-Calc. High Quality 3200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.
New motor in original package. Excellent quality. Tired of your overheating chineese motor? Try and AXI and see why a little more for an efficient setup is a worthwhile investment. Generally, I'd use the motor on models 7-15 pounds, Sailplanes into the 20's.
Specifications: No. of cells max 32 max. 10s Li-Poly RPM/V 206 RMP/V Max. efficiency 93% Max. efficiency current 8 - 32 A (>85%) No load current / 10 V 1,1 A Current capacity 45 A/60 s Internal Resistance 84 mohm Dimensions (diameter. x lenght) 63x54 mm Shaft diameter 8 mm Weight with cables 495 g
Other Major Vendor Price $249.99 Setup and Performance Chart
# Cells
Prop
Amps
Watts In
RPM
Thrust oz.
Pitch Speed MPH
8
18x12
33
999
5,090
136
57
8
20x10
38.9
1167
4,910
175
46
10
16x8
25
938
6,830
142
50
10
17x10
35.3
1324
6,640
184
60
10
16x12
33.8
1324
6,560
184
60
10
18x10
33.9
1271
6,510
167
73
12
14x12
30.7
1382
8,070
160
90
12
15x10
32.8
1476
7,990
187
74
Estimates based on manufacturers provided constants using E-Calc. High Quality 3200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.
 "Replacement Bearings for S-300 and S-400 applications - 2208/26")

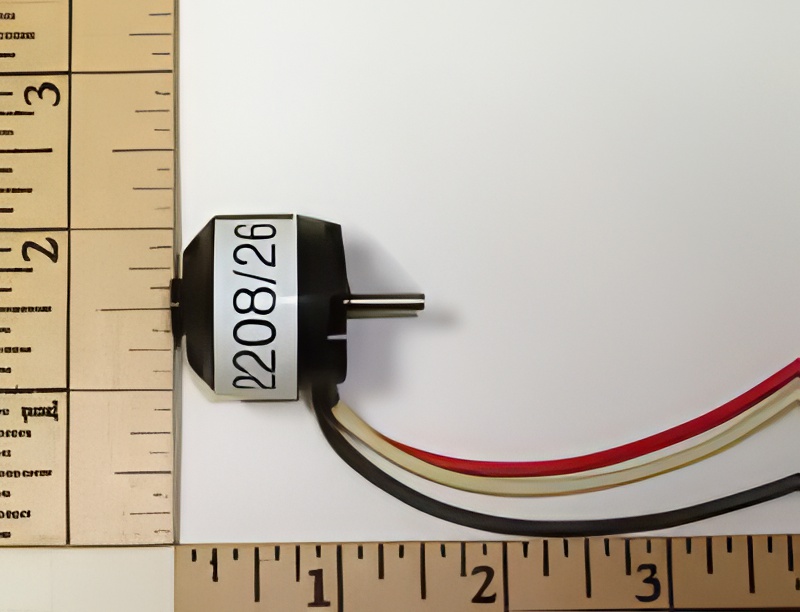

 "AXI 2208/26")

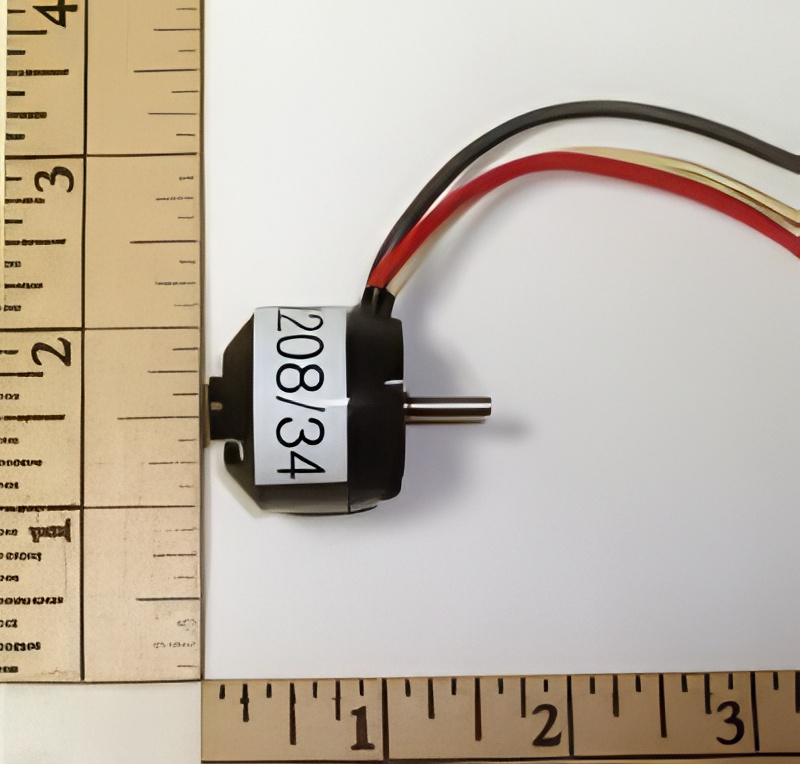

 "AXI 2208/34")

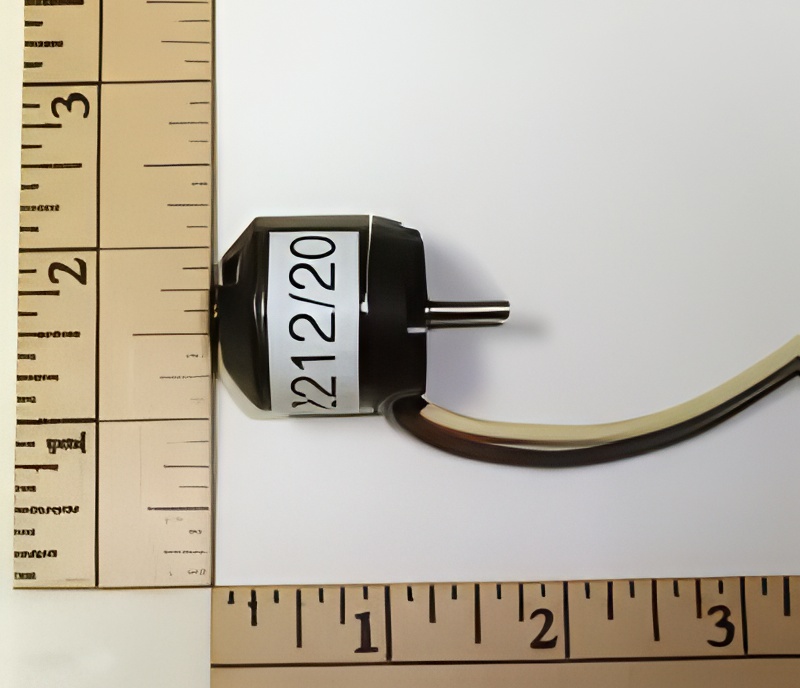

 "AXI 2212/20 Motor")

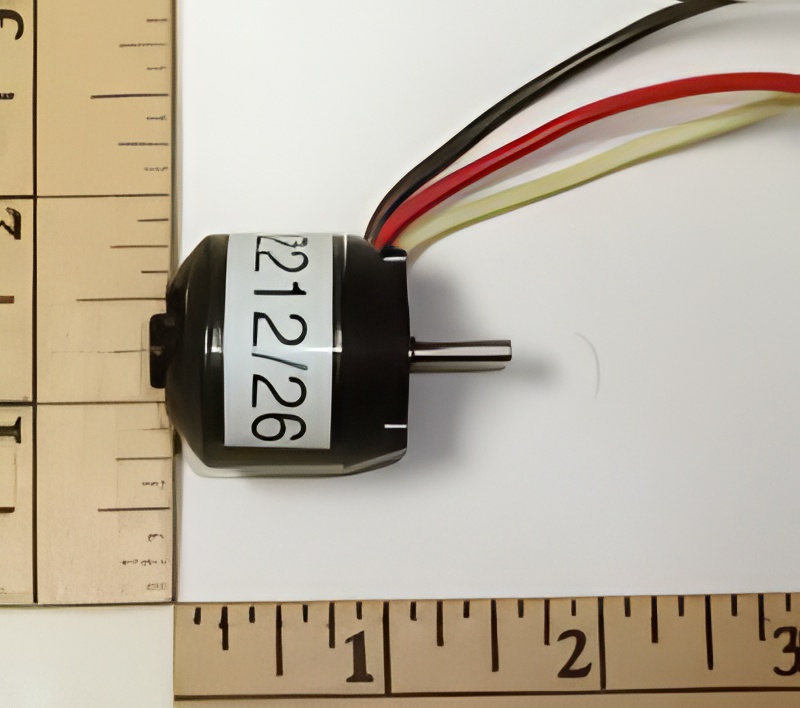

 "AXI 2212/26")
 "Model Motors Mini-AC Extreme 1215/9 With Gearbox")

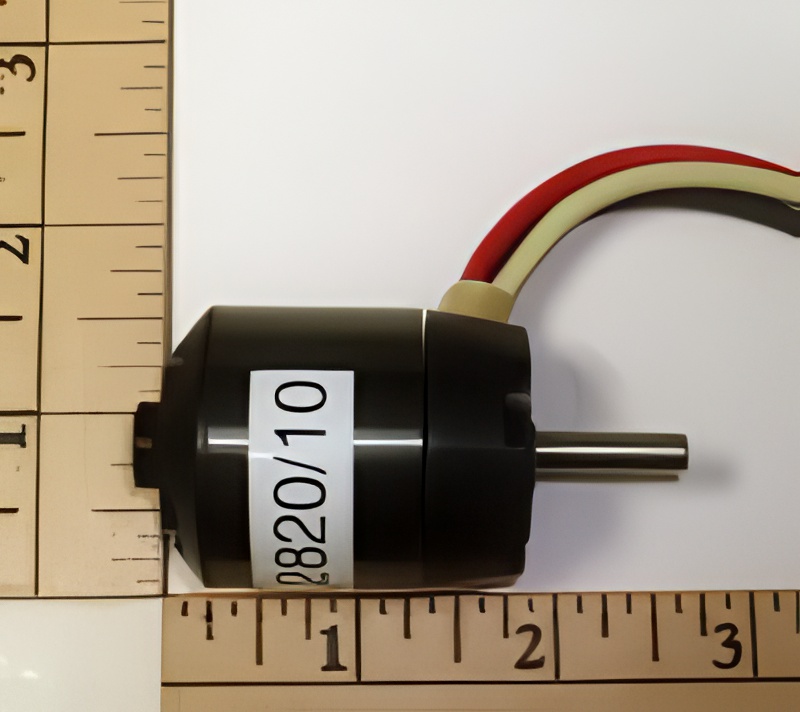

 "AXI 2820/10")

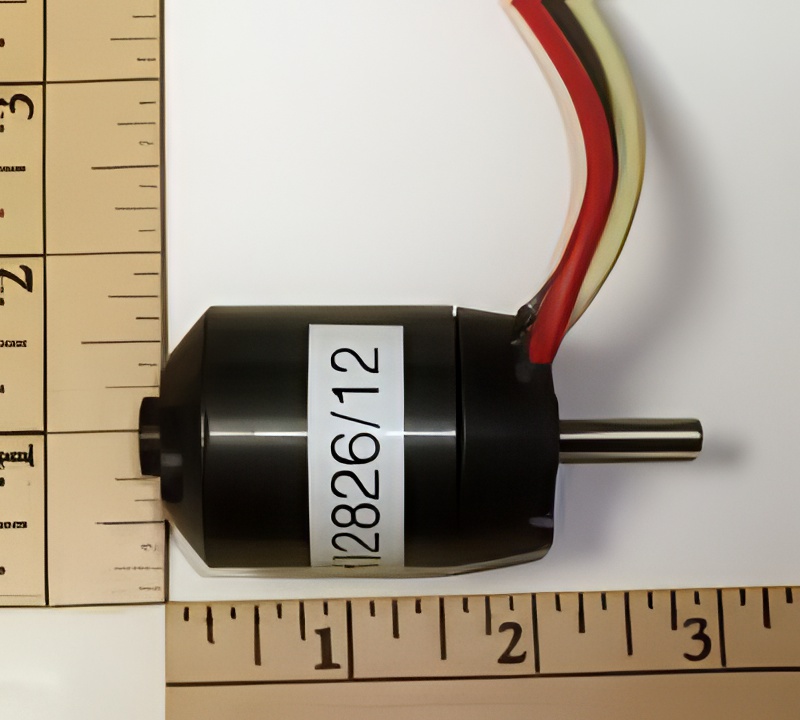

 "AXI 2826/12 Motor")
 "AXI 2826/10")

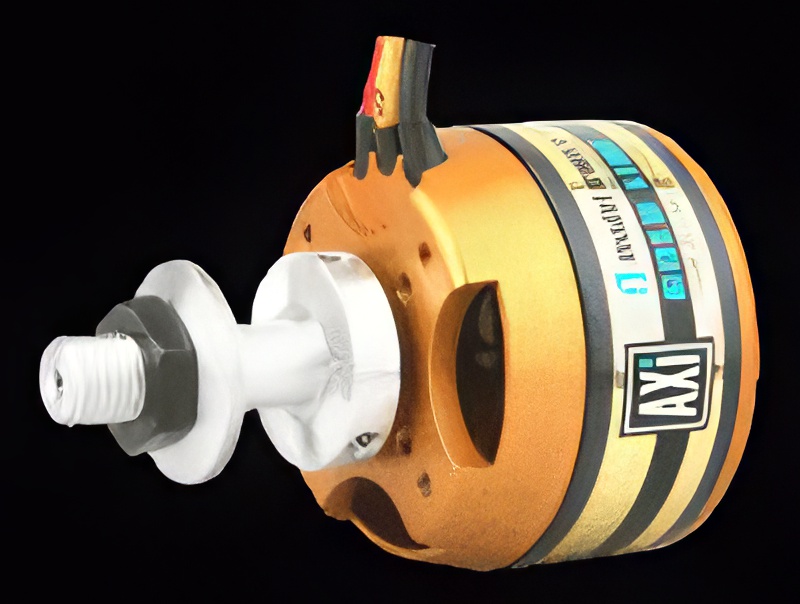

 "AXI 5320/28 249 KV Outrunner")
