Rod Stock Policy: In order to include long skinny products at our very favorable shipping rates: All USA orders that contain rod-stock items need to contain at least 6 rods. Rod stock is anything over 30". This would include Music Wire, Carbon Rods of any kind, larger Pushrod kits, brass or aluminum rods and anything else of that nature. Thinner items like carbon strips .5mm thick, sub 1mm diameter carbon rods and music wire .020 or thinner ordered in quantities less than 6 rods total will be shipped coiled. Unless otherwise stated, all carbon rod stock is pull-truded construction grade. The resin is heat cured as the fibers are pulled through a die of the proper shape. Sizes are approximate usually within 5%.
All pushrods are found here. Select by size sub category below or in left column under "Pushrods".
Sullivan Pull Cable Kit w/Fittings This is a pair of Kevlar-Aramid cables (12' long) used for pull-pull types of control linkages. Usually this is used with a bell crank. This cable is rated at over 100 pounds of strength. SKU Number: SUL521
Used to connect servo arms in the model to the model's control surfaces.
Made to tight tolerances to insure smooth operation with minimum friction.
Comes complete with Gold-N-Clevises and other installation hardware in standard thread sizes.
Nylon push rods made from a special compound to reduce thermal expansion and prevents radio interference.
Light, strong, and flexible.
The Yellow inner rod spline construction reduces friction and binding.
Each brass plated Gold-N-Clevis is constructed of tempered steel with an interlocking collar, welded pin, and an exclusive steel retaining clip to prevent accidental opening.
This has a Red sheath and a minimum bending radius of 2-1/2" making it good on small to medium aircraft or lightweight, medium strength applications.
Nylon and Carbon filled Gold-N-Rods feature an exclusive spline design that reduces friction and eliminates sensitivity to dirt, dust and moisture. They are very easy to install -- a threaded stud screws into the inner rod, and a clevis attaches to the other end of the stud -- and they are versatile, as they are unaffected by fuel. They can be used for any part of the control system, and are made in sizes and lengths to fit just about any application.
Clevises, studs and other hardware are included in all kits. To assemble, simply cut the pieces to length and glue or clamp (see hardware) the outer sheath in place. The threaded studs simply self-thread into the inner rod (easily done with a cordless drill) and the clevises thread onto the studs.
S576- Semi-Flexible Gold-N-Rod is manufactured to tight tolerances to insure smooth operation with minimum friction. Packaged complete with 2mm Gold-N-Clevises and other necessary hardware to make 2 complete 48" pushrods. Minimum suggested turning radius is 3-1/2".
48" - S576 Gold-N-Rod Semi-Flex. 48" Length. Minimum bend radius 3.5". 2 units per package.

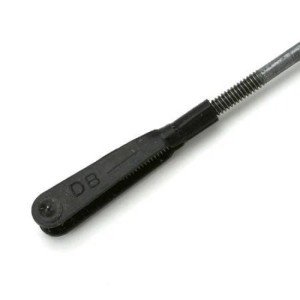

Complete assembly for any control linkage. Allows easy removal for on-the-field adjustments. Features 12 inch long .072 diameter (#306 - .093 diameter) rod with 3/4 inch 2-56 (#306 - 4-40) thread one end for adjustment, balance of wire is smooth, and Spring Steel Kwik Link and Spring Keeper. Use to build your own direct pushrods with solder on links, EZ links, L bends or Z bends in wire. Or use as components of wood pushrods.
 "Sullivan Pull Cable Kit w/Fittings")
 "Sullivan Flex Pushrod w/Gold-N-Clevis 48\" (2)")
 "Sullivan 2mm Gold-N-Rod Semi-Flexible")
 "Du-Bro 12\" 2-56 Pushrod with Spring Steel Kwik-Link Clevis 5PK")
