These sure-lock Black Nylon Kwik-Links are self threading nylon for 2MM (0.079") rods or threaded couplers. Ideal for replacements on imported A.R.F.'s and kits. Unit looks like nylon clevis 2nd from right except is black. SKU Number: DUB669
Comes with standard press on nylon and permanent steel press on retainer. Also equipped with socket head fastener to allow for tighter installations. Drilled to clamp onto 2-56 and 2mm rods. This brass connector has hex head to allow you to hold it while tightening. SKU Number: DUB608
GWS rack of 6 L bend ratainers. Simply bend an "L" into the end of your wire, put the eyelet of this retainer over the L end then clip the base over the leg of your wire. Perfect solution for quick and easy pushrod ends. SKU Number: GWPRH20AA
Comes with standard press on nylon and permanent steel press on retainer. Also equipped with socket head fastener to allow for tighter installations. Drilled to clamp onto 2-56 and 2mm rods so common in ARFS. SKU Number: DUB489
Gold-N-Clevises. These tempered steel clevises are the strongest clevises made. They feature an interlocking collar, welded pin and an exclusive steel retaining clip to prevent accidental opening. They are brass or tin plated for easy soldering.
(2) 2mm Clevises and Retaining Clips
FEATURES Heat treated tin plated spring steel Secure Retaining clips- prevents accidental openings Clevis can be soldered Interlocking collar with 2mm threads Clevis pin is welded into place for strength INCLUDES Two 2mm clevis Two retaining clips REQUIREMENTS Nothing COMMENTS Used to connect a 2mm pushrod to a control such as a control horn or throttle lever.
Four barrels, washers, nuts and set screws. Allen wrench not included, requires 1.5mm. Will work on any rod size 1.5 to 1.85mm (.074"). 2mm pushrods and 2-56 are usually this size or smaller. The threads are rolled and larger than the base wire diameter. Instal in 5/64" (1.9mm) hole. SKU Number: EZADJRE17
Four barrels, washers, nuts and set screws. Allen wrench not included, requires 1.5mm. Will work on any rod size 1.5 to 2mm (.079"). 2mm pushrods and 2-56 are usually this size or smaller. The threads are rolled and larger than the base wire diameter. Install in 7/64" (2.6mm) hole.
Clevis threads onto 2mm shaft. Metal clevis pins are 1mm od (.039). May also be used with micro size .032" drilled control horns with very minor increase in hold diameter. Very light weight design. 10 clevis and pins per package. Package of extra snap pins for this clevis is pn#MPJ2102.
Clevis threads onto 2mm shaft. Metal clevis pins are 1.6mm od (.063 1/16"). May also be used standard horns designed for typical 2-56 hardware. However, must be threaded onto a 2mm pushrod thread. Very light weight design. 10 clevis and pins per package. Extra snap pins are PN# MPJ2112.
Plastic Clevis, 44mm Length, Slot Width 3, Pin 2.5mm OD, M3 The clevises with a special metal snap pin are suitable for all types of exact connections of pushrods and control horns. The end of the metal snap pin with the lock minimizes the risk of a spontaneous loosening of fatigue due to vibration. Package contains the snap pins 2.5 mm dia. Spare snap pins MPJ 2123 BR. 10-Pack SKU Number: MPJ2125B

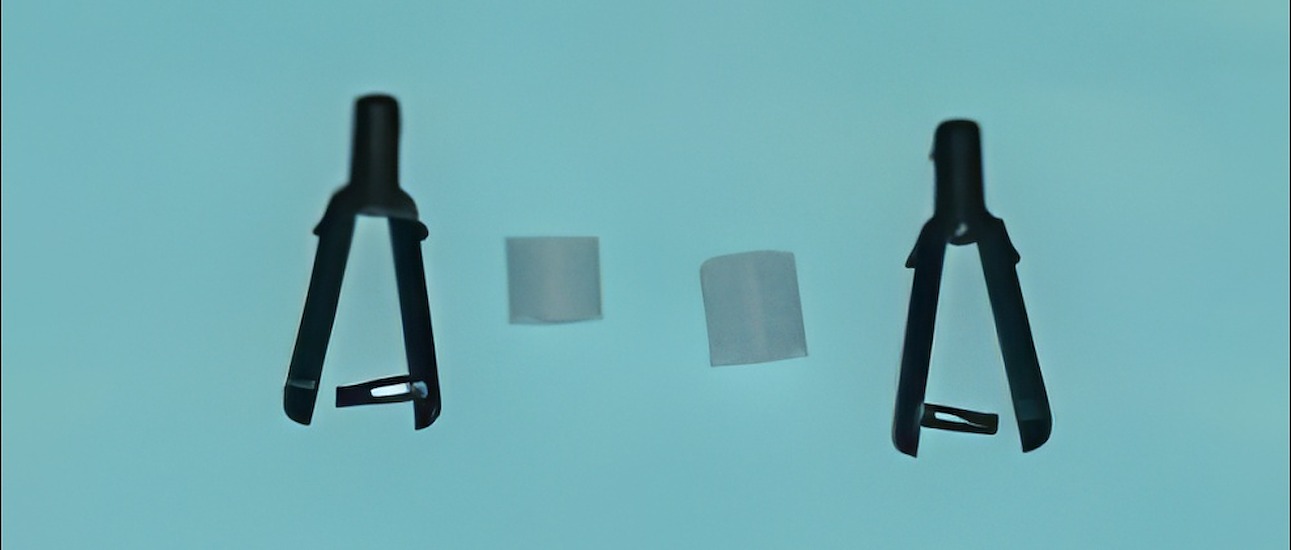

 "Du-Bro 2mm (0.079\") Nylon Kwik-Link (QTY/PKG: 2 )")
 "Du-Bro Kwik Grip E-Z Connector 2-56/2mm")
 "Du-Bro 4-40 Safety Lock Kwik-Link 12-Pack")
 "L Bend Retainers by GWS for .079\" (2mm) wire")
 "Du-Bro Heavy Duty E-Z Connector 2-56/2mm")
 "2mm Safety Lock Kwik-Link")

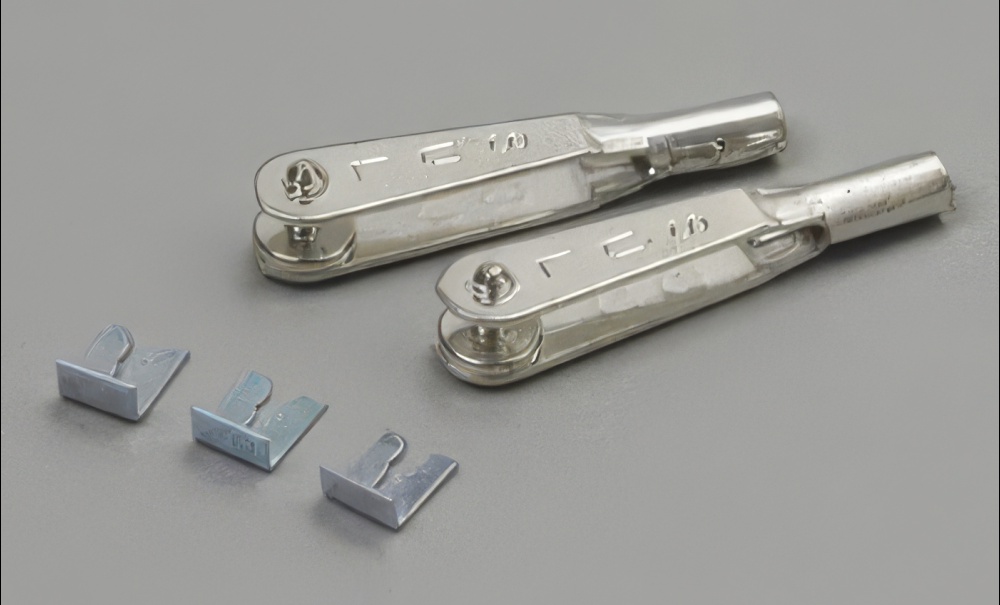

 "Sullivan 2mm Gold-N-Clevises")
 "1.5mm/2mm/2-56 EZ-A-Just Rod Ends up to 1.8mm shafts")
 "1.5mm/2mm/2-56 Heavy Duty EZ-A-Just Rod End up to 2mm Shafts")

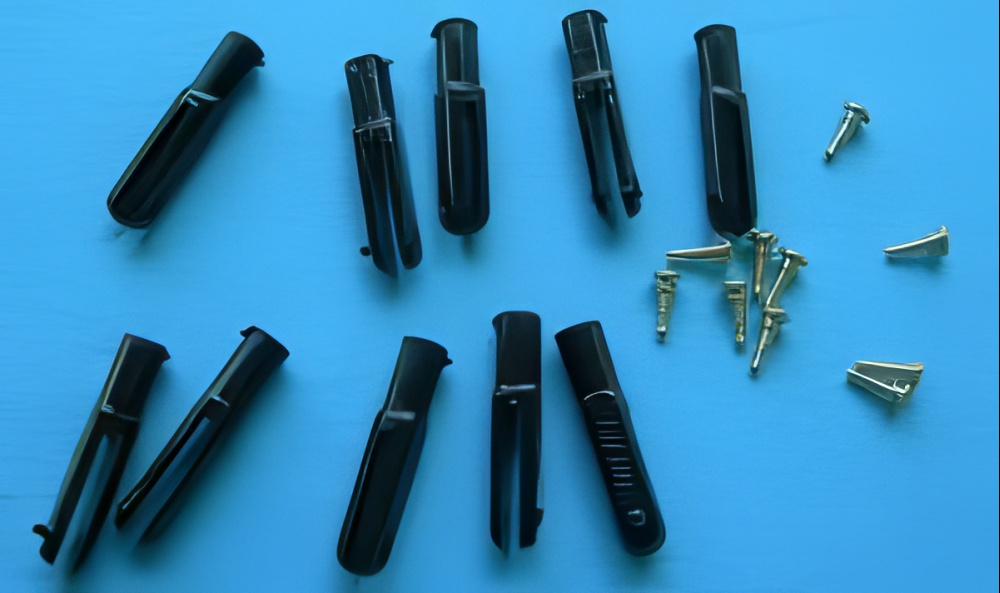

 "MP Jet Micro Clevis")

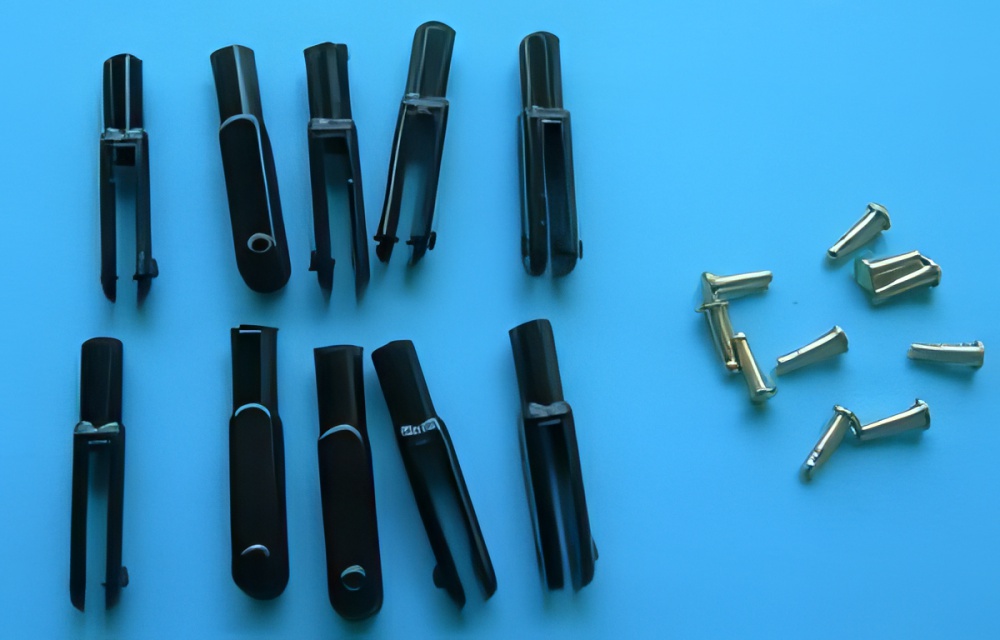

 "MP Jet Small Clevis")

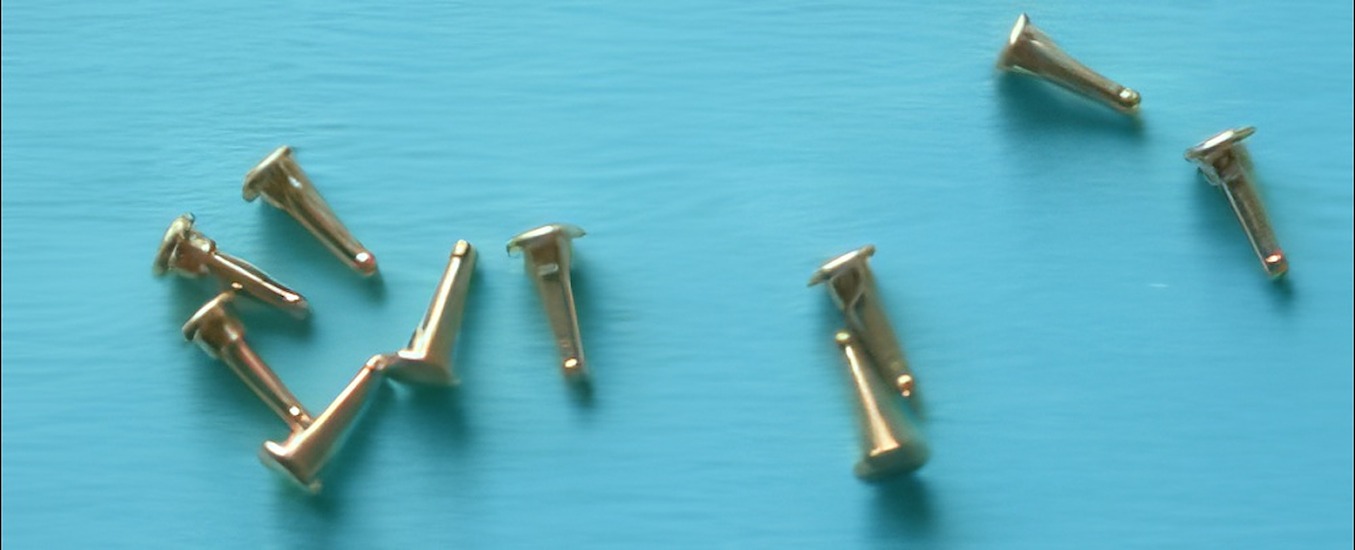

 "Brass Snap Pins for MP Jet Micro Clevis 10 Pack")

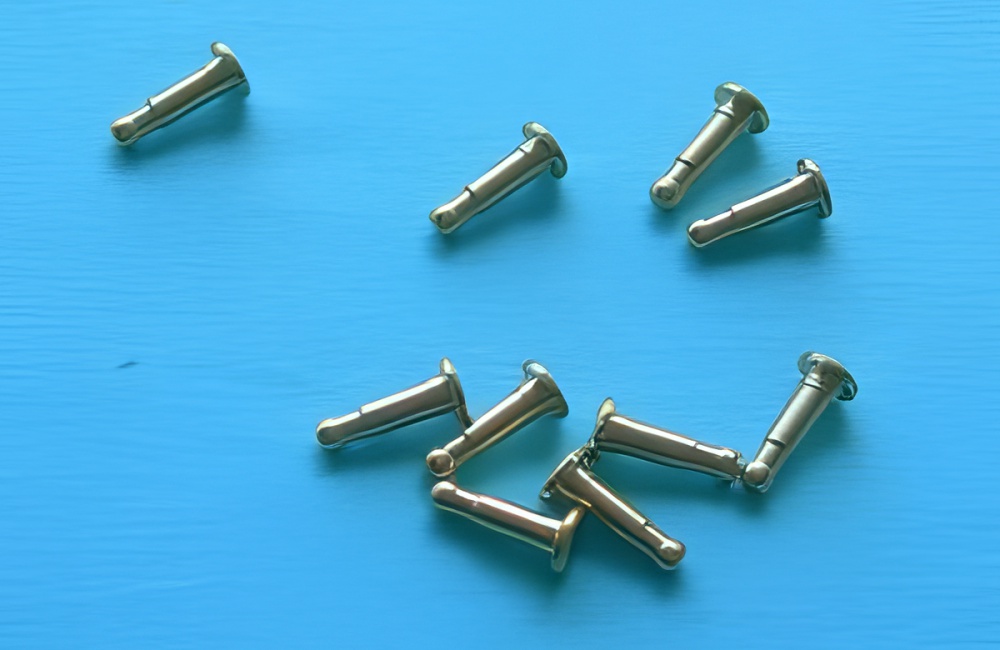

 "Snap Pins for MP Jet Small Clevis 10 Pack")
 "MP Jet Clevis for 2.5mm shaft")
